ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611-1911)

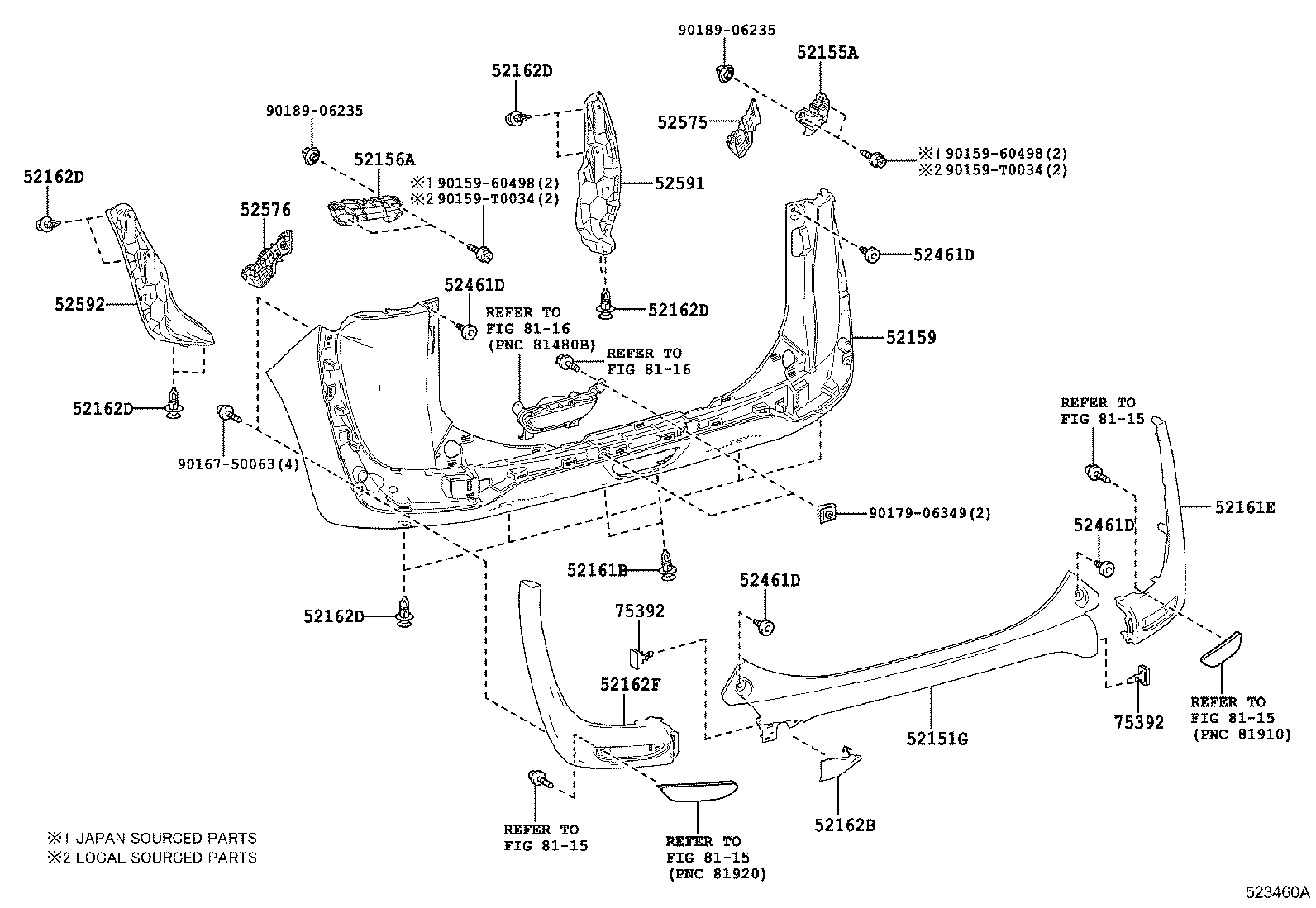

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52151G - EXTENSION, REAR BUMPER | ||||
| 52151-0D020 |
NSP170,ZSP170 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-0D210 |
NSP170,ZSP170 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-0D200 |
NSP170,ZSP170 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0U920 |
NSP170,ZSP170 PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-0K060 |
NSP170,ZSP170 |
2 | ||
| 52161E - EXTENSION, REAR BUMPER SIDE, RH | ||||
| 52161-0D080 |
NSP170,ZSP170 |
1 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-0D070 |
NSP170,ZSP170 |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-0K060 |
NSP170,ZSP170 |
12 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-0K060 |
NSP170,ZSP170 |
12 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-0K060 |
NSP170,ZSP170 |
12 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-0K060 |
NSP170,ZSP170 |
12 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-0K060 |
NSP170,ZSP170 |
12 | ||
| 52162F - EXTENSION, REAR BUMPER SIDE, LH | ||||
| 52162-0D060 |
NSP170,ZSP170 |
1 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NSP170,ZSP170 |
4 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NSP170,ZSP170 |
4 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NSP170,ZSP170 |
4 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NSP170,ZSP170 |
4 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-0D450 |
NSP170,ZSP170 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-0D440 |
NSP170,ZSP170 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-0D300 |
NSP170,ZSP170 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-0D300 |
NSP170,ZSP170 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
NSP170,ZSP170 |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
NSP170,ZSP170 |
2 | ||
| Common parts | ||||
| 90159-60498 | ||||
| 90159-T0034 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90189-06235 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8116 | ||||
