ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

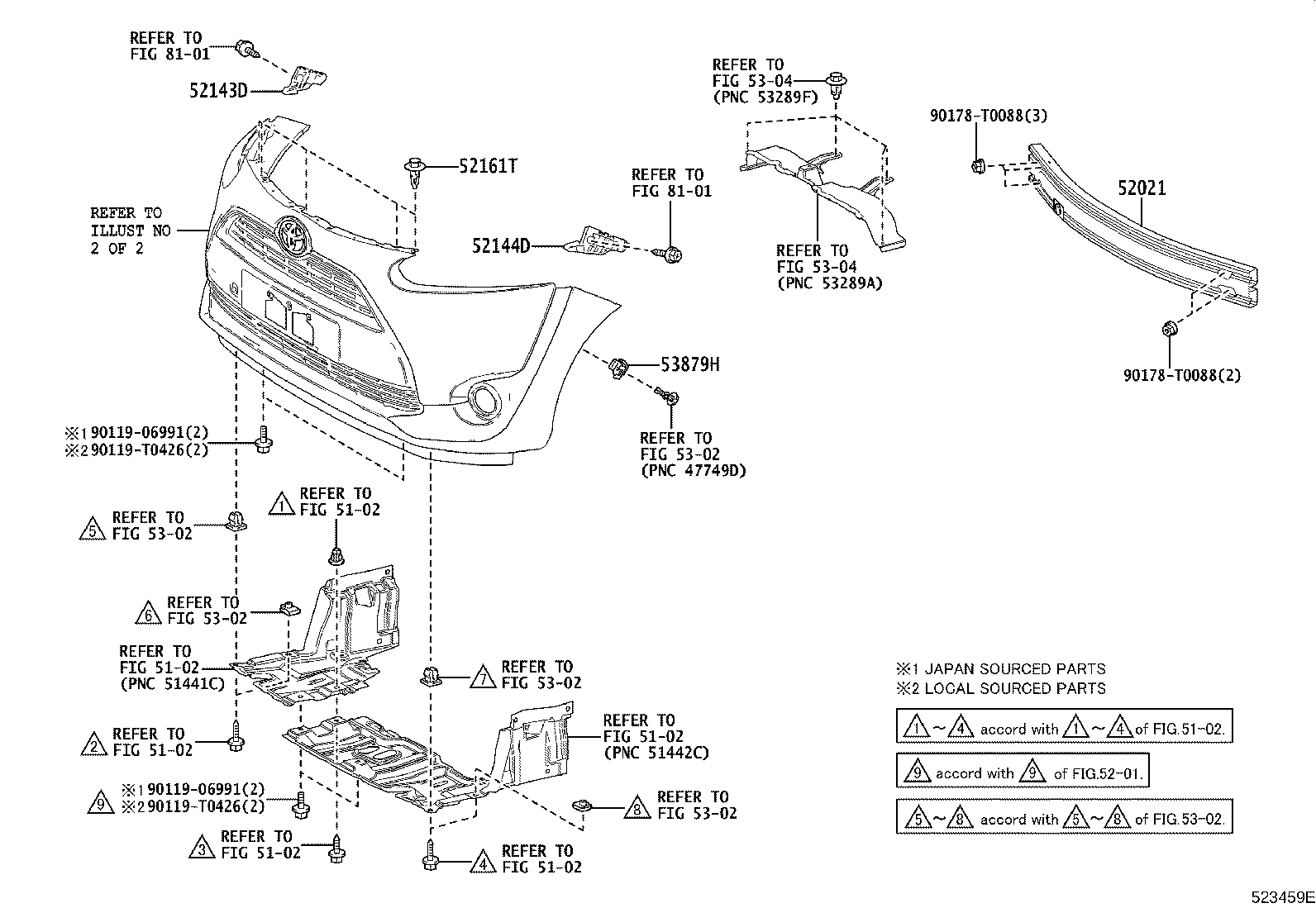

ILLUST NO. 1 OF 2(1611-1911)

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 5102 5102 52021 52143D 52144D 52161T 5302 5302 5302 5302 5302 5304 5304 53879H 8101 8101 9011906991 9011906991 90119T0426 90119T0426 90178T0088 90178T0088
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0D170

NSP170,ZSP170

 1
52143D - BRACKET, FRONT BUMPER SIDE, RH
52143-0D140

NSP170,ZSP170

 1
52144D - BRACKET, FRONT BUMPER SIDE, LH
52144-0D140

NSP170,ZSP170

 1
52161T - PIECE, FRONT BUMPER
52161-0K060

NSP170,ZSP170

 5
53879H - RETAINER, FRONT FENDER LINER
53879-0D080

NSP170,ZSP170

 2
Common parts
90119-06991
90119-T0426
90178-T0088
Linked diagrams
5102
5302
5304
8101

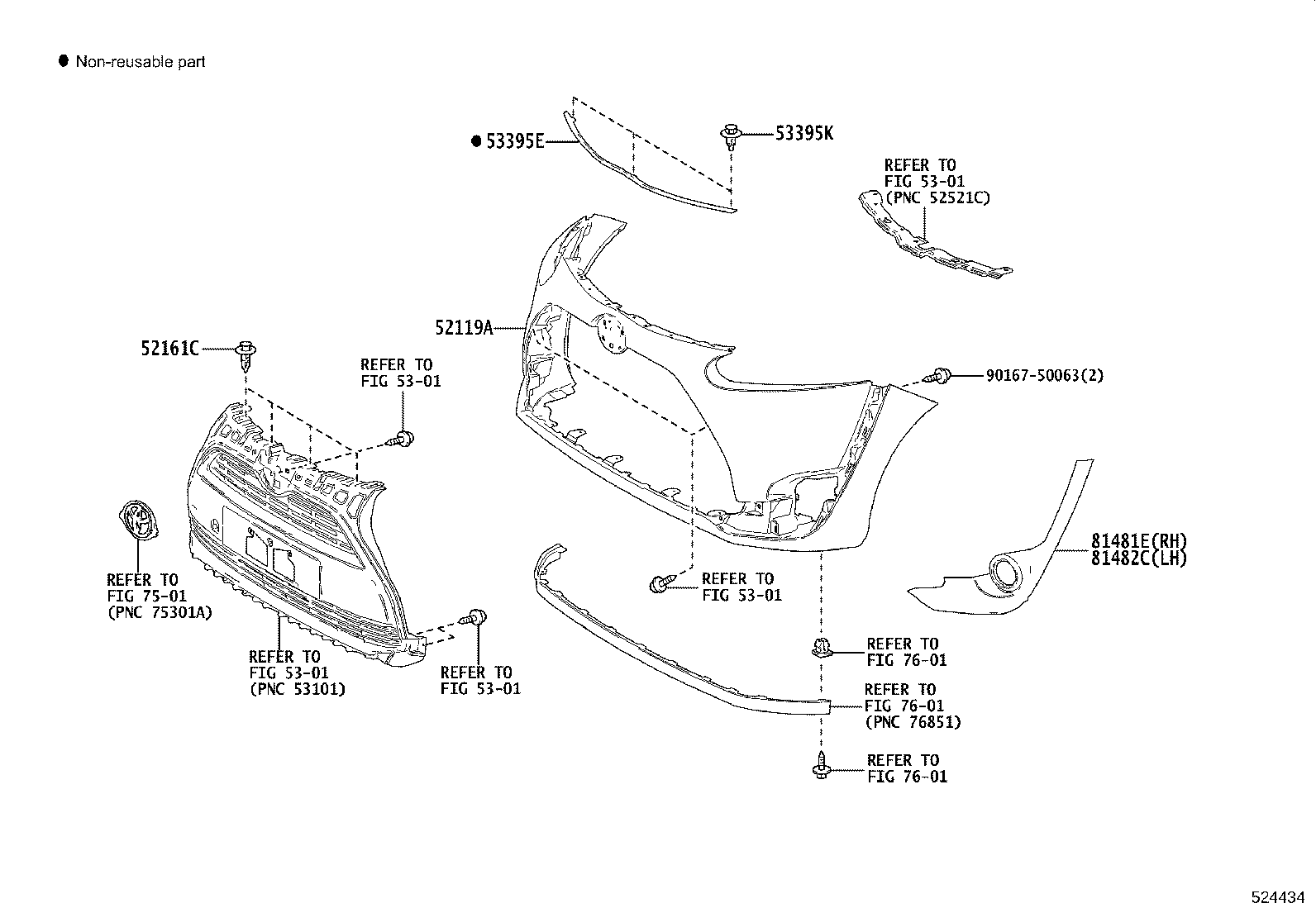

ILLUST NO. 2 OF 2(1611-1911)

Click highlighted areas on diagram

diagram 52119A 52161C 5301 5301 5301 5301 5301 53395E 53395K 7501 7601 7601 7601 81481E 81482C 9016750063
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-0U930

NSP170,ZSP170

PAINT REQ.

 1
52161C - PIECE, FRONT BUMPER
52161-0K060

NSP170,ZSP170

 4
53395E - SEAL, HOOD TO FRONT END PANEL
53395-0D070

NSP170,ZSP170

 1
53395K - CLIP(FOR HOOD TO FRONT END PANEL SEAL)
90467-05063C0

NSP170,ZSP170

BLACK

 3
81481E - COVER, FOG LAMP, RH
81481-0D320

NSP170,ZSP170

 1
81482C - COVER, FOG LAMP, LH
81482-0D300

NSP170,ZSP170

 1
Common parts
90167-50063
Linked diagrams
5301
7501
7601
