ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611-1911)

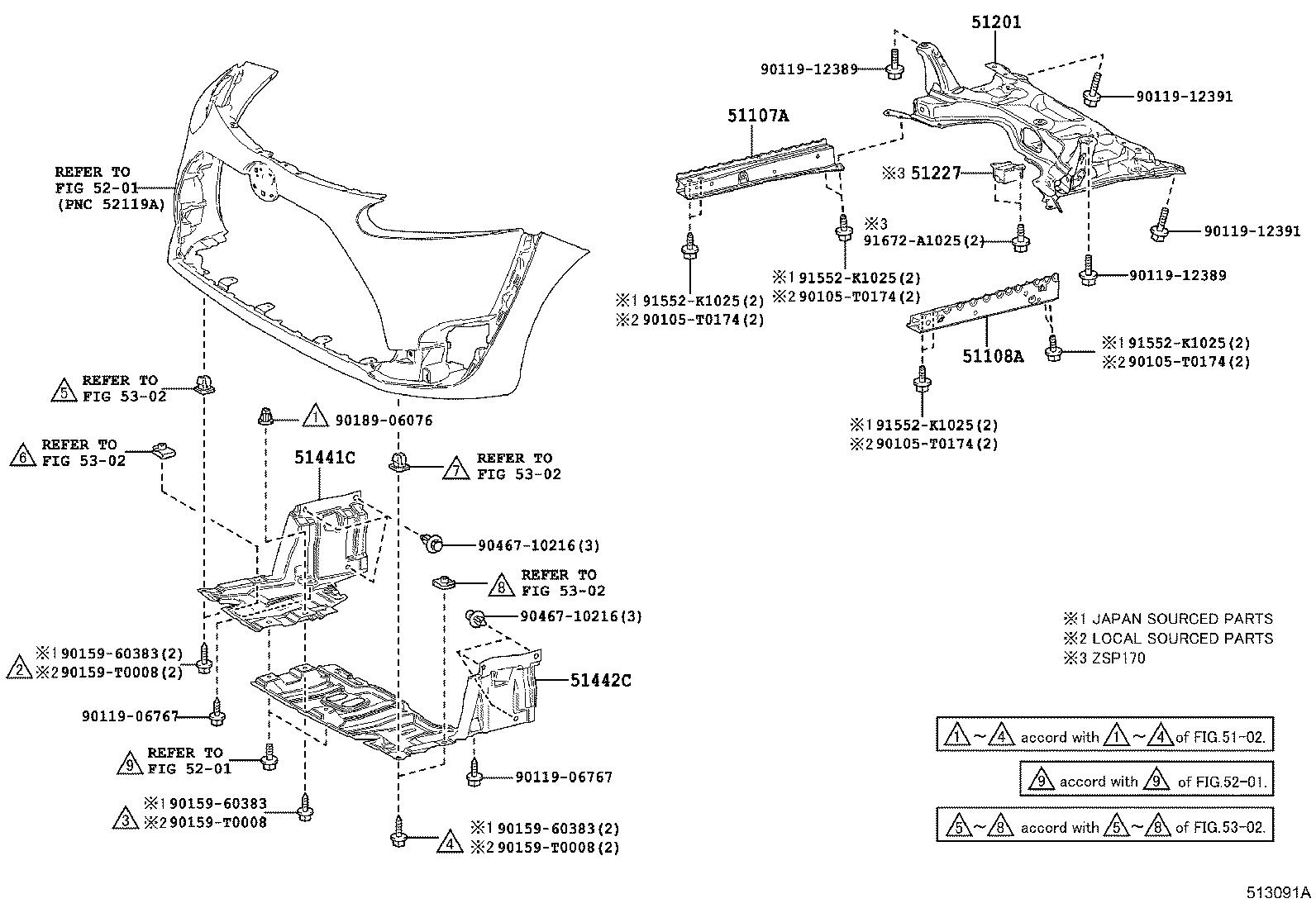

Click highlighted areas on diagram

diagram 51107A 51108A 51201 51227 51441C 51442C 5201 5201 5302 5302 5302 5302 90105T0174 90105T0174 90105T0174 90105T0174 9011906767 9011906767 9011912389 9011912389 9011912391 9011912391 9015960383 9015960383 9015960383 90159T0008 90159T0008 90159T0008 9018906076 9046710216 9046710216 91552K1025 91552K1025 91552K1025 91552K1025 91672A1025
Part # Description Qty Price
51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51107-0D020

NSP170,ZSP170

 1
51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51108-0D020

NSP170,ZSP170

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-0D130

NSP170,ZSP170

 1
51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227-52070

ZSP170

 1
51441C - COVER, ENGINE UNDER, RH
51441-0D420

NSP170,ZSP170

 1
51442C - COVER, ENGINE UNDER, LH
51442-0D230

NSP170,ZSP170

 1
Common parts
90105-T0174
90119-06767
90119-12389
90119-12391
90159-60383
90159-T0008
90189-06076
90467-10216
91552-K1025
91672-A1025
Linked diagrams
5201
5302
