ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

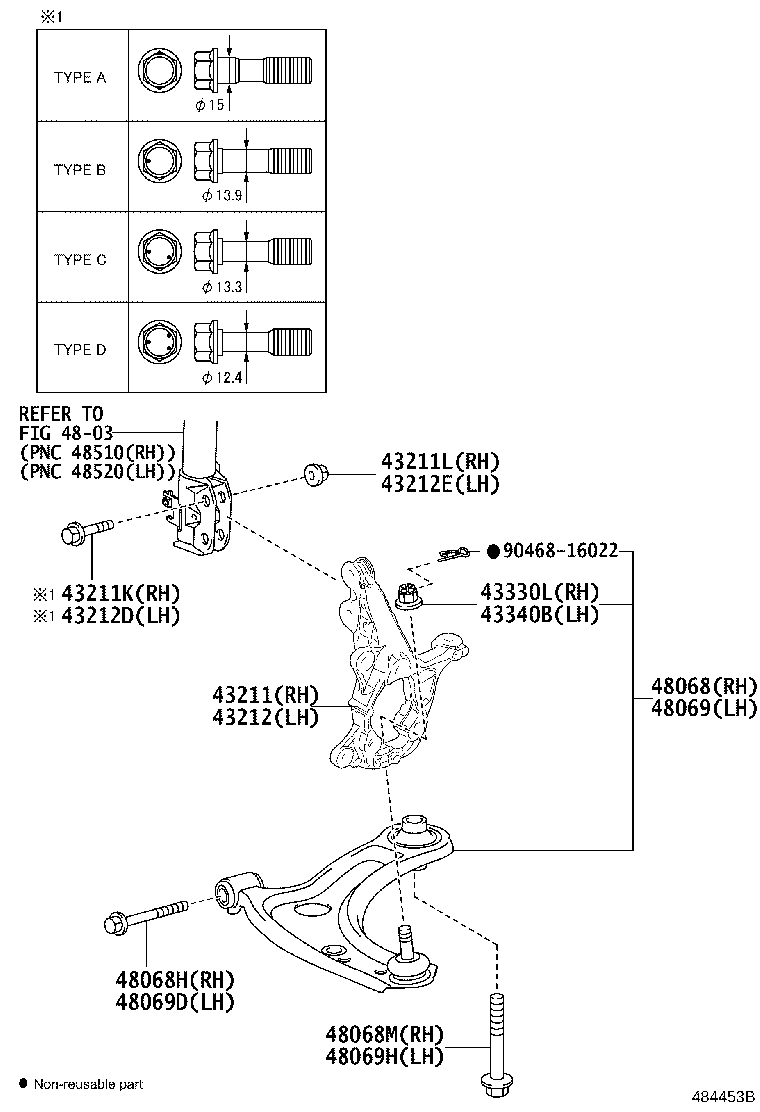

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330L 43340B 4803 48068 48068H 48068M 48069 48069D 48069H 9046816022
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-0D260

NSP170,ZSP170

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90109-15001

NSP170,ZSP170

OD=15,(J),TYPE A:REF ILL.

 2
90109-15002

NSP170,ZSP170

OD=13.9,TYPE B:REFER ILLUST.

 2
90109-15003

NSP170,ZSP170

OD=13.3,TYPE C:REFER ILLUST.

 2
90109-15004

NSP170,ZSP170

OD=12.4,TYPE D:REFER ILLUST.

 2
90105-T0190

NSP170,ZSP170

OD=15,(L),TYPE A:REF ILL.

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-T0069

NSP170,ZSP170

(L)

 2
90179-15004

NSP170,ZSP170

(J)

 2
43212 - KNUCKLE, STEERING, LH
43212-0D260

NSP170,ZSP170

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90109-15001

NSP170,ZSP170

OD=15,(J),TYPE A:REF ILL.

 2
90109-15002

NSP170,ZSP170

OD=13.9,TYPE B:REFER ILLUST.

 2
90109-15003

NSP170,ZSP170

OD=13.3,TYPE C:REFER ILLUST.

 2
90105-T0190

NSP170,ZSP170

OD=15,(L),TYPE A:REF ILL.

 2
90109-15004

NSP170,ZSP170

OD=12.4,TYPE D:REFER ILLUST.

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-15004

NSP170,ZSP170

(J)

 2
90178-T0069

NSP170,ZSP170

(L)

 2
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-12007

NSP170,ZSP170

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-12007

NSP170,ZSP170

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-09270

NSP170,ZSP170

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-T0596

NSP170,ZSP170

 1
90119-T0353

NSP170,ZSP170

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-T0597

NSP170,ZSP170

 1
90119-14147

NSP170,ZSP170

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-09280

NSP170,ZSP170

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-T0353

NSP170,ZSP170

 1
90119-T0596

NSP170,ZSP170

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-T0597

NSP170,ZSP170

 1
90119-14147

NSP170,ZSP170

 1
Common parts
90468-16022
Linked diagrams
4803
