ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

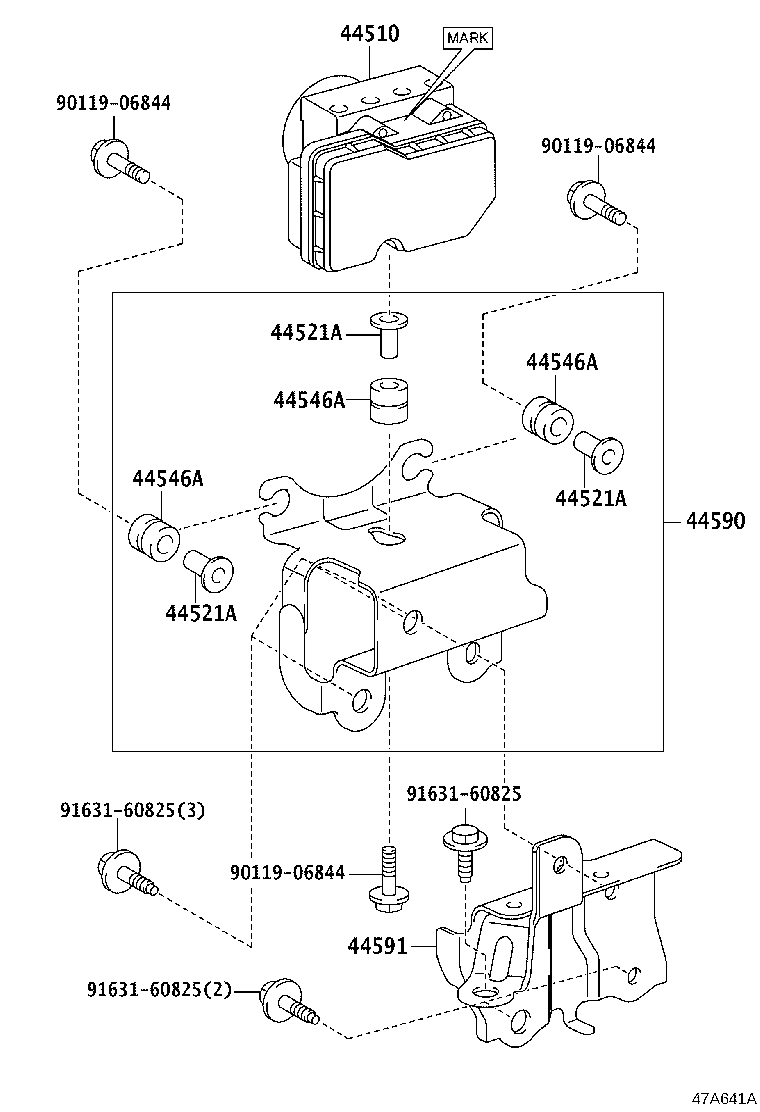

ILLUST NO. 2 OF 2(1611- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0D700 |
ZSP170 |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-02080 |
NSP170,ZSP170 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-02080 |
NSP170,ZSP170 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-02080 |
NSP170,ZSP170 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NSP170,ZSP170 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NSP170,ZSP170 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NSP170,ZSP170 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0D480 |
ZSP170 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-0D280 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 91631-60825 | ||||

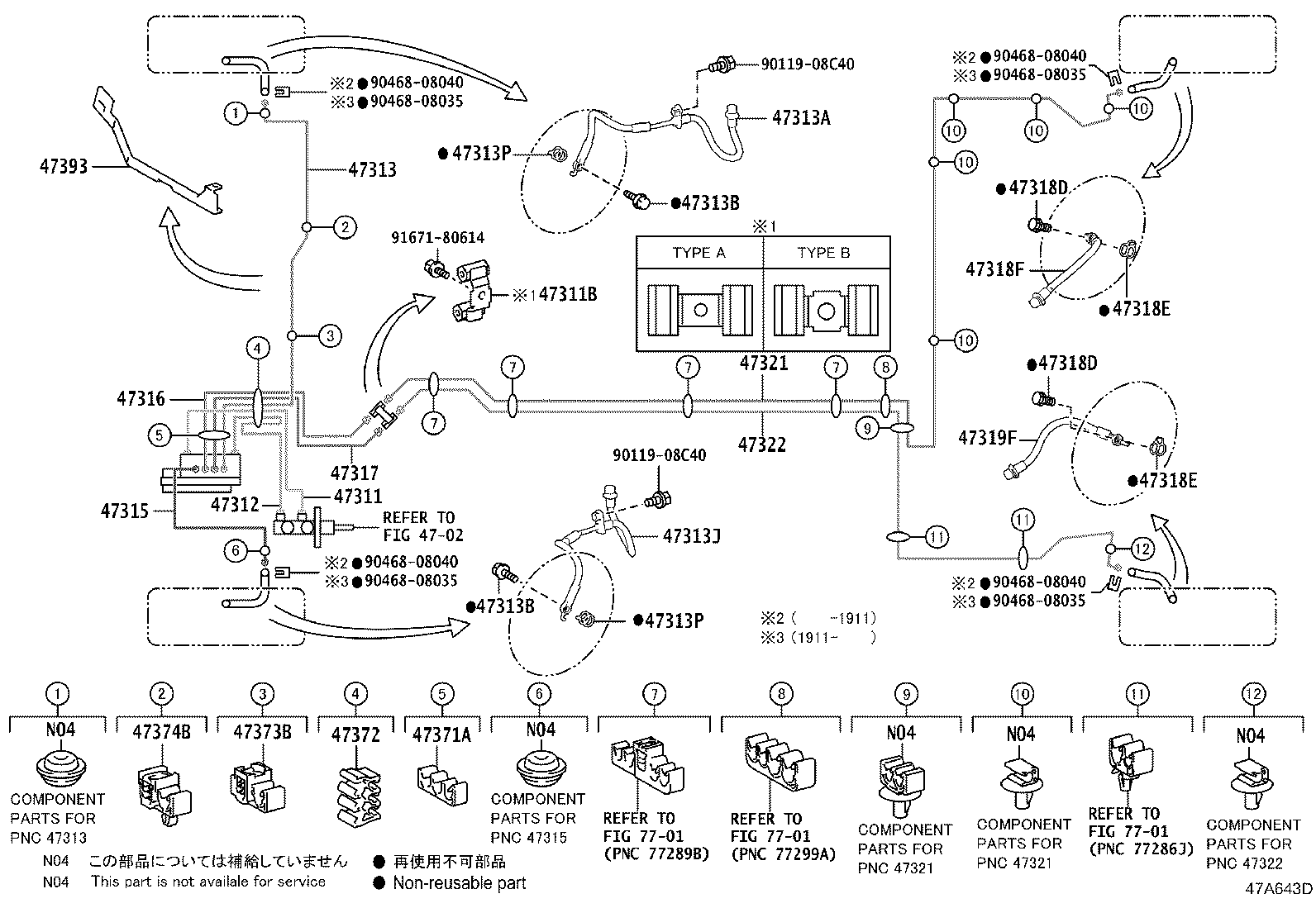

ILLUST NO. 1 OF 2(1611- )ZSP170 ; (1911- )NSP170
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D860 |
ZSP170 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NSP170,ZSP170 TYPE A:REFER ILLUST. |
1 | ||
| 90412-10285 |
NSP170,ZSP170 TYPE B:REFER ILLUST. |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D790 |
ZSP170 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0D750 |
ZSP170 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2119 |
NSP170,ZSP170 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NSP170,ZSP170 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NSP170,ZSP170 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2120 |
NSP170,ZSP170 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NSP170,ZSP170 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NSP170,ZSP170 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D730 |
ZSP170 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0D640 |
ZSP170 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0D640 |
ZSP170 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NSP170,ZSP170 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NSP170,ZSP170 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
NSP170,ZSP170 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
NSP170,ZSP170 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-T2117 |
NSP170,ZSP170 |
1 | ||
| 90947-T2158 |
NSP170,ZSP170 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-T2158 |
NSP170,ZSP170 |
1 | ||
| 90947-T2117 |
NSP170,ZSP170 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D320 |
NSP170,ZSP170 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D320 |
NSP170,ZSP170 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00857 |
NSP170,ZSP170 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D98 |
ZSP170 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D90 |
ZSP170 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D89 |
ZSP170 |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-0D030 |
ZSP170 |
1 | ||
| Common parts | ||||
| 90119-08C40 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
