ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

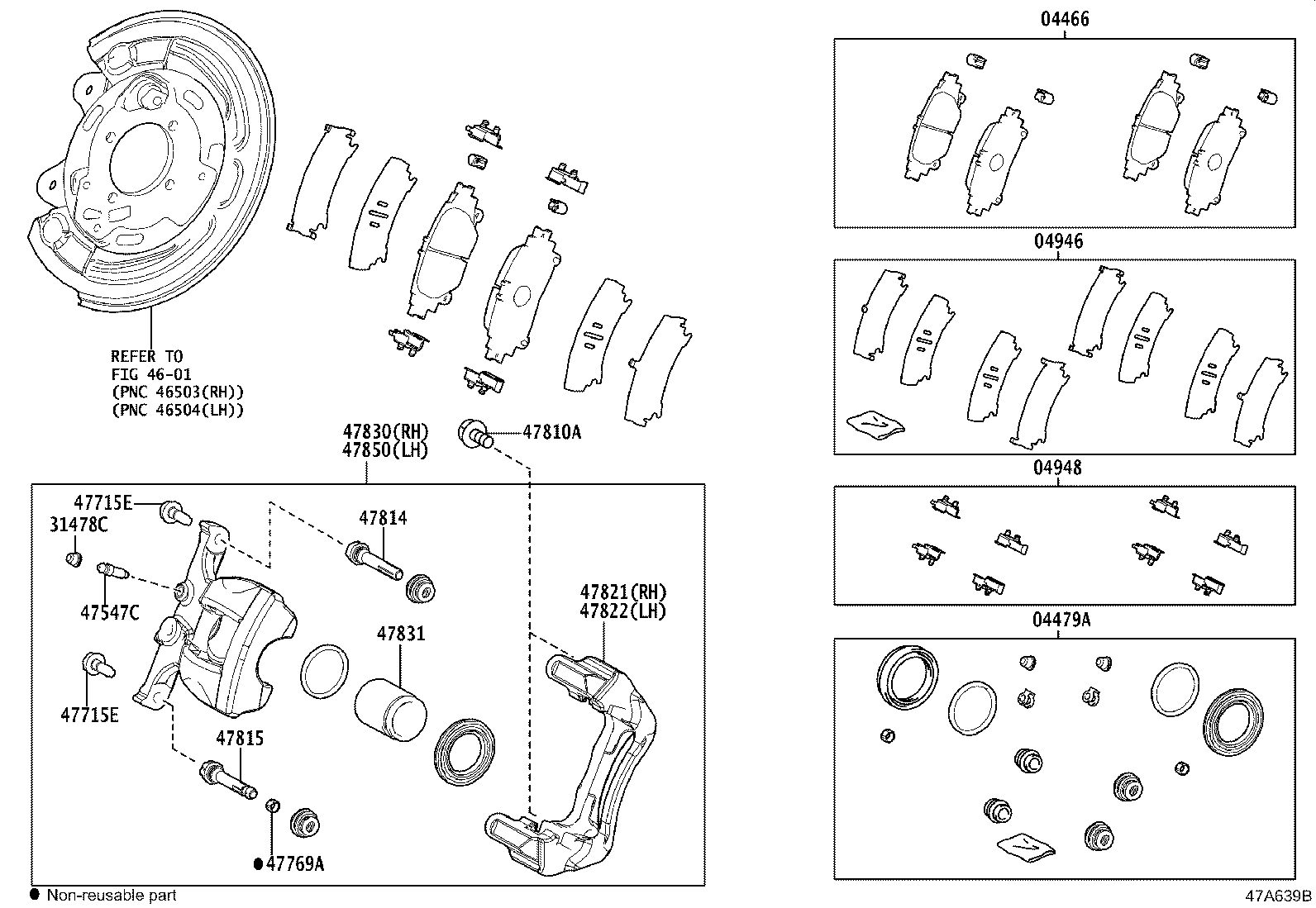

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4601 47547C 47715E 47715E 47769A 47810A 47814 47815 47821 47822 47830 47831 47850
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-52180

NSP170,ZSP170

MARK AK PA561

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-0D060

NSP170,ZSP170

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-0D010

NSP170,ZSP170

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-30240

NSP170,ZSP170

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

NSP170,ZSP170

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

NSP170,ZSP170

 2
47715E - BOLT(FOR REAR DISC BRAKE CYLINDER SLIDE)
90080-10247

NSP170,ZSP170

 4
47715E - BOLT(FOR REAR DISC BRAKE CYLINDER SLIDE)
90080-10247

NSP170,ZSP170

 4
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47879-33240

NSP170,ZSP170

 2
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-12430

NSP170,ZSP170

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47814-0D060

NSP170,ZSP170

 2
47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47815-0D060

NSP170,ZSP170

 2
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-0D060

NSP170,ZSP170

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-0D060

NSP170,ZSP170

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-0D060

NSP170,ZSP170

 1
47831 - PISTON, REAR DISC BRAKE
47831-30330

NSP170,ZSP170

 2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-0D060

NSP170,ZSP170

 1
Linked diagrams
4601
