ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

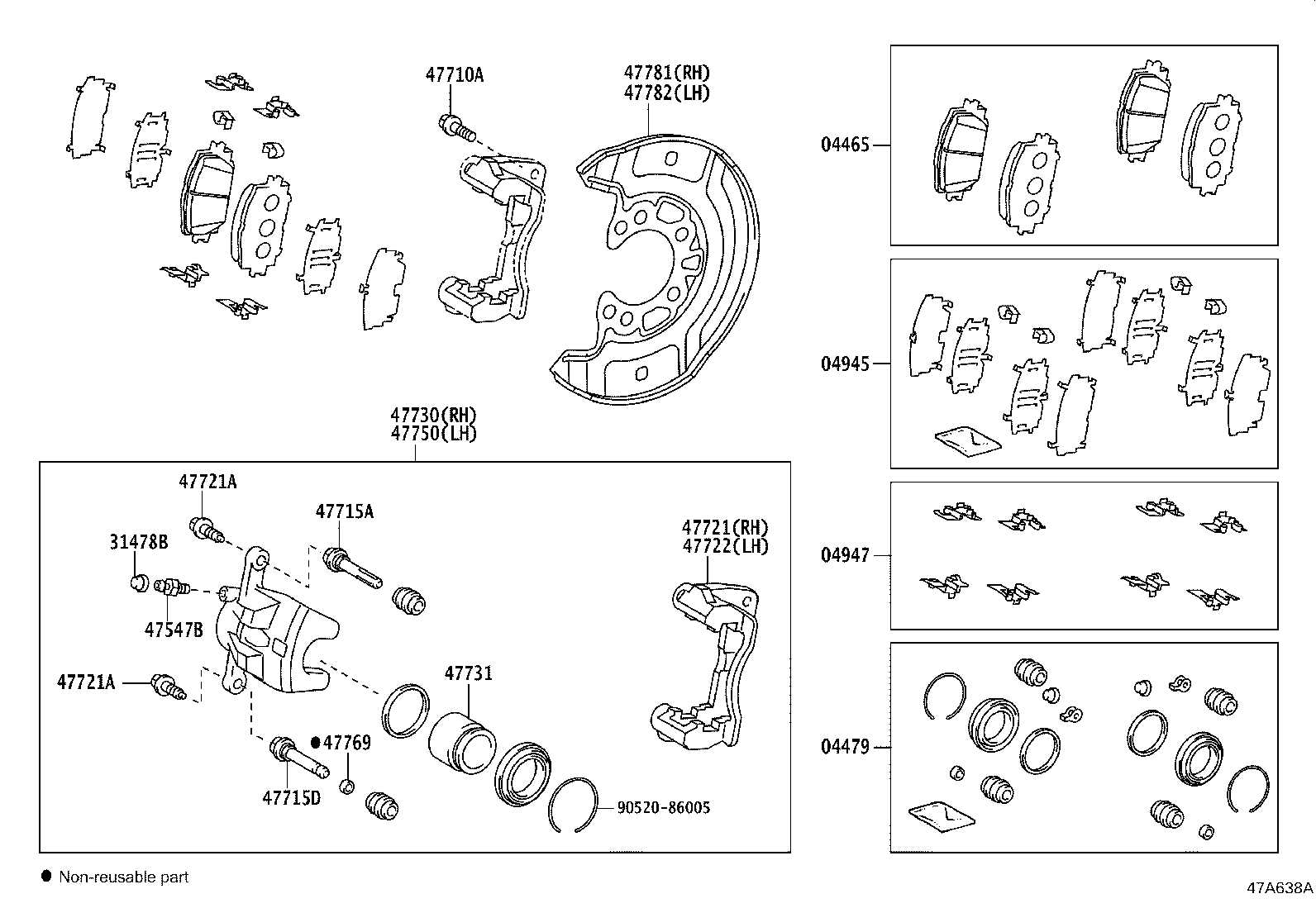

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715D 47721 47721A 47721A 47722 47730 47731 47750 47769 47781 47782 9052086005
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-02220

NSP170,ZSP170

MARK ADVICS PV565H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-02310

NSP170,ZSP170

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-02190

NSP170,ZSP170

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-42050

NSP170,ZSP170

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

NSP170,ZSP170

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

NSP170,ZSP170

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

NSP170,ZSP170

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47714-06250

NSP170,ZSP170

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-06250

NSP170,ZSP170

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-0D290

NSP170,ZSP170

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90080-10247

NSP170,ZSP170

*8-1.00PX23-15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90080-10247

NSP170,ZSP170

*8-1.00PX23-15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-0D280

NSP170,ZSP170

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0D290

NSP170,ZSP170

 1
47731 - PISTON, FRONT DISC BRAKE
47731-12A10

NSP170,ZSP170

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0D280

NSP170,ZSP170

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-06030

NSP170,ZSP170

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-0D190

NSP170,ZSP170

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47781-0D190

NSP170,ZSP170

 1
Common parts
90520-86005
