ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )ZSP170

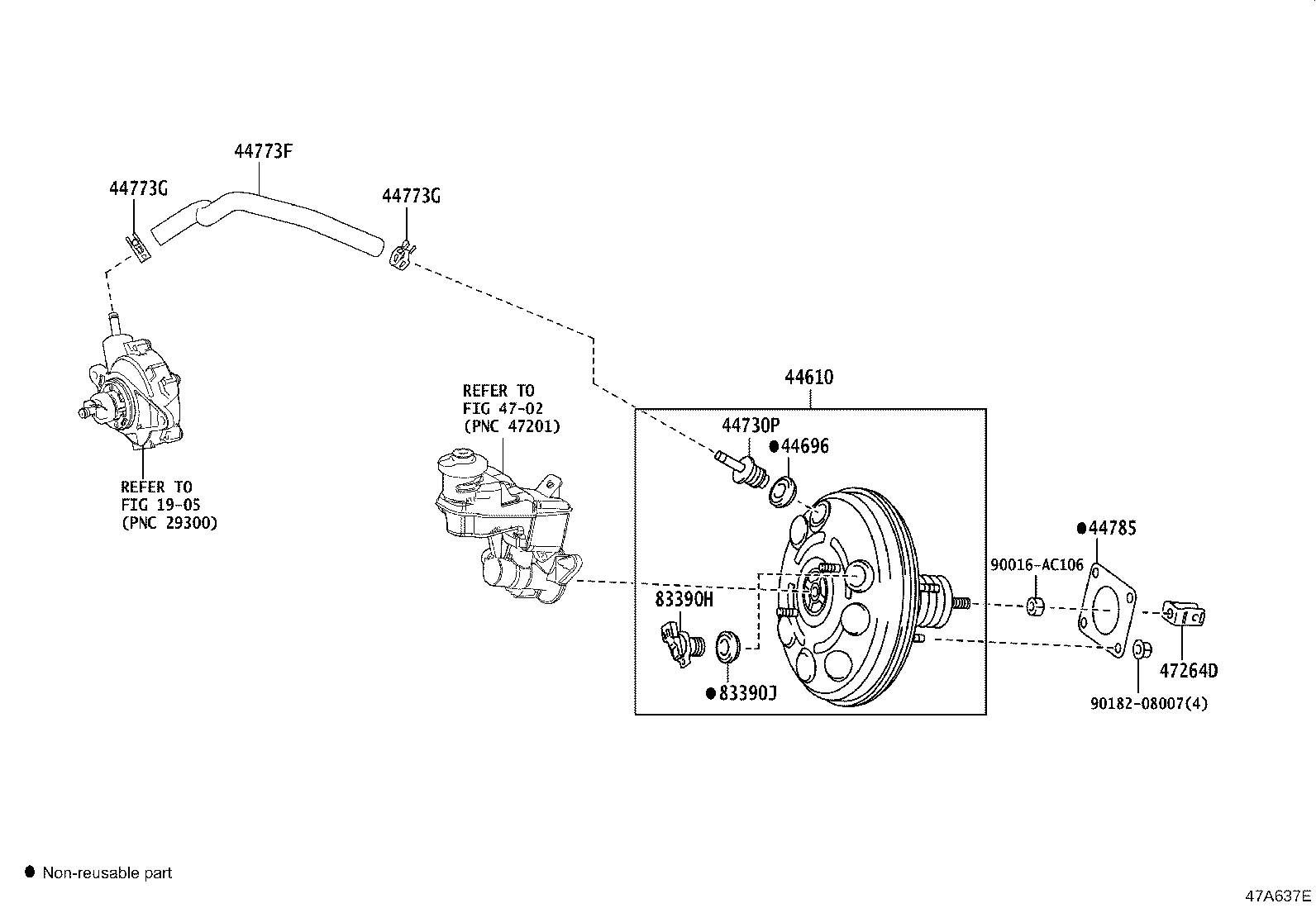

Click highlighted areas on diagram

diagram 1905 44610 44696 44730P 44773F 44773G 44773G 44785 4702 47264D 83390H 83390J 90016AC106 9018208007
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0DA50

ZSP170

 1
44696 - GROMMET, CHECK VALVE
90480-24439

ZSP170

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-30060

ZSP170

 1
44730-20080

ZSP170

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-0D060

ZSP170

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

ZSP170

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

ZSP170

 2
44785 - GASKET, BRAKE BOOSTER
44785-16020

NSP170,ZSP170

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0D090

NSP170,ZSP170

 1
83390H - SWITCH ASSY, VACUUM WARNING
83390-28120

ZSP170

 1
83390J - GROMMET, VACUUM WARNING SWITCH
90480-24439

ZSP170

 1
Common parts
90016-AC106
90182-08007
Linked diagrams
1905
4702
