ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

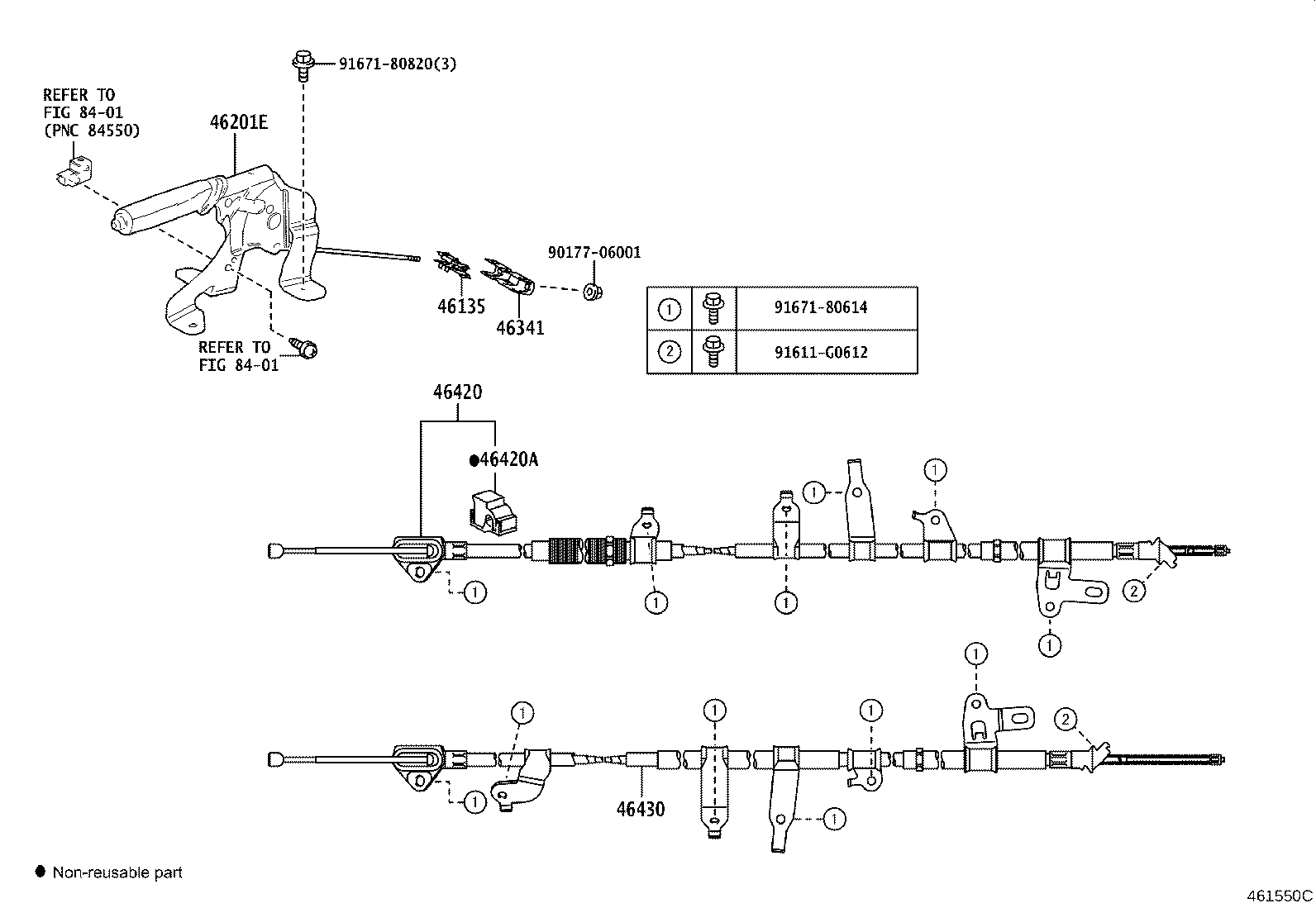

ILLUST NO. 1 OF 2(1611- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-0D040 |
NSP170,ZSP170 |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-0D530C0 |
ZSP170..Q,U BLACK,TRIM0#,2# |
1 | ||
| 46201-0D380C0 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-0D080 |
NSP170,ZSP170 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-0D321 |
NSP170,ZSP170 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46402-52060 |
NSP170,ZSP170 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-0D321 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90177-06001 | ||||
| 91611-G0612 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1611- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-0D030 |
NSP170,ZSP170 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-0D030 |
NSP170,ZSP170 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-0M010 |
NSP170,ZSP170 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46540-0M010 |
NSP170,ZSP170 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90016-DY020 |
NSP170,ZSP170 |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90016-DY017 |
NSP170,ZSP170 |
2 | ||
| 46550K - SPRING, TENSION, UPPER RR, RH(FOR PARKING BRAKE SHOE RE | ||||
| 90016-DY018 |
NSP170,ZSP170 |
1 | ||
| 46550L - SPRING, TENSION, UPPER RR, LH(FOR PARKING BRAKE SHOE RE | ||||
| 90016-DY019 |
NSP170,ZSP170 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-0M010 |
NSP170,ZSP170 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46540-0M010 |
NSP170,ZSP170 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 46605-0M020 |
NSP170,ZSP170 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 46606-0M020 |
NSP170,ZSP170 |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 46555-0M020 |
NSP170,ZSP170 |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 46555-0M020 |
NSP170,ZSP170 |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-0D050 |
NSP170,ZSP170 |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-0D050 |
NSP170,ZSP170 |
4 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 46601-0M020 |
NSP170,ZSP170 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 46602-0M020 |
NSP170,ZSP170 |
1 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 46612-0M020 |
NSP170,ZSP170 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 46612-0M020 |
NSP170,ZSP170 |
1 | ||
