ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

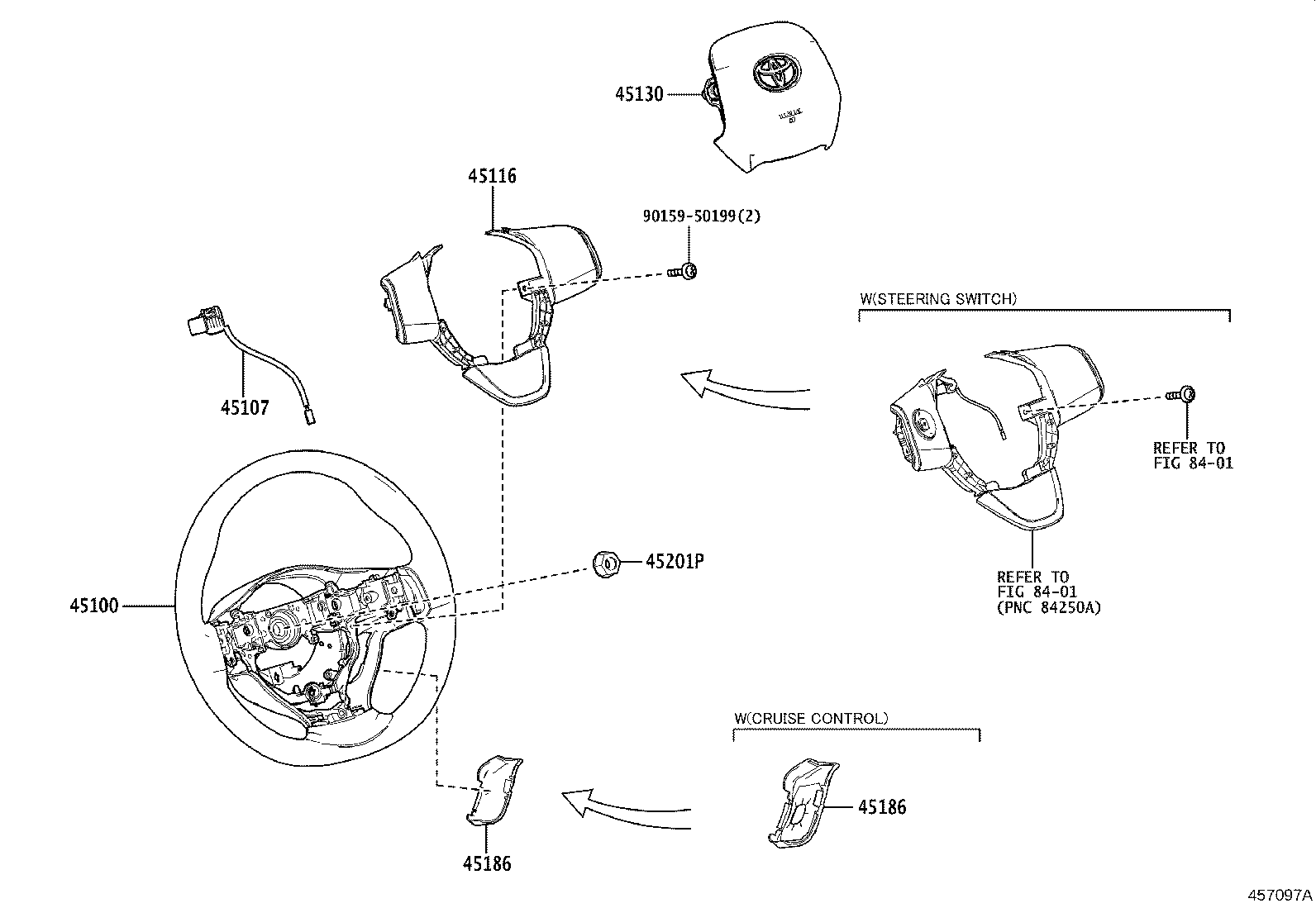

Click highlighted areas on diagram

diagram 45100 45107 45116 45130 45186 45186 45201P 8401 8401 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0D710C0

ZSP170..Q,U

3-SPOKE,URETHANE,BLACK,TRIM0#,2#

 1
45100-0D580C0

ZSP170..N

3-SPOKE,URETHANE,BLACK,TRIM0#,2#

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-0D230C0

ZSP170..N

PIANOBLACK_22BK22,TRIM0#,2#

 1
45130 - BUTTON ASSY, HORN
45130-52810C0

ZSP170

BLACK & RESIN,TRIM0#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0D230C0

ZSP170

BLACK,TRIM0#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0D230C0

ZSP170

BLACK,TRIM0#,2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

NSP170,ZSP170

 1
Common parts
90159-50199
Linked diagrams
8401
