ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

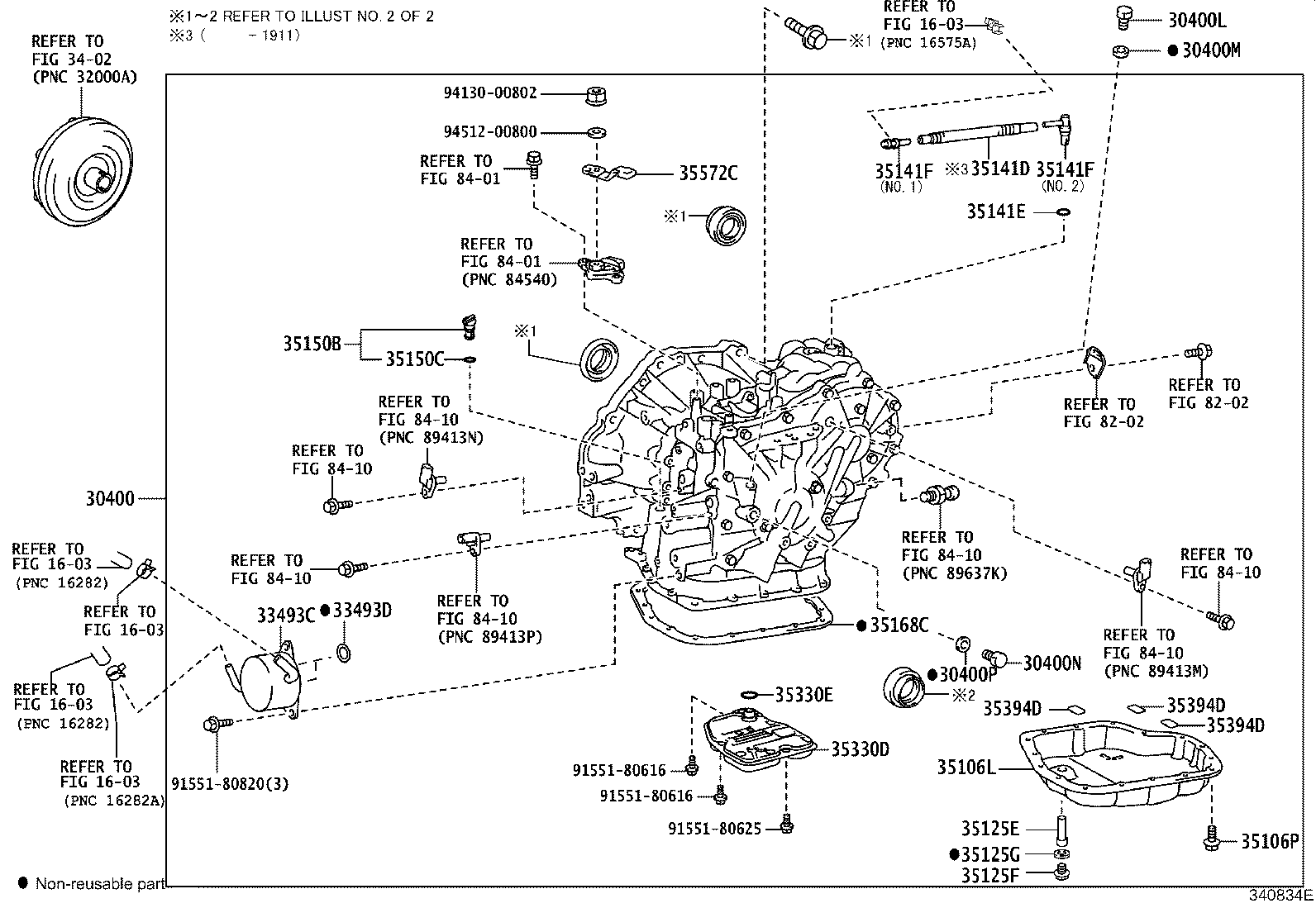

ILLUST NO. 1 OF 2(1611- )ZSP170
Click highlighted areas on diagram
K311
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-13020 |
ZSP170 K311 |
1 | ||
| 30400L - PLUG , FILLER(CVT) | ||||
| 90341-12025 |
NSP170,ZSP170 |
1 | ||
| 30400M - GASKET , FILLER PLUG(CVT) | ||||
| 90430-12221 |
NSP170,ZSP170 |
1 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18077 |
NSP170,ZSP170 |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
NSP170,ZSP170 |
1 | ||
| 33493C - COOLER, TRANSMISSION OIL | ||||
| 33493-12050 |
ZSP170 |
1 | ||
| 33493D - RING, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-20012 |
NSP170,ZSP170 |
2 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-12131 |
ZSP170 |
1 | ||
| 35106P - BOLT(FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
NSP170,ZSP170 |
16 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-12400 |
ZSP170 |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-12034 |
NSP170,ZSP170 |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-12008 |
NSP170,ZSP170 |
1 | ||
| 35141D - HOSE(FOR BREATHER PLUG) | ||||
| 35121-52020 |
NSP170,ZSP170 |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06021 |
NSP170,ZSP170 |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03149 |
ZSP170 NO.1 |
1 | ||
| 90930-03191 |
ZSP170 NO.2 |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03149 |
ZSP170 NO.1 |
1 | ||
| 90930-03191 |
ZSP170 NO.2 |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-48010 |
NSP170,ZSP170 |
1 | ||
| 35150C - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
NSP170,ZSP170 |
1 | ||
| 35168C - GASKET, TRANSAXLE OIL PAN(CVT) | ||||
| 35168-12091 |
NSP170,ZSP170 |
1 | ||
| 35330D - STRAINER ASSY, OIL | ||||
| 35330-0W060 |
ZSP170 |
1 | ||
| 35330E - RING, O (FOR OIL STRAINER) | ||||
| 90301-22019 |
NSP170,ZSP170 |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
NSP170,ZSP170 |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
NSP170,ZSP170 |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
NSP170,ZSP170 |
3 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-12170 |
ZSP170 |
1 | ||
| Common parts | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91551-80820 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3402 | ||||
| 8202 | ||||
| 8401 | ||||
| 8410 | ||||

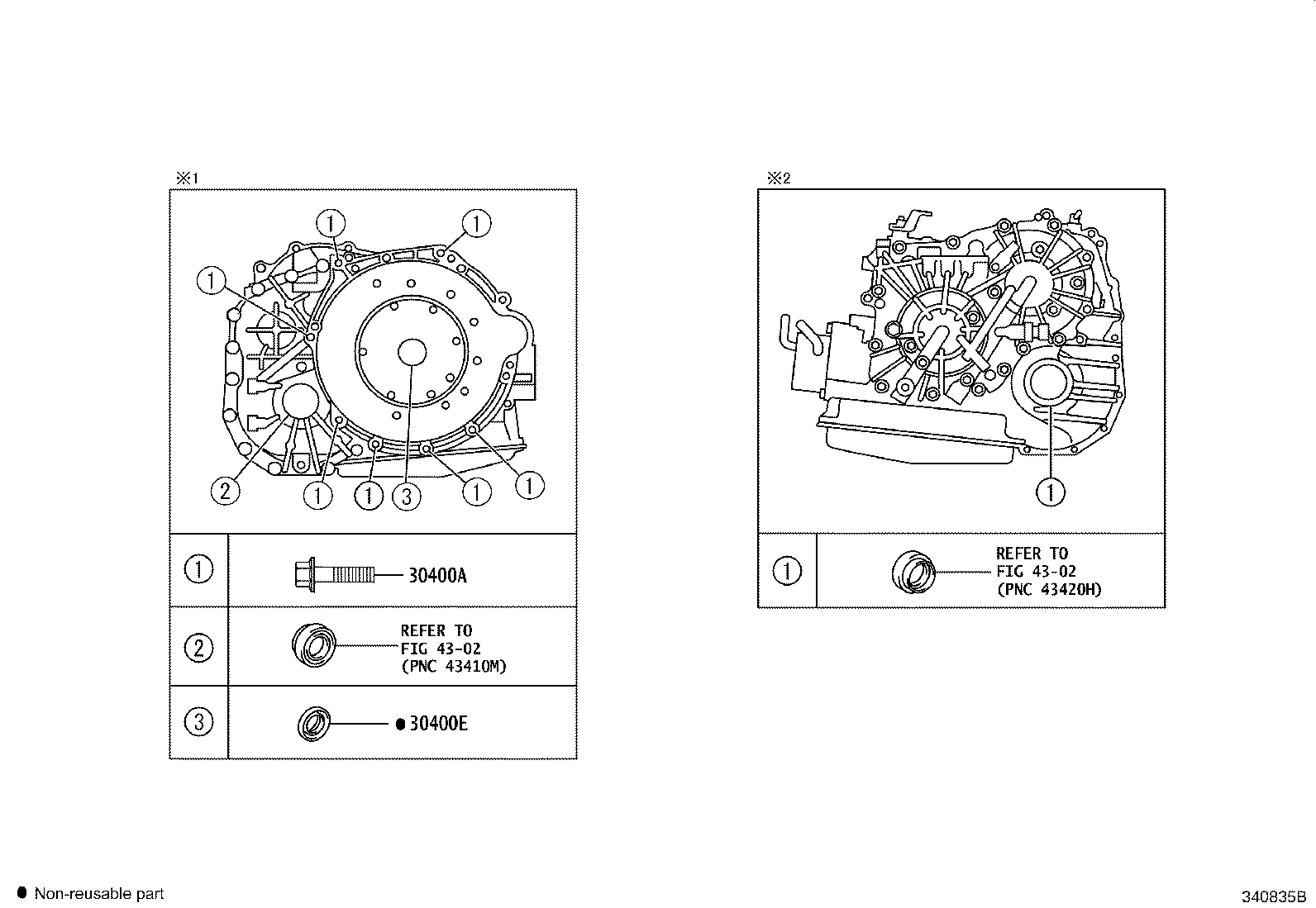

ILLUST NO. 2 OF 2(1611- )ZSP170
Click highlighted areas on diagram
K311
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90119-T0225 |
ZSP170 (L) |
7 | ||
| 91612-61045 |
ZSP170 (J) |
7 | ||
| 30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP) | ||||
| 90311-45027 |
NSP170,ZSP170 |
1 | ||
| Linked diagrams | ||||
| 4302 | ||||
