ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )ZSP170

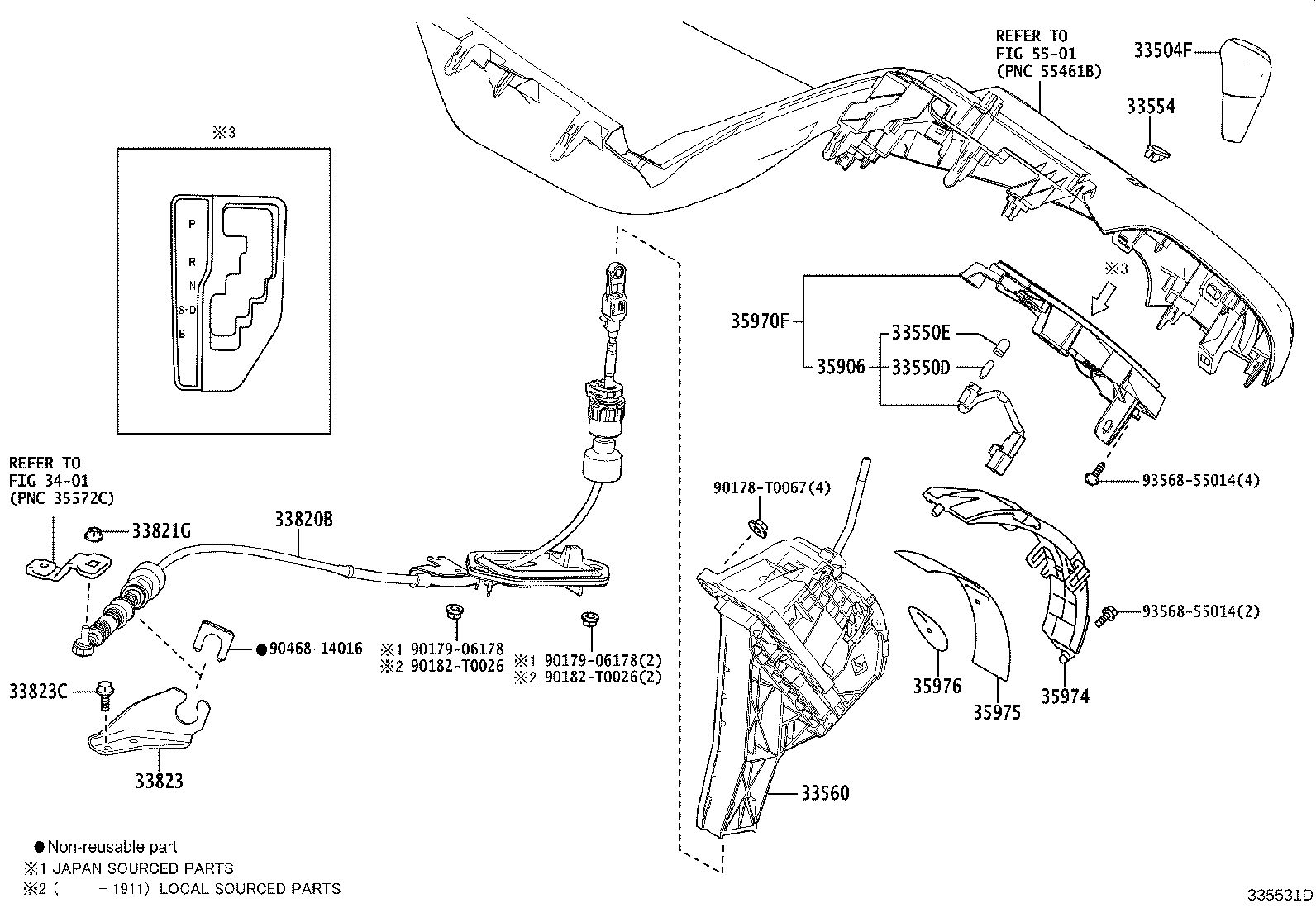

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33554 33560 33820B 33821G 33823 33823C 3401 35906 35970F 35974 35975 35976 5501 90178T0067 9017906178 9017906178 90182T0026 90182T0026 9046814016 9356855014 9356855014
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-52500C0

ZSP170..Q,U

BLACK/ORANGE,TRIM0#,2#

 1
33504-74011C0

ZSP170..N

BLACK,TRIM0#,2#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11014

NSP170,ZSP170

14V 1.4W

 1
90981-11018

NSP170,ZSP170

12V 1.2W W/O SOCKET

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-04074

NSP170,ZSP170

 1
33554 - CAP, SHIFT LEVER
33554-0D230A0

ZSP170

FROMAGE,TRIM0#

 1
33554-0D230C0

NSP170,ZSP170

BLACK,TRIM2#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-0D270

NSP170,ZSP170

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52A10

ZSP170

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90080-17130

NSP170,ZSP170

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-52120

ZSP170

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-T0102

NSP170,ZSP170

 2
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-0D270

NSP170,ZSP170

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-0D430B1

ZSP170

SATIN CHROME,TRIM0#,2#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-0D080

NSP170,ZSP170

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-0D110

NSP170,ZSP170

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-0D130

NSP170,ZSP170

 1
Common parts
90178-T0067
90179-06178
90182-T0026
90468-14016
93568-55014
Linked diagrams
3401
5501
