ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )2ZRFAE

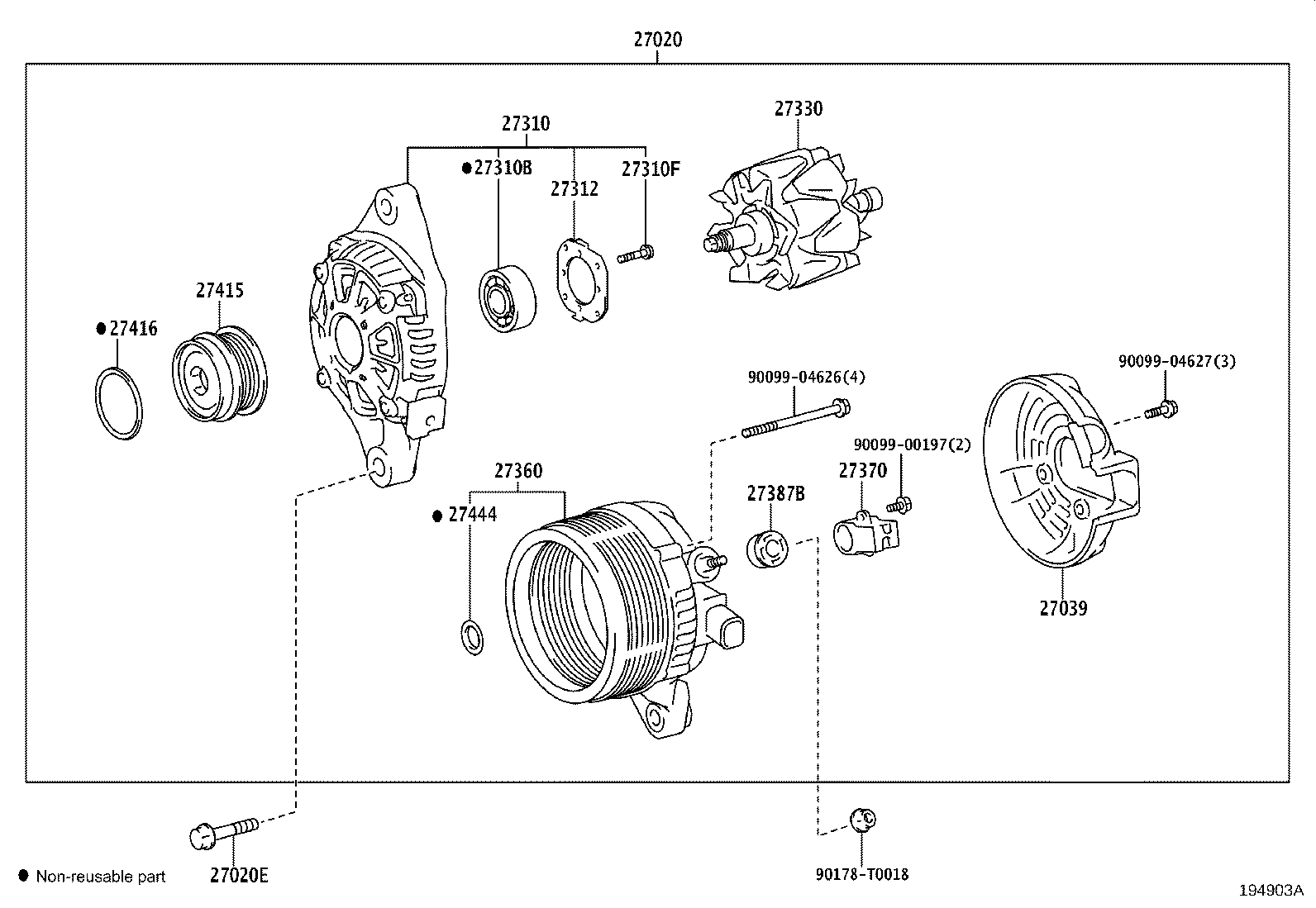

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0T440 |
2ZRFAE..ZSP170 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10307 |
2ZRFAE..ZSP170 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0C180 |
2ZRFAE..ZSP170 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0T260 |
2ZRFAE..ZSP170 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10042 |
2NRFE,2ZRFAE..NSP170,ZSP170 |
1 | ||
| 27310F - SCREW(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-00268 |
2ZRFAE..ZSP170 |
4 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0M070 |
2ZRFAE..ZSP170 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0T260 |
2ZRFAE..ZSP170 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0T430 |
2ZRFAE..ZSP170 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0T030 |
2ZRFAE..ZSP170 |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-0H110 |
2ZRFAE..ZSP170 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W021 |
2ZRFAE..ZSP170 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
2ZRFAE..ZSP170 |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-0Y180 |
2ZRFAE..ZSP170 |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-04626 | ||||
| 90099-04627 | ||||
| 90178-T0018 | ||||
