ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )2ZRFAE

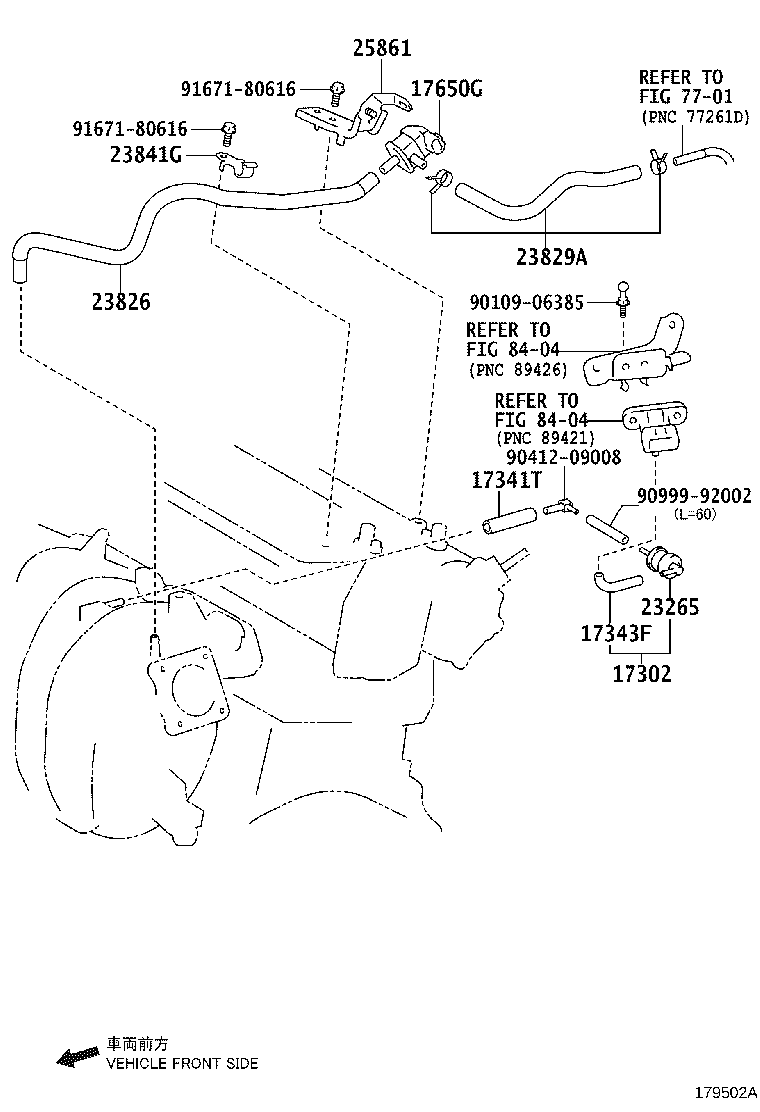

Click highlighted areas on diagram

diagram 17302 17341T 17343F 17650G 23265 23826 23829A 23841G 25861 7701 8404 8404 9010906385 9041209008 9099992002 9167180616 9167180616
Part # Description Qty Price
17302 - HOSE SUB-ASSY, AIR
17302-37010

2ZRFAE..ZSP170

 1
17341T - HOSE, AIR, NO.1
17341-37070

2ZRFAE..ZSP170

 1
17343F - HOSE, AIR, NO.3
17343-37050

2ZRFAE..ZSP170

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12276

2ZRFAE..ZSP170

 1
23265 - FILTER, GAS, NO.1
90917-11038

2ZRFAE..ZSP170

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-37220

2ZRFAE..ZSP170

 1
23829A - HOSE, FUEL VAPOR FEED
23826-0T290

2ZRFAE..ZSP170

 1
23841G - CLAMP, FUEL HOSE
23841-37060

2ZRFAE..ZSP170

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-37030

2ZRFAE..ZSP170

 1
Common parts
90109-06385
90412-09008
90999-92002
91671-80616
Linked diagrams
7701
8404
