ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )2ZRFAE

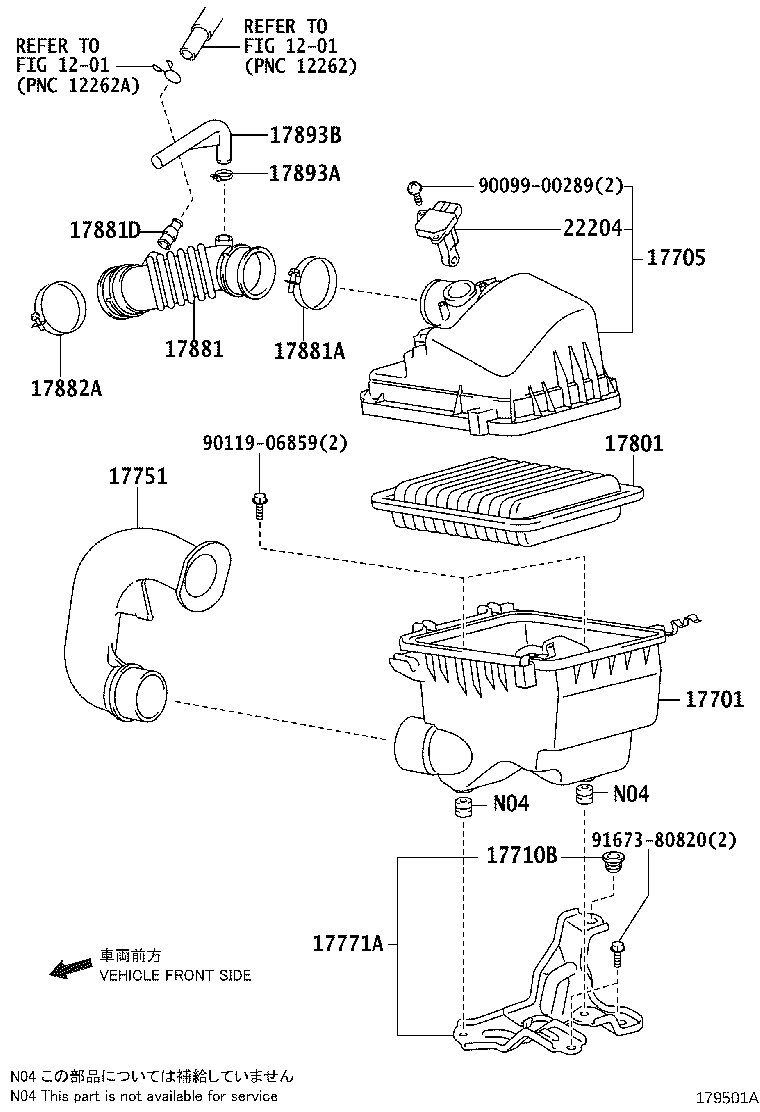

Click highlighted areas on diagram

diagram 1201 1201 17701 17705 17710B 17751 17771A 17801 17881 17881A 17881D 17882A 17893A 17893B 22204 9009900289 9011906859 9167380820
Part # Description Qty Price
17701 - CASE SUB-ASSY, AIR CLEANER
17701-21100

2ZRFAE..ZSP170

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-37181

2ZRFAE..ZSP170

 1
17710B - GROMMET
90480-18006

2ZRFAE..ZSP170

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0T220

2ZRFAE..ZSP170

 1
17771A - BRACKET, AIR CLEANER
17771-21050

2ZRFAE..ZSP170

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21050

2ZRFAE..ZSP170

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-37230

2ZRFAE..ZSP170

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

2ZRFAE..ZSP170

 1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
12229-21010

2ZRFAE..ZSP170

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750

2ZRFAE..ZSP170

 1
17893A - CLAMP, HOSE
96111-10330

2ZRFAE..ZSP170

 1
17893B - RESONATOR, INTAKE AIR, NO.2
17893-37080

2ZRFAE..ZSP170

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0V010

2ZRFAE..ZSP170

MARK 22204-0V010

 1
22204-0T040

2ZRFAE..ZSP170

MARK 22204-0T040

 1
22204-28010

2ZRFAE..ZSP170

MARK 22204-28010

 1
22204-0V020

2ZRFAE..ZSP170

MARK 22204-0V020

 1
Common parts
90099-00289
90119-06859
91673-80820
Linked diagrams
1201
