ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )2ZRFAE

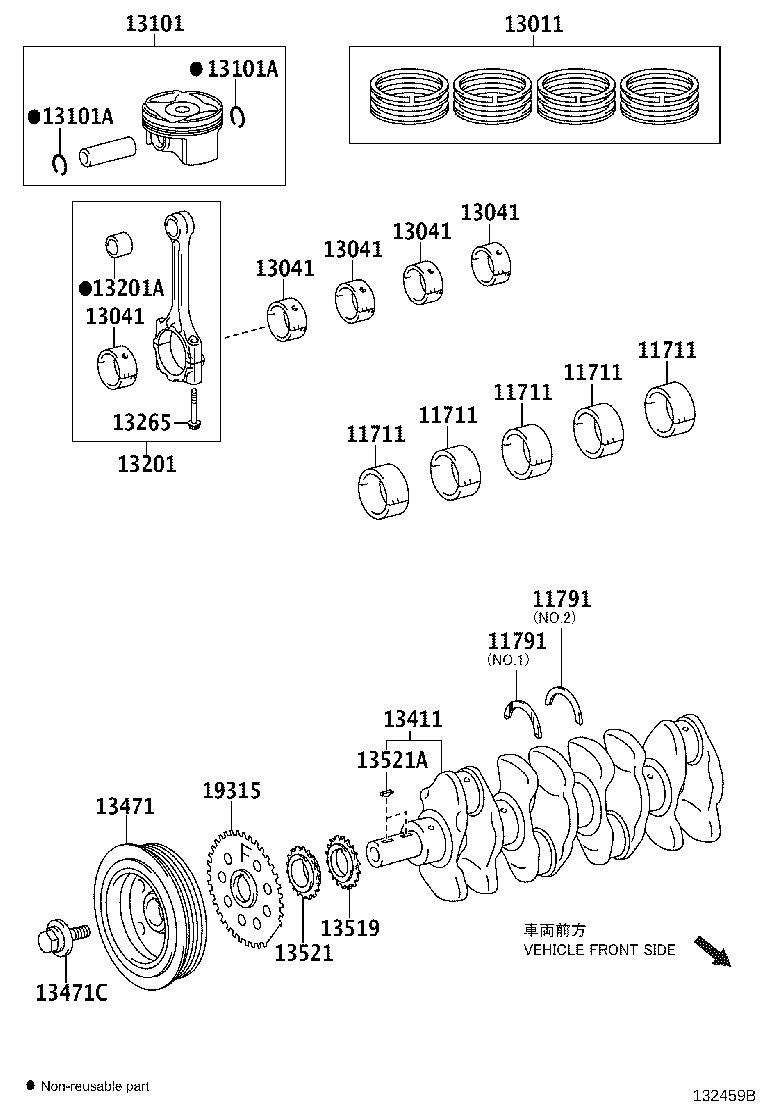

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13041 13101 13101A 13101A 13201 13201A 13265 13411 13471 13471C 13519 13521 13521A 19315
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-3702103

2ZRFAE..ZSP170

MARK3,REFER REPAIR MANUAL

 5
11701-3702102

2ZRFAE..ZSP170

MARK2,REFER REPAIR MANUAL

 5
11701-3702101

2ZRFAE..ZSP170

MARK1,REFER REPAIR MANUAL

 5
11701-3702104

2ZRFAE..ZSP170

MARK4,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702103

2ZRFAE..ZSP170

MARK3,REFER REPAIR MANUAL

 5
11701-3702102

2ZRFAE..ZSP170

MARK2,REFER REPAIR MANUAL

 5
11701-3702101

2ZRFAE..ZSP170

MARK1,REFER REPAIR MANUAL

 5
11701-3702104

2ZRFAE..ZSP170

MARK4,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702103

2ZRFAE..ZSP170

MARK3,REFER REPAIR MANUAL

 5
11701-3702102

2ZRFAE..ZSP170

MARK2,REFER REPAIR MANUAL

 5
11701-3702101

2ZRFAE..ZSP170

MARK1,REFER REPAIR MANUAL

 5
11701-3702104

2ZRFAE..ZSP170

MARK4,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702103

2ZRFAE..ZSP170

MARK3,REFER REPAIR MANUAL

 5
11701-3702102

2ZRFAE..ZSP170

MARK2,REFER REPAIR MANUAL

 5
11701-3702101

2ZRFAE..ZSP170

MARK1,REFER REPAIR MANUAL

 5
11701-3702104

2ZRFAE..ZSP170

MARK4,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702103

2ZRFAE..ZSP170

MARK3,REFER REPAIR MANUAL

 5
11701-3702102

2ZRFAE..ZSP170

MARK2,REFER REPAIR MANUAL

 5
11701-3702101

2ZRFAE..ZSP170

MARK1,REFER REPAIR MANUAL

 5
11701-3702104

2ZRFAE..ZSP170

MARK4,REFER REPAIR MANUAL

 5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-22020

2ZRFAE..ZSP170

STD,NO.1

 1
11791-37010

2ZRFAE..ZSP170

STD,NO.2

 1
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-22020

2ZRFAE..ZSP170

STD,NO.1

 1
11791-37010

2ZRFAE..ZSP170

STD,NO.2

 1
13011 - RING SET, PISTON
13011-37300

2ZRFAE..ZSP170

STD

 1
13011-37290

2ZRFAE..ZSP170

STD

 1
13041 - BEARING, CONNECTING ROD
13041-3701002

2ZRFAE..ZSP170

MARK2,REFER REPAIR MANUAL

 4
13041-3701003

2ZRFAE..ZSP170

MARK3,REFER REPAIR MANUAL

 4
13041-3701001

2ZRFAE..ZSP170

MARK1,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3701002

2ZRFAE..ZSP170

MARK2,REFER REPAIR MANUAL

 4
13041-3701003

2ZRFAE..ZSP170

MARK3,REFER REPAIR MANUAL

 4
13041-3701001

2ZRFAE..ZSP170

MARK1,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3701002

2ZRFAE..ZSP170

MARK2,REFER REPAIR MANUAL

 4
13041-3701003

2ZRFAE..ZSP170

MARK3,REFER REPAIR MANUAL

 4
13041-3701001

2ZRFAE..ZSP170

MARK1,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3701002

2ZRFAE..ZSP170

MARK2,REFER REPAIR MANUAL

 4
13041-3701003

2ZRFAE..ZSP170

MARK3,REFER REPAIR MANUAL

 4
13041-3701001

2ZRFAE..ZSP170

MARK1,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3701002

2ZRFAE..ZSP170

MARK2,REFER REPAIR MANUAL

 4
13041-3701003

2ZRFAE..ZSP170

MARK3,REFER REPAIR MANUAL

 4
13041-3701001

2ZRFAE..ZSP170

MARK1,REFER REPAIR MANUAL

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-37300

2ZRFAE..ZSP170

STD

 4
13101-37490

2ZRFAE..ZSP170

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

2ZRFAE..ZSP170

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

2ZRFAE..ZSP170

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-39185

2ZRFAE..ZSP170

(J)

 4
13201-09A30

2ZRFAE..ZSP170

(L)

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73151

2ZRFAE..ZSP170

 4
13265 - BOLT, CONNECTING ROD
13265-22020

2ZRFAE..ZSP170

 8
13265-22040

2ZRFAE..ZSP170

 8
13411 - CRANKSHAFT
13401-0T061

2ZRFAE..ZSP170

(L)

 1
13401-37021

2ZRFAE..ZSP170

(J)

 1
13471 - PULLEY, CRANKSHAFT
13470-37042

2ZRFAE..ZSP170

 1
13470-37041

2ZRFAE..ZSP170

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14106

2ZRFAE..ZSP170

 1
90119-14175

2ZRFAE..ZSP170

 1
13519 - GEAR, OIL PUMP DRIVE
13519-37010

2ZRFAE..ZSP170

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-37011

2ZRFAE..ZSP170

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-04003

2ZRFAE..ZSP170

 2
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-37020

2ZRFAE..ZSP170

 1
