ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )2ZRFAE

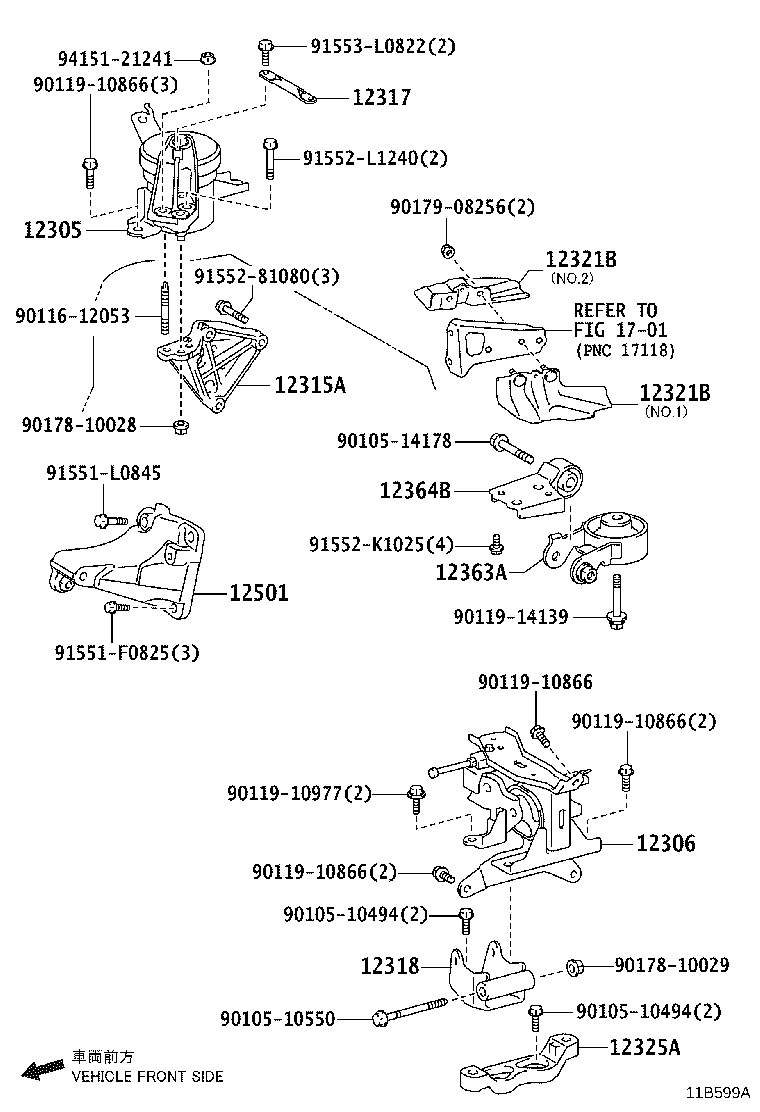

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-37270 |
2ZRFAE..ZSP170 |
1 | ||
| 12306 - INSULATOR SUB-ASSY, ENGINE MOUNTING, LH | ||||
| 12306-37020 |
2ZRFAE..ZSP170 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37050 |
2ZRFAE..ZSP170 |
1 | ||
| 12317 - STAY, ENGINE MOUNTING, RH | ||||
| 12317-37010 |
2ZRFAE..ZSP170 |
1 | ||
| 12318 - STAY, ENGINE MOUNTING, LH | ||||
| 12318-0T030 |
2ZRFAE..ZSP170 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43498-12051 |
2ZRFAE..ZSP170 NO.2 |
1 | ||
| 43409-12060 |
2ZRFAE..ZSP170 NO.1 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43498-12051 |
2ZRFAE..ZSP170 NO.2 |
1 | ||
| 43409-12060 |
2ZRFAE..ZSP170 NO.1 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T510 |
2ZRFAE..ZSP170 |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-0Y220 |
2ZRFAE..ZSP170 |
1 | ||
| 12364B - ROD, ENGINE MOVING CONTROL, NO.2 | ||||
| 12364-0T040 |
2ZRFAE..ZSP170 |
1 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12501-37010 |
2ZRFAE..ZSP170 |
1 | ||
| Common parts | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-14178 | ||||
| 90116-12053 | ||||
| 90119-10866 | ||||
| 90119-10977 | ||||
| 90119-14139 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90179-08256 | ||||
| 91551-F0825 | ||||
| 91551-L0845 | ||||
| 91552-81080 | ||||
| 91552-K1025 | ||||
| 91552-L1240 | ||||
| 91553-L0822 | ||||
| 94151-21241 | ||||
| Linked diagrams | ||||
| 1701 | ||||
