ZSP170L-MNXNPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

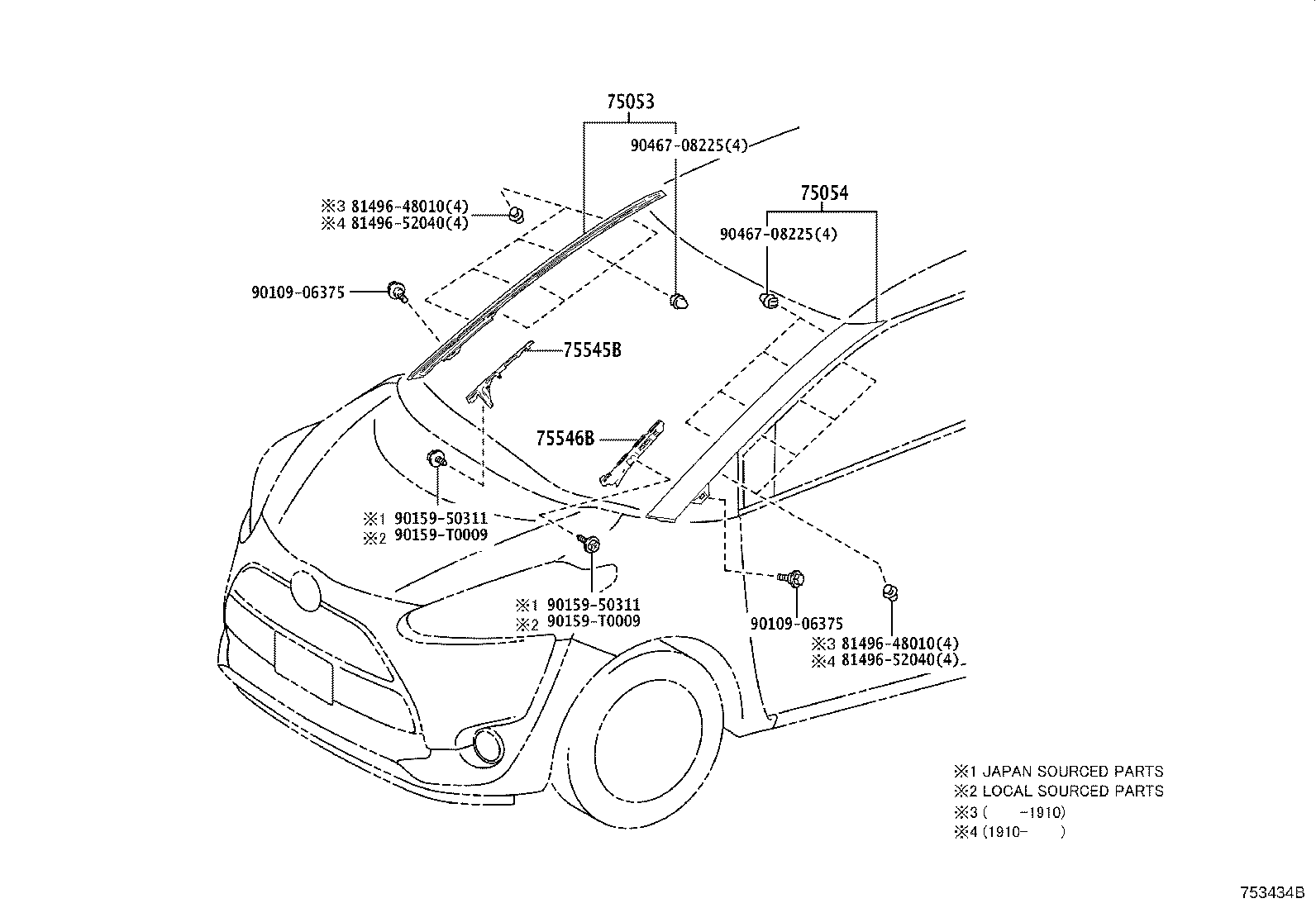

Click highlighted areas on diagram

diagram 75053 75054 75545B 75546B 8149648010 8149648010 8149652040 8149652040 9010906375 9010906375 9015950311 9015950311 90159T0009 90159T0009 9046708225 9046708225
Part # Description Qty Price
75053 - GARNISH SUB-ASSY, FRONT PILLAR, OUTER RH
76003-0D020

NSP170,ZSP170

 1
75054 - GARNISH SUB-ASSY, FRONT PILLAR, OUTER LH
76004-0D020

NSP170,ZSP170

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-0D020

NSP170,ZSP170

 1
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-0D020

NSP170,ZSP170

 1
Common parts
81496-48010
81496-52040
90109-06375
90159-50311
90159-T0009
90467-08225
