ZSP170L-MNXNPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

Click highlighted areas on diagram

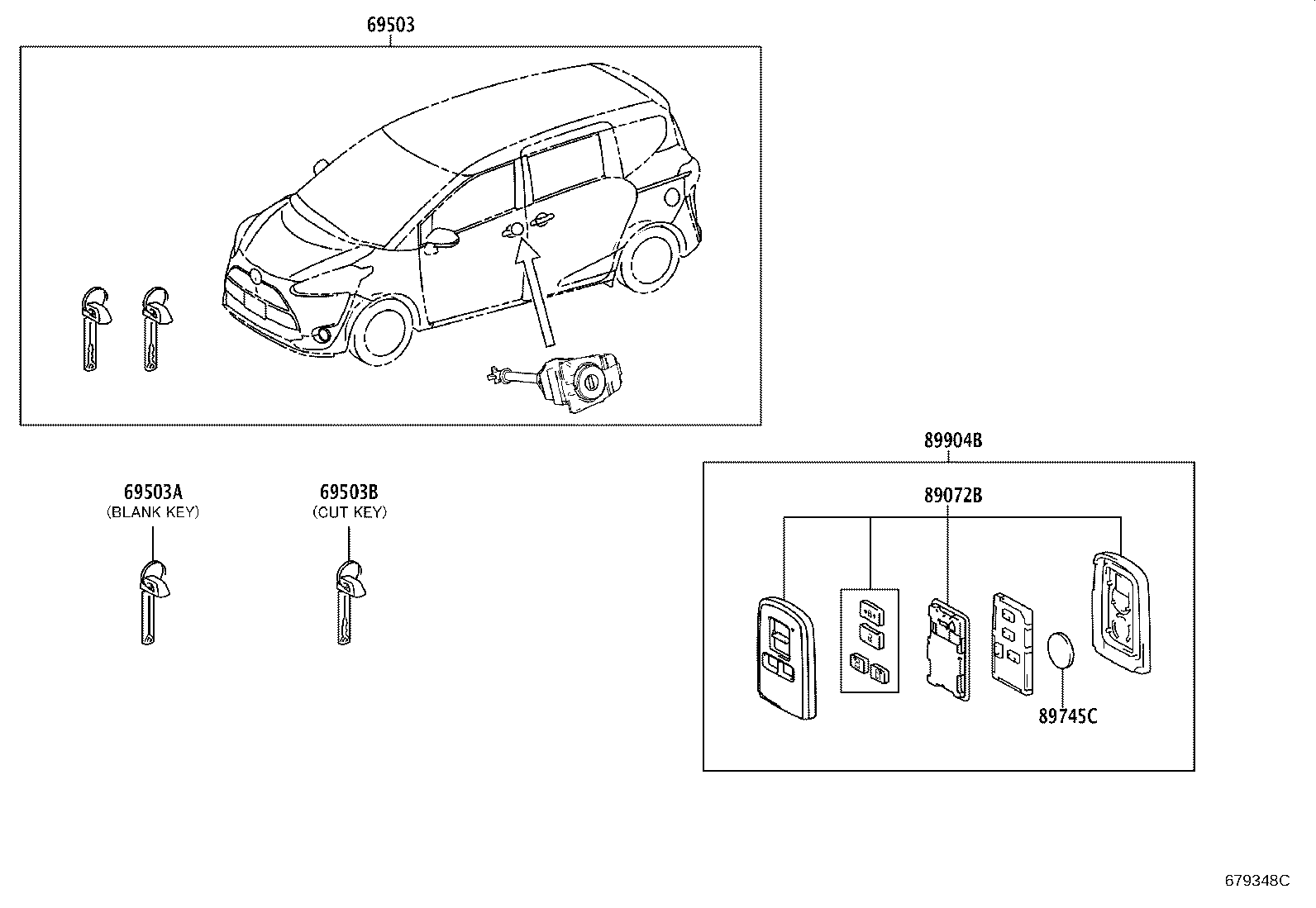

diagram 69503 69503A 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-52R40

NSP170,ZSP170

 1
69503A - KEY, BLANK
69515-33100

NSP170,ZSP170

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-33090

NSP170,ZSP170

MASTER KEY,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-52600

NSP170,ZSP170..D,N

 2
89072-52660

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS))

 2
89745C - BATTERY, TRANSMITTER
89745-45010

NSP170,ZSP170

CR2032

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-52580

NSP170,ZSP170..D,N

 2
89904-52590

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS))

 2
