ZSP170L-MNXNPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

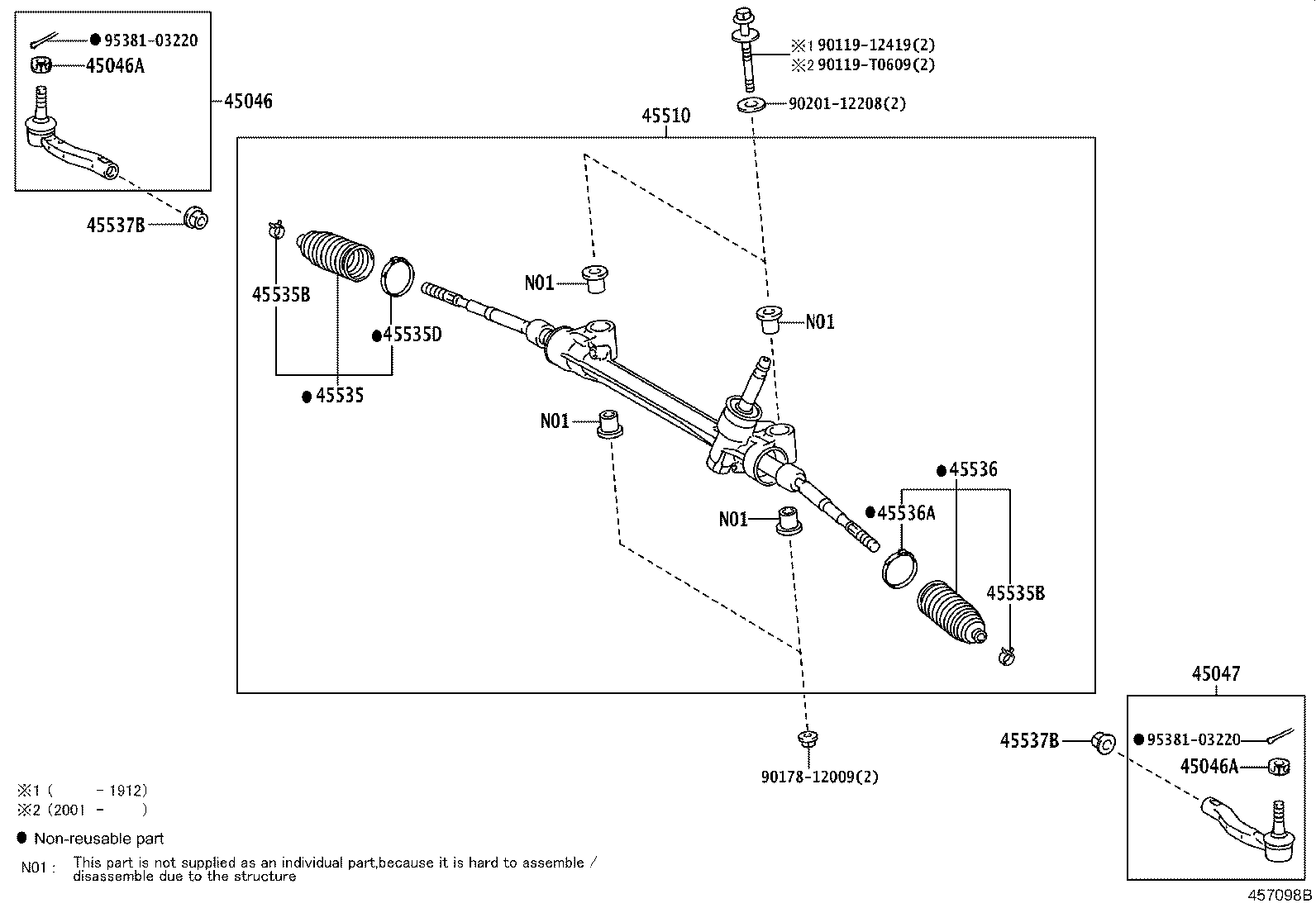

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45535D 45536 45536A 45537B 45537B 9011912419 90119T0609 9017812009 9020112208 9538103220 9538103220
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09720

NSP170,ZSP170

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NSP170,ZSP170

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NSP170,ZSP170

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-09370

NSP170,ZSP170

 1
45510 - GEAR ASSY, STEERING
45510-0D470

NSP170,ZSP170..D,N

 1
45535 - BOOT, STEERING RACK, NO.1
45535-09360

NSP170,ZSP170

 1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0D100

NSP170,ZSP170

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0D100

NSP170,ZSP170

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-0D110

NSP170,ZSP170

 1
45536 - BOOT, STEERING RACK, NO.2
45535-09360

NSP170,ZSP170

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-0D110

NSP170,ZSP170

 1
45537B - NUT, RACK END LOCK
90170-14012

NSP170,ZSP170

 2
45537B - NUT, RACK END LOCK
90170-14012

NSP170,ZSP170

 2
Common parts
90119-12419
90119-T0609
90178-12009
90201-12208
95381-03220
