ZSP170L-MNXNPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

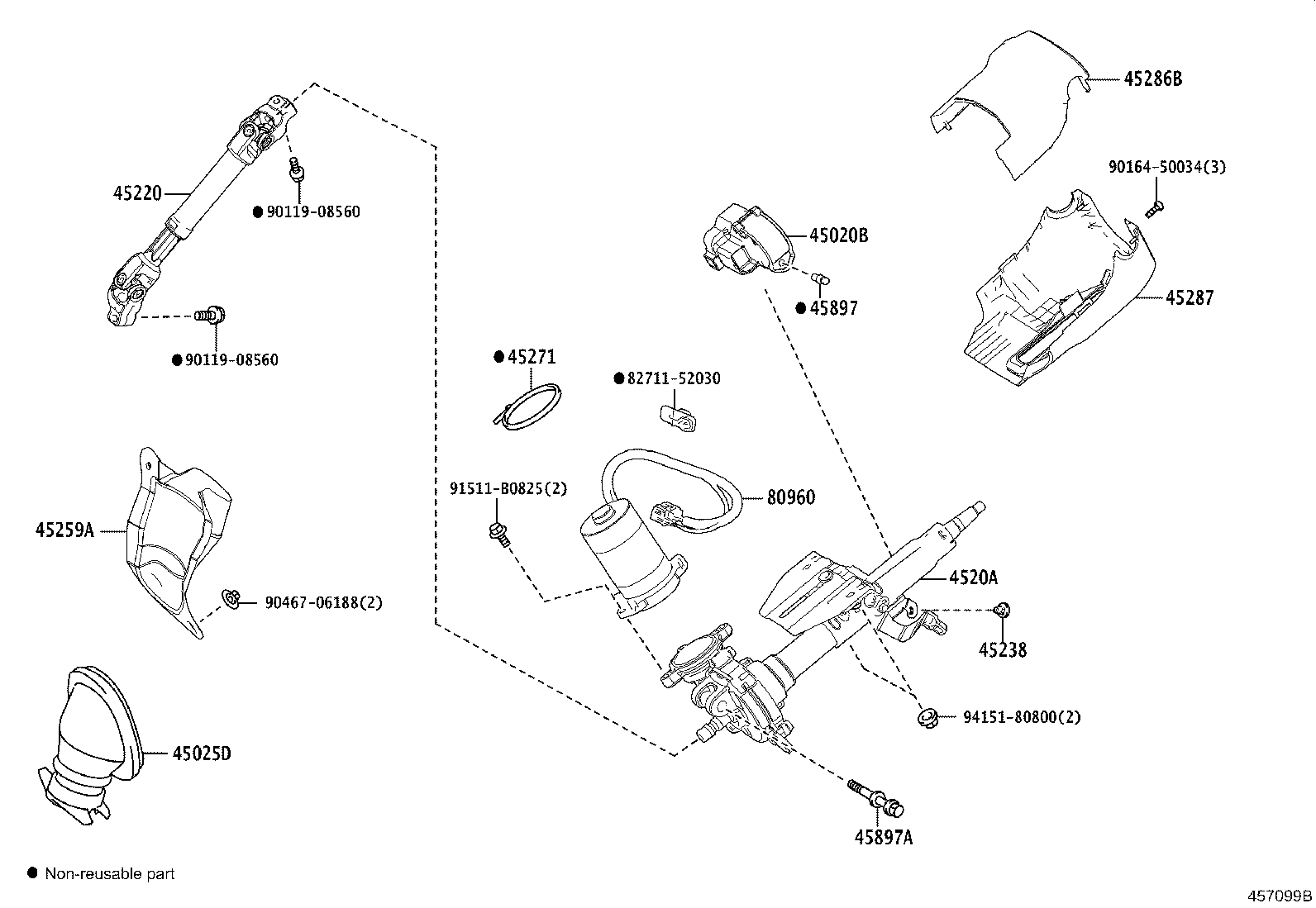

Click highlighted areas on diagram

diagram 45020B 45025D 4520A 45220 45238 45259A 45271 45286B 45287 45897 45897A 80960 8271152030 9011908560 9011908560 9016450034 9046706188 91511B0825 9415180800
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-30B20

NSP170,ZSP170

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0D180

NSP170,ZSP170

 1
45025-0D181

NSP170,ZSP170

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-0D360

NSP170,ZSP170

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-0D040

NSP170,ZSP170

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010

NSP170,ZSP170

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-0D220

NSP170,ZSP170

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52040

NSP170,ZSP170

 1
45286B - COVER, STEERING COLUMN, UPR
45286-0D190C0

ZSP170

BLACK,TRIM0#,2#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0D170C0

ZSP170

BLACK,TRIM0#,2#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NSP170,ZSP170

 1
45897A - BOLT, TILT STEERING PAWL SET
90119-10980

NSP170,ZSP170

 1
80960 - MOTOR ASSY, POWER STEERING
80960-02110

NSP170,ZSP170

 1
Common parts
82711-52030
90119-08560
90164-50034
90467-06188
91511-B0825
94151-80800
