ZSP170L-MNXNPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

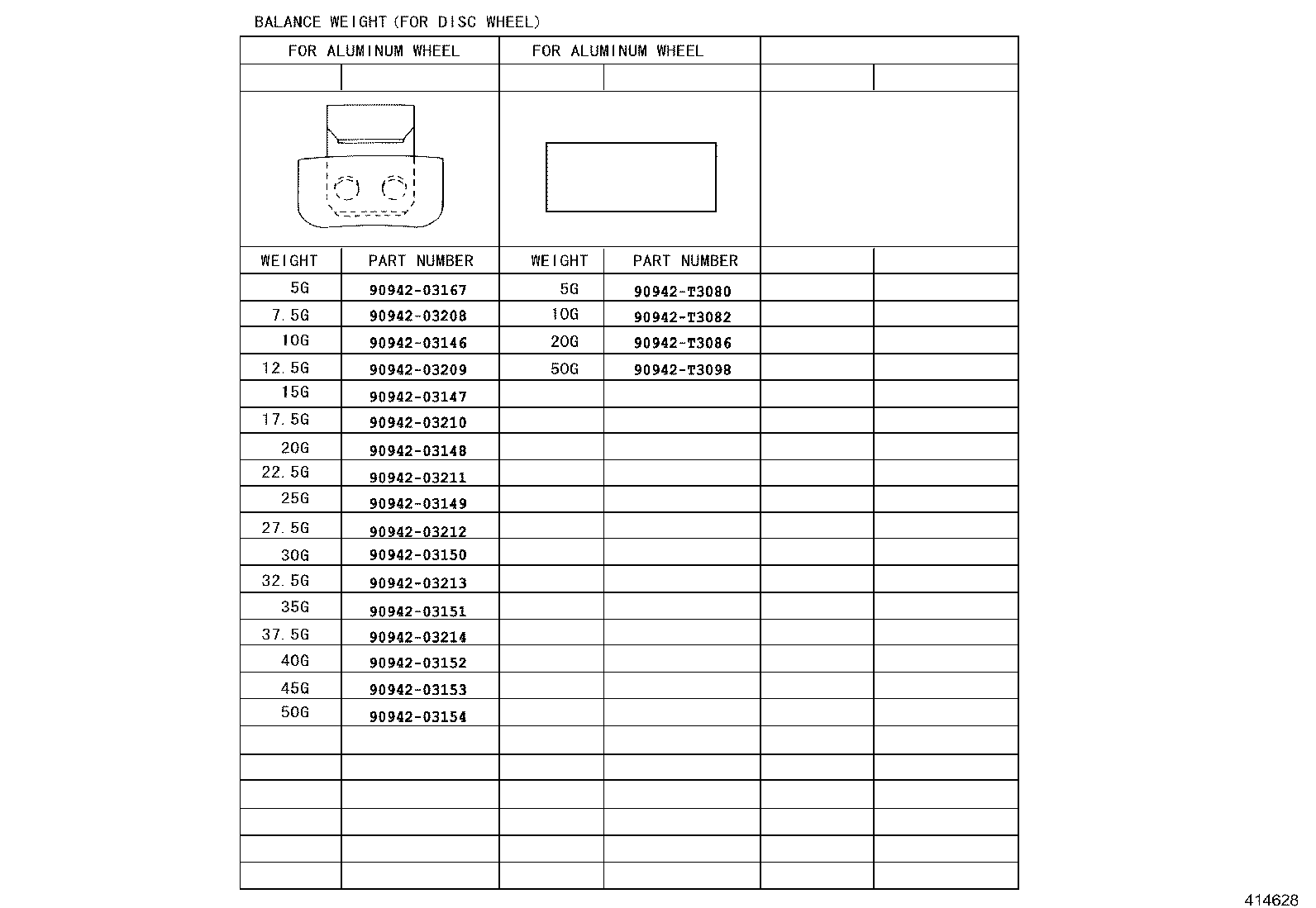

ILLUST NO. 2 OF 2(1611- )

Click highlighted areas on diagram

diagram 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203167 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 90942T3080 90942T3082 90942T3086 90942T3098
Part # Description Qty Price
Common parts
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-T3080
90942-T3082
90942-T3086
90942-T3098

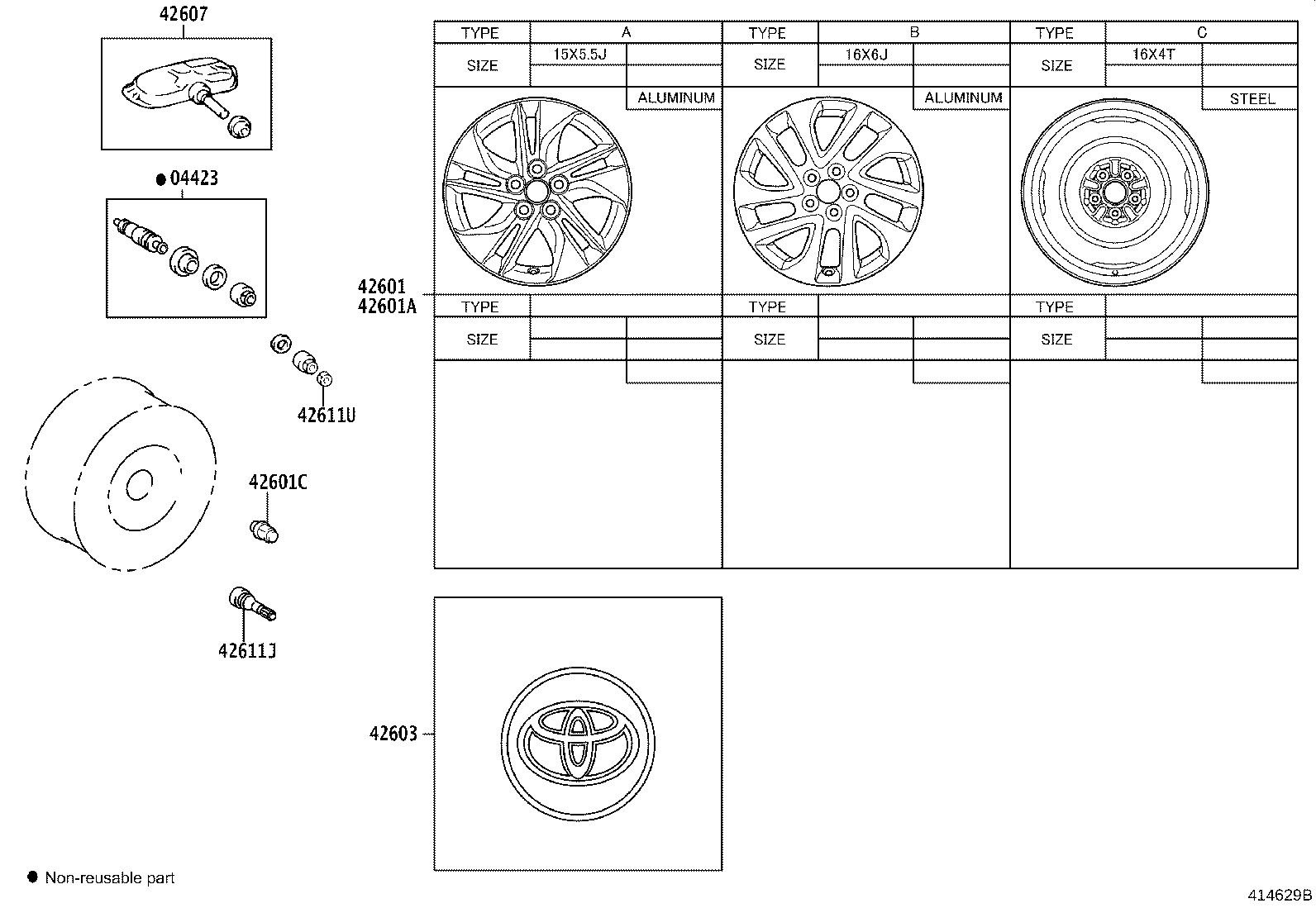

ILLUST NO. 1 OF 2(1611- )

Click highlighted areas on diagram

diagram 04423 42601 42601A 42601C 42603 42607 42611J 42611U
Part # Description Qty Price
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33060

NSP170,ZSP170

 4
42601 - WHEEL, DISC
42611-0DA60

NSP170,ZSP170..D,N

15X5.5J,#,TYPE A:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-0M020

NSP170,ZSP170

16X4T,TYPE C:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01033

NSP170,ZSP170

 20
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-52170

NSP170,ZSP170

*ALU

 4
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-52020

NSP170,ZSP170

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

NSP170,ZSP170

 1
42611U - CAP, TIRE VALVE
90942-05039

NSP170,ZSP170

 4
