NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(1506- )
Click highlighted areas on diagram

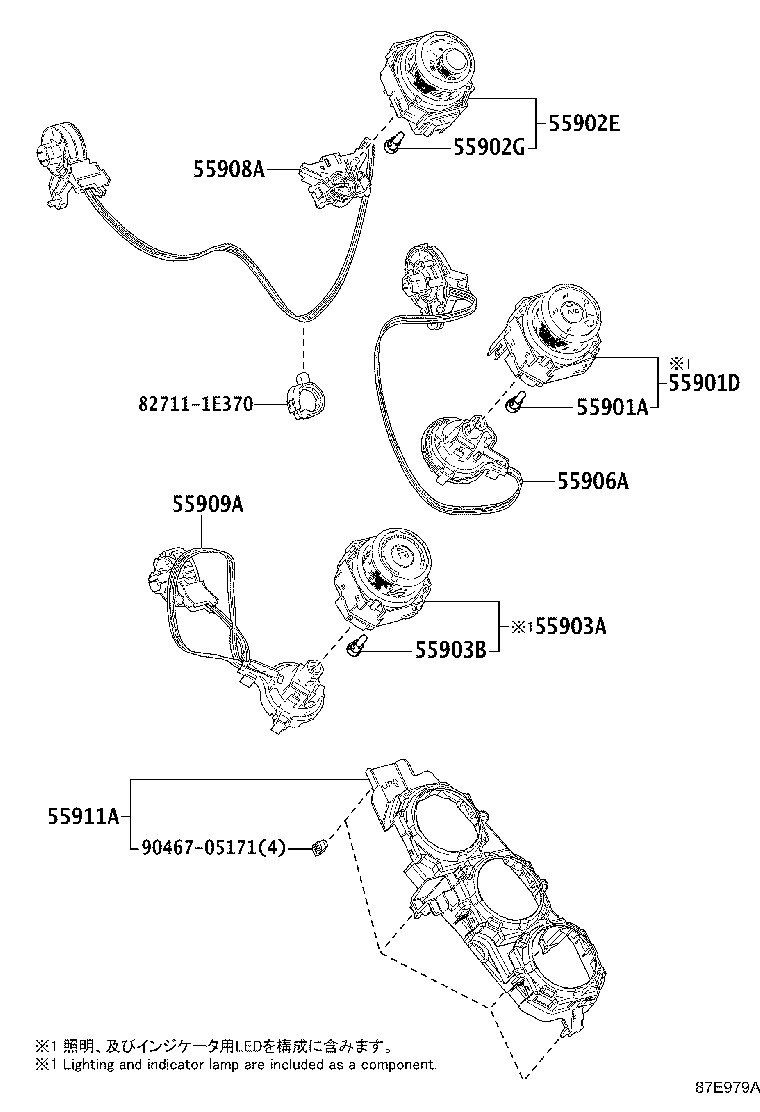

MANUAL HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1 | ||||
| 90010-01142 |
NSP170..N |
1 | ||
| 55901D - CONTROL SUB-ASSY, HEATER, NO.1 | ||||
| 55901-52370 |
NSP170..N |
1 | ||
| 55902E - CONTROL SUB-ASSY, HEATER, NO.2 | ||||
| 55902-52210 |
NSP170..N |
1 | ||
| 55902G - BULB, HEATER CONTROL SUB-ASSY, NO.2 | ||||
| 90010-01142 |
NSP170..N |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-52700 |
NSP170..N |
1 | ||
| 55903B - BULB, HEATER CONTROL SUB-ASSY, NO.3 | ||||
| 90010-01142 |
NSP170..N |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52132 |
NSP170..N |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52130 |
NSP170..N |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52140 |
NSP170..N |
1 | ||
| 55911A - BASE, HEATER CONTROL | ||||
| 55911-52030 |
NSP170..N |
1 | ||
| Common parts | ||||
| 82711-1E370 | ||||
| 90467-05171 | ||||
ILLUST NO. 1 OF 3(1506- )
Click highlighted areas on diagram

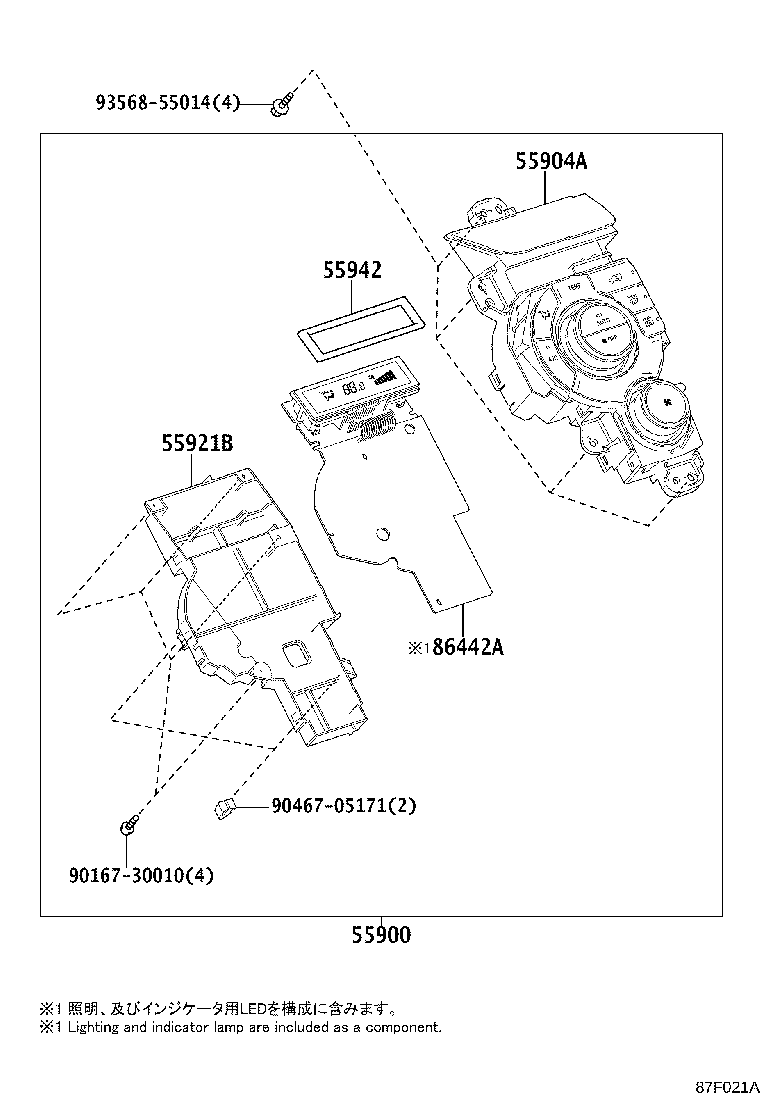

AUTO HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-52890C0 |
NHP170;NSP170..Q BLACK,TRIM2# |
1 | ||
| 55900-52890A0 |
NHP170;NSP170..Q FROMAGE,TRIM0# |
1 | ||
| 55904A - HOUSING SUB-ASSY, HEATER CONTROL | ||||
| 55904-52060A0 |
NHP170;NSP170..Q FROMAGE,TRIM0# |
1 | ||
| 55904-52060C0 |
NHP170;NSP170..Q BLACK,TRIM2# |
1 | ||
| 55921B - RETAINER, HEATER CONTROL | ||||
| 55921-52060 |
NHP170;NSP170..Q |
1 | ||
| 55942 - GUARD, HEATER CONTROL | ||||
| 55942-52020 |
NHP170;NSP170..Q |
1 | ||
| 86442A - BOARD, HEATER CONTROL SWITCH | ||||
| 86442-52070 |
NHP170;NSP170..Q |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| 90467-05171 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 3(1506- )
Click highlighted areas on diagram

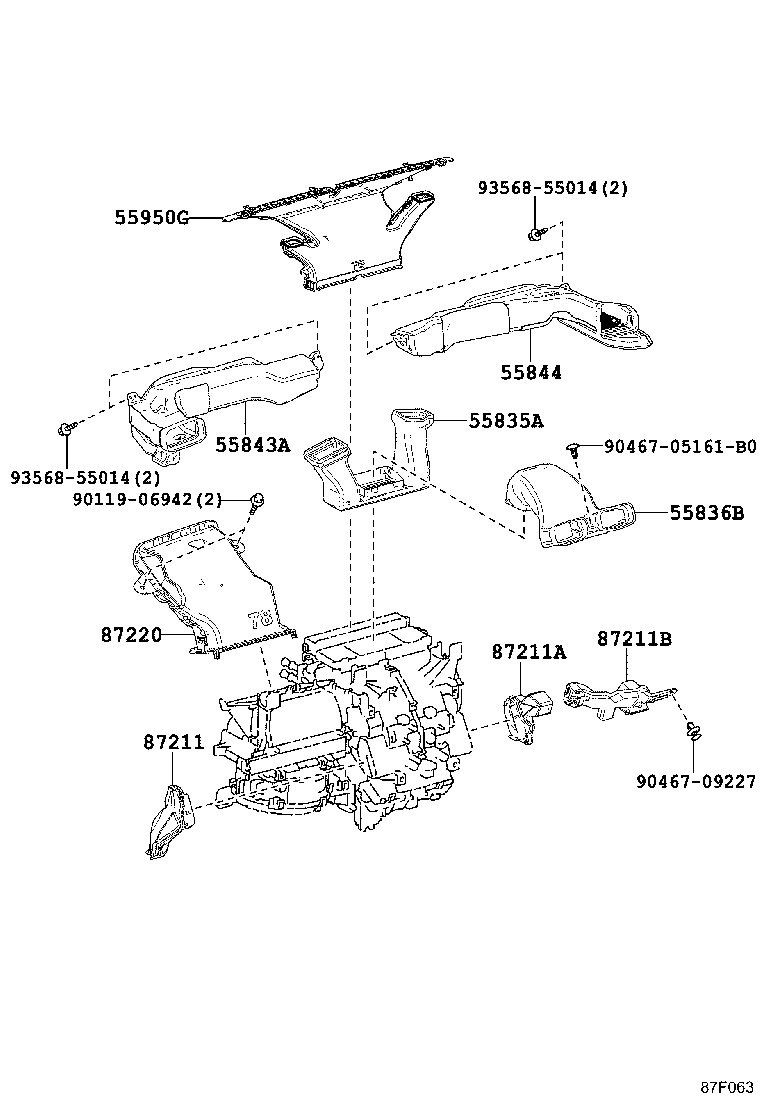

AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-52080 |
NHP170,NSP170 |
1 | ||
| 55836B - DUCT, HEATER TO RESISTER, CENTER, NO.2 | ||||
| 55836-52100 |
NHP170,NSP170 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55086-52030 |
NHP170,NSP170 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55084-52130 |
NHP170,NSP170 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52230 |
NHP170,NSP170 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-52200 |
NHP170,NSP170 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-52192 |
NHP170,NSP170 |
1 | ||
| 87211-52191 |
NHP170,NSP170 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-52211 |
NHP170,NSP170 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-52060 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90467-05161B0 | ||||
| 90467-09227 | ||||
| 93568-55014 | ||||
ILLUST NO. 3 OF 3(1506- )
Click highlighted areas on diagram

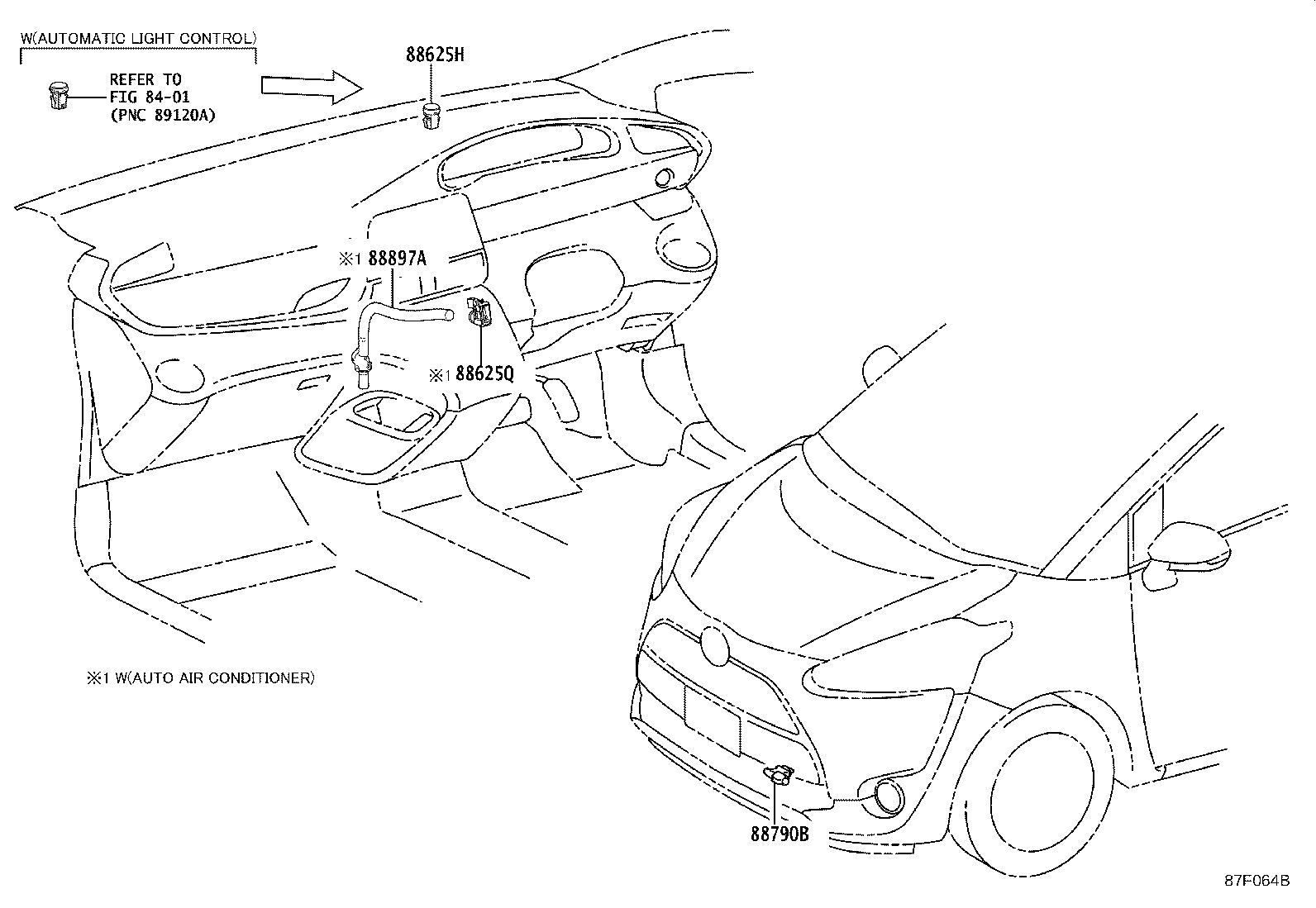

SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-52130 |
NHP170;NSP170..Q |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
NHP170;NSP170..Q |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28100 |
NHP170,NSP170 |
1 | ||
| 88897A - PIPE, ASPIRATOR | ||||
| 88505-52030 |
NHP170;NSP170..Q |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
