NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

Click highlighted areas on diagram

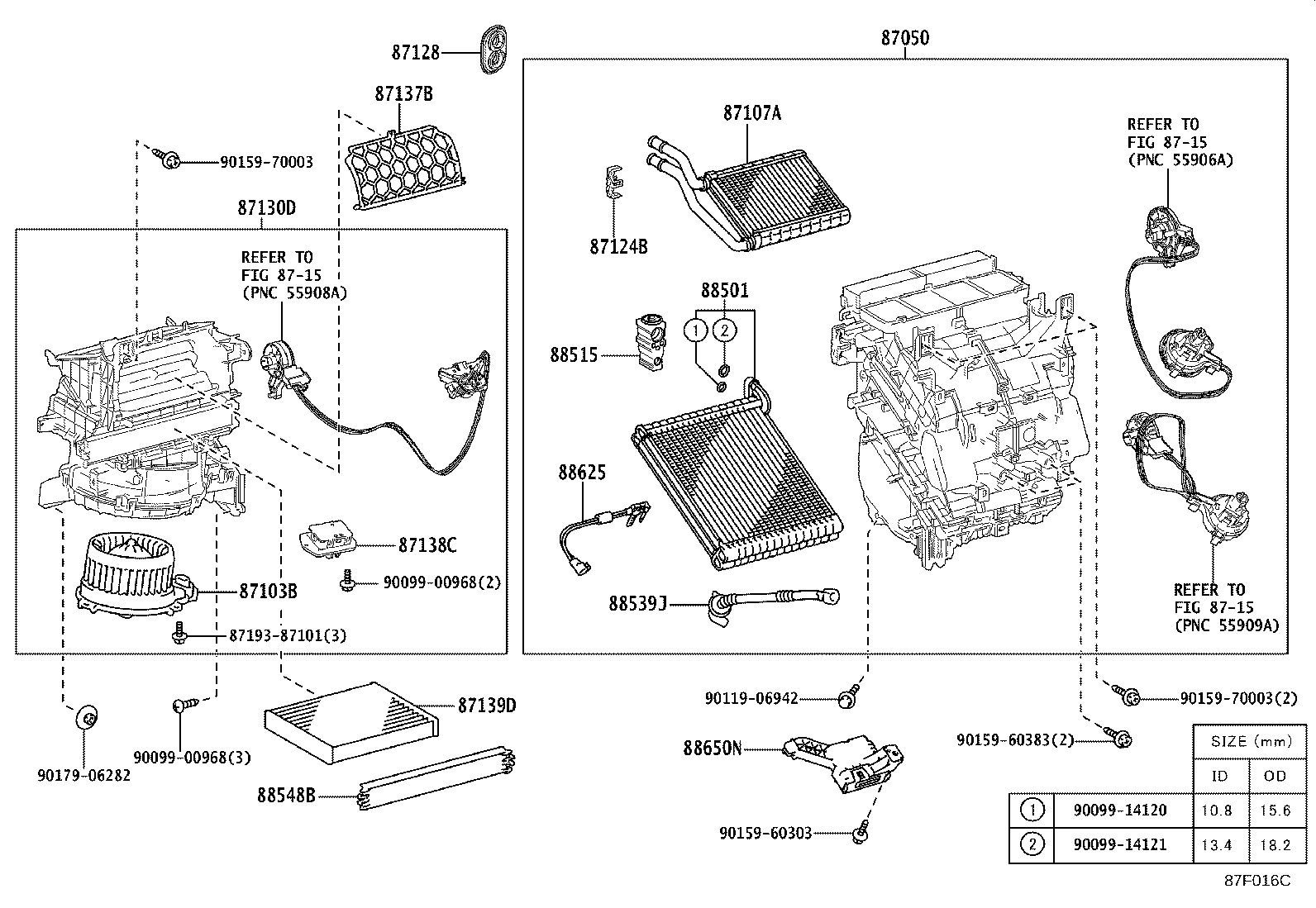

MANUAL AIR CONDITIONER

diagram 87050 87103B 87107A 87124B 87128 87130D 87137B 87138C 87139D 8715 8715 8715 8719387101 88501 88515 88539J 88548B 88625 88650N 9009900968 9009900968 9009914120 9009914121 9011906942 9015960303 9015960383 9015970003 9015970003 9017906282
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52480

NSP170..Q

 1
87050-52420

NSP170..N

 1
87050-52481

NSP170..Q

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12110

NSP170..N

 1
87103-52200

NHP170;NSP170..Q

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52070

NHP170,NSP170

 1
87128 - GROMMET, HEATER
90480-01696

NHP170,NSP170

 1
87130D - BLOWER ASSY
87130-52220

NSP170..N

 1
87130-52190

NHP170;NSP170..Q

 1
87137B - COVER, HEATER BLOWER
87137-52010

NHP170,NSP170

 1
87138C - RESISTOR, BLOWER
87138-52030

NSP170..N

 1
87139D - ELEMENT, AIR REFINER
87139-52040

NHP170,NSP170

POLLEN FILTER

 1
87139-50100

NHP170,NSP170

*DPF

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52130

NSP170..Q

 1
88501-12520

NSP170..N

 1
88515 - VALVE, COOLER EXPANSION
88515-52090

NSP170..Q

 1
88515-52100

NSP170..Q

 1
88515-52110

NSP170..Q

 1
88515-52090

NSP170..N

 1
88539J - HOSE, DRAIN COOLER
88539-52060

NHP170,NSP170

 1
88539-52030

NHP170,NSP170

 1
88548B - CASE, AIR FILTER
88548-52040

NHP170,NSP170

 1
88625 - THERMISTOR, COOLER, NO.1
88620-52010

NHP170;NSP170..N

 1
88620-12090

NSP170..Q

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52B40

NSP170..Q

 1
88650-52B20

NSP170..N

 1
Common parts
87193-87101
90099-00968
90099-14120
90099-14121
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
Linked diagrams
8715

(1506- )

Click highlighted areas on diagram

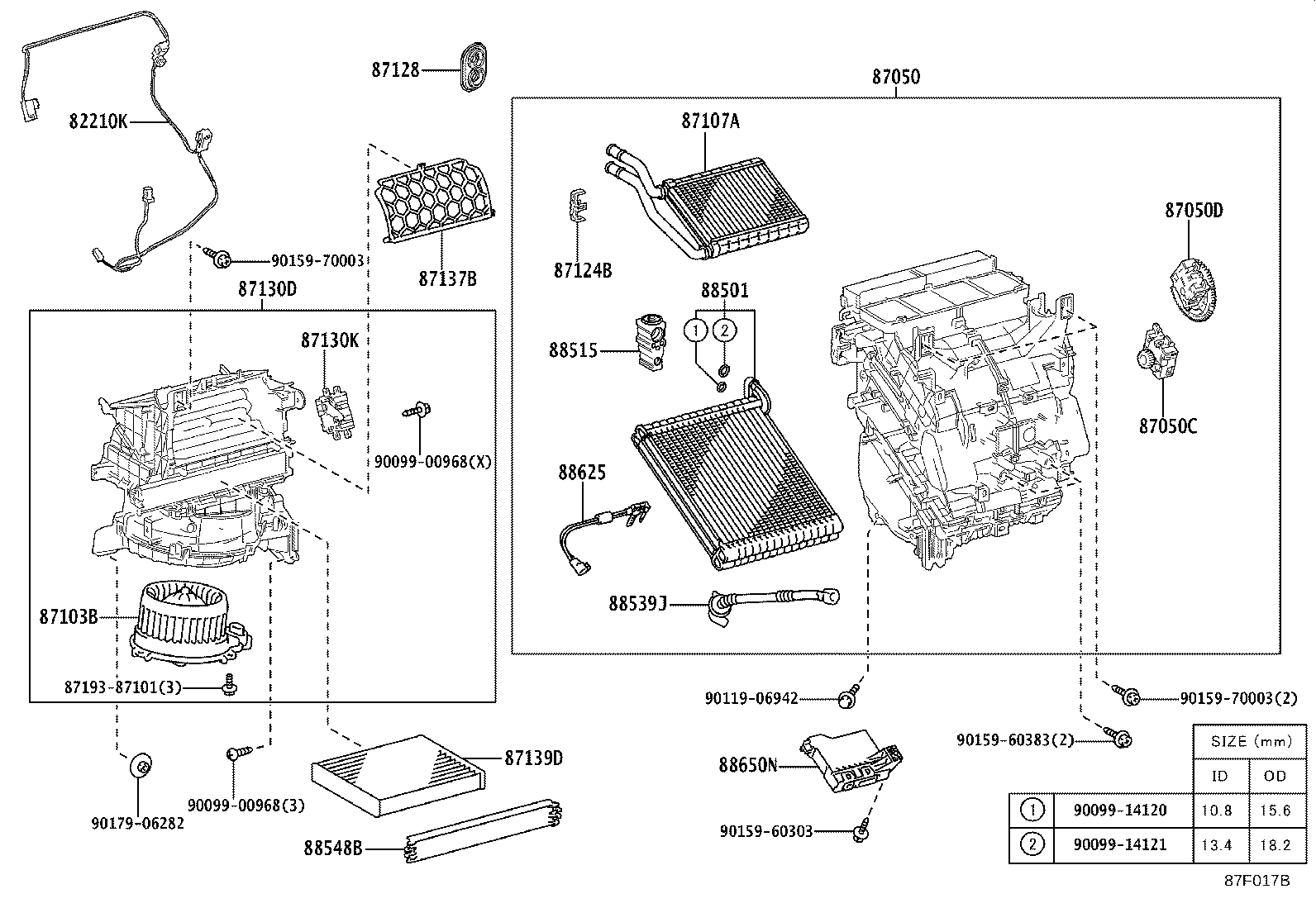

AUTO AIR CONDITIONER

diagram 82210K 87050 87050C 87050D 87103B 87107A 87124B 87128 87130D 87130K 87137B 87139D 8719387101 88501 88515 88539J 88548B 88625 88650N 9009900968 9009900968 9009914120 9009914121 9011906942 9015960303 9015960383 9015970003 9015970003 9017906282
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-52070

NHP170;NSP170..Q

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52480

NSP170..Q

 1
87050-52420

NSP170..N

 1
87050-52481

NSP170..Q

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-52130

NHP170;NSP170..Q

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-52140

NHP170;NSP170..Q

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12110

NSP170..N

 1
87103-52200

NHP170;NSP170..Q

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52070

NHP170,NSP170

 1
87128 - GROMMET, HEATER
90480-01696

NHP170,NSP170

 1
87130D - BLOWER ASSY
87130-52220

NSP170..N

 1
87130-52190

NHP170;NSP170..Q

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-52150

NHP170;NSP170..Q

 1
87137B - COVER, HEATER BLOWER
87137-52010

NHP170,NSP170

 1
87139D - ELEMENT, AIR REFINER
87139-52040

NHP170,NSP170

POLLEN FILTER

 1
87139-50100

NHP170,NSP170

*DPF

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52130

NSP170..Q

 1
88501-12520

NSP170..N

 1
88515 - VALVE, COOLER EXPANSION
88515-52090

NSP170..Q

 1
88515-52100

NSP170..Q

 1
88515-52110

NSP170..Q

 1
88515-52090

NSP170..N

 1
88539J - HOSE, DRAIN COOLER
88539-52060

NHP170,NSP170

 1
88539-52030

NHP170,NSP170

 1
88548B - CASE, AIR FILTER
88548-52040

NHP170,NSP170

 1
88625 - THERMISTOR, COOLER, NO.1
88620-52010

NHP170;NSP170..N

 1
88620-12090

NSP170..Q

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52B40

NSP170..Q

 1
88650-52B20

NSP170..N

 1
Common parts
87193-87101
90099-00968
90099-14120
90099-14121
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
