NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506-1809)

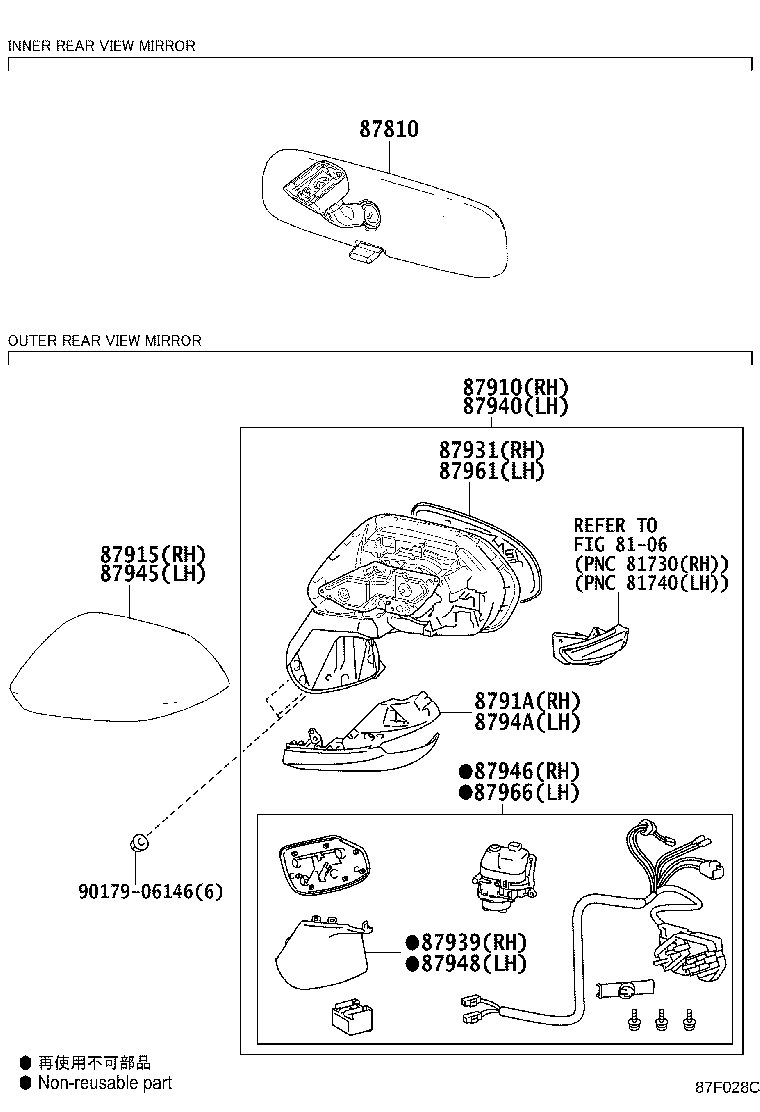

Click highlighted areas on diagram

diagram 8106 87810 87910 87915 8791A 87931 87939 87940 87945 87946 87948 8794A 87961 87966 9017906146
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-52041

NHP170,NSP170

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-52F30

NHP170,NSP170

NO PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-52220C0

NHP170,NSP170

BLACK MC.,209

 1
87915-52220B0

NHP170,NSP170

SILVER ME.,1F7

 1
87915-52220J0

NHP170,NSP170

BLUE ME.,8T7

 1
87915-52220D1

NHP170,NSP170

RED M.M.,3T8

 1
87915-52220A1

NHP170,NSP170

WHITE PEARL CS.,070

 1
87915-52220F1

NHP170,NSP170

AIR YELLOW,5B6

 1
87915-52220E1

NHP170,NSP170

VINTAGE BROWN PEARL CS.,4X4

 1
87915-52220G1

NHP170,NSP170

GREEN M.M.,6W8

 1
8791A - COVER, OUTER MIRROR, RH NO.2
8791A-52F30

NHP170,NSP170

 1
87931 - OUTER MIRROR, RH
87931-52F30

NHP170,NSP170

 1
87939 - COVER, OUTER MIRROR HOLE, RH
87939-52F30

NHP170,NSP170

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-52F20

NHP170,NSP170

NO PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-52220A1

NHP170,NSP170

WHITE PEARL CS.,070

 1
87945-52220D1

NHP170,NSP170

RED M.M.,3T8

 1
87945-52220B0

NHP170,NSP170

SILVER ME.,1F7

 1
87945-52220F1

NHP170,NSP170

AIR YELLOW,5B6

 1
87945-52220G1

NHP170,NSP170

GREEN M.M.,6W8

 1
87945-52220E1

NHP170,NSP170

VINTAGE BROWN PEARL CS.,4X4

 1
87945-52220C0

NHP170,NSP170

BLACK MC.,209

 1
87945-52220J0

NHP170,NSP170

BLUE ME.,8T7

 1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-52F30

NHP170,NSP170

 1
87948 - COVER, OUTER MIRROR HOLE, LH
87948-52F20

NHP170,NSP170

 1
8794A - COVER, OUTER MIRROR, LH NO.2
8794A-52F20

NHP170,NSP170

 1
87961 - MIRROR OUTER, LH
87961-52F20

NHP170,NSP170

 1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-52F20

NHP170,NSP170

 1
Common parts
90179-06146
Linked diagrams
8106
