NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

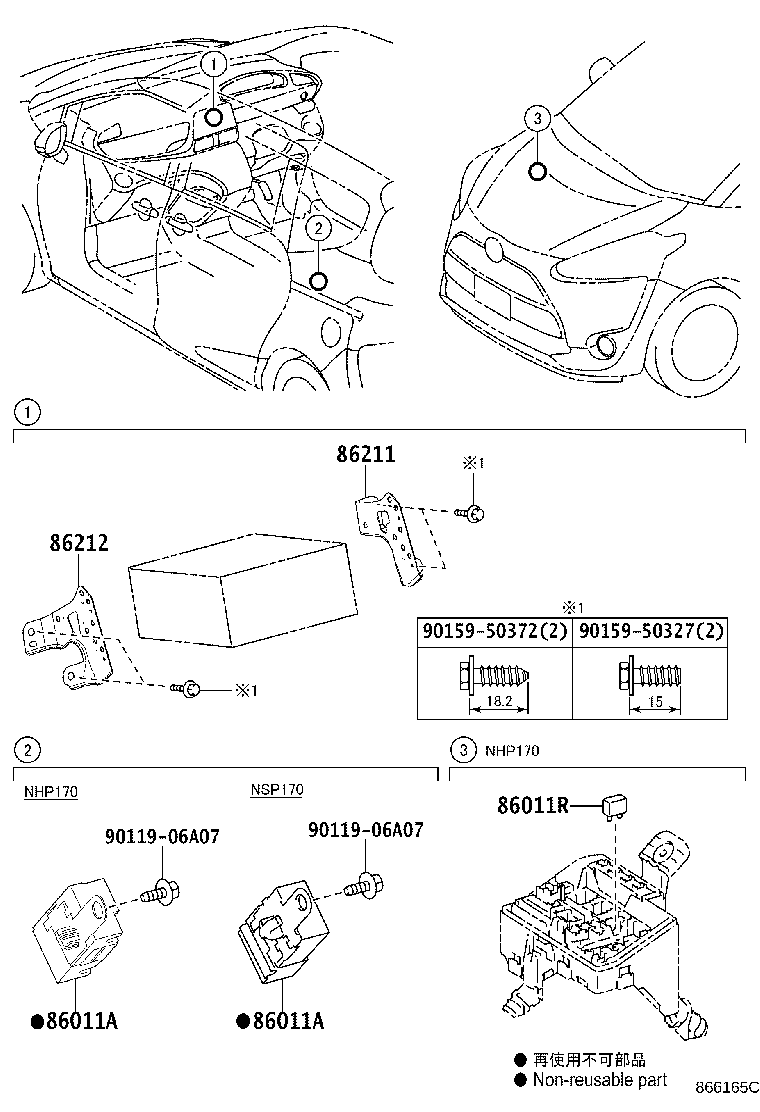

Click highlighted areas on diagram

diagram 86011A 86011A 86011R 86211 86212 9011906A07 9011906A07 9015950327 9015950372
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04189

NSP170

 1
86011A - CONDENSER, RADIO SETTING
90980-04189

NSP170

 1
86211 - BRACKET, RADIO, NO.1
86211-52330

NHP170,NSP170

 1
86212 - BRACKET, RADIO, NO.2
86212-52330

NHP170,NSP170

 1
Common parts
90119-06A07
90159-50327
90159-50372
