NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506-1809)

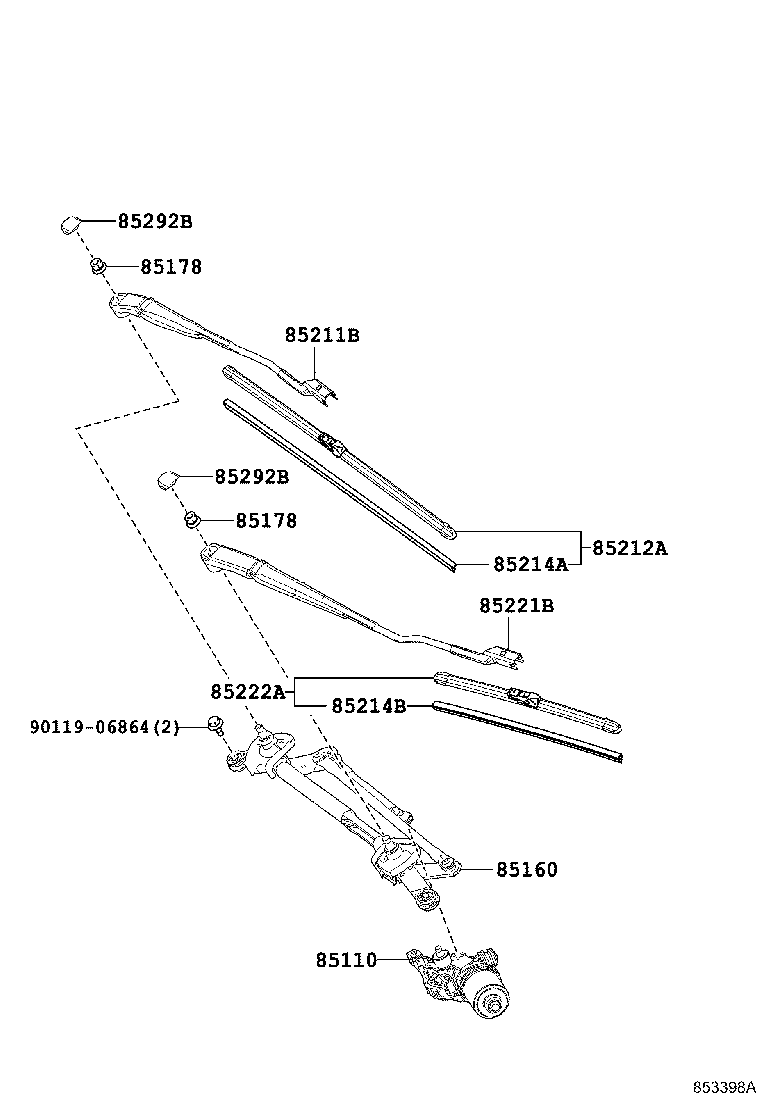

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 9011906864
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-52712

NHP170,NSP170

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-52400

NHP170,NSP170

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

NHP170,NSP170

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

NHP170,NSP170

 2
85211B - ARM, FRONT WIPER, RH
85211-52541

NHP170,NSP170

 1
85211-52540

NHP170,NSP170

 1
85212A - BLADE, FR WIPER, RH
85212-52203

NHP170,NSP170

 1
85212-52202

NHP170,NSP170

 1
85214A - RUBBER, WIPER, RH
85214-10140

NHP170,NSP170

 1
85214B - RUBBER, WIPER, LH
85214-58070

NHP170,NSP170

 1
85221B - ARM, FRONT WIPER, LH
85221-52500

NHP170,NSP170

 1
85222A - BLADE, FR WIPER, LH
85222-52202

NHP170,NSP170

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NHP170,NSP170

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NHP170,NSP170

 2
Common parts
90119-06864
