NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )
Click highlighted areas on diagram

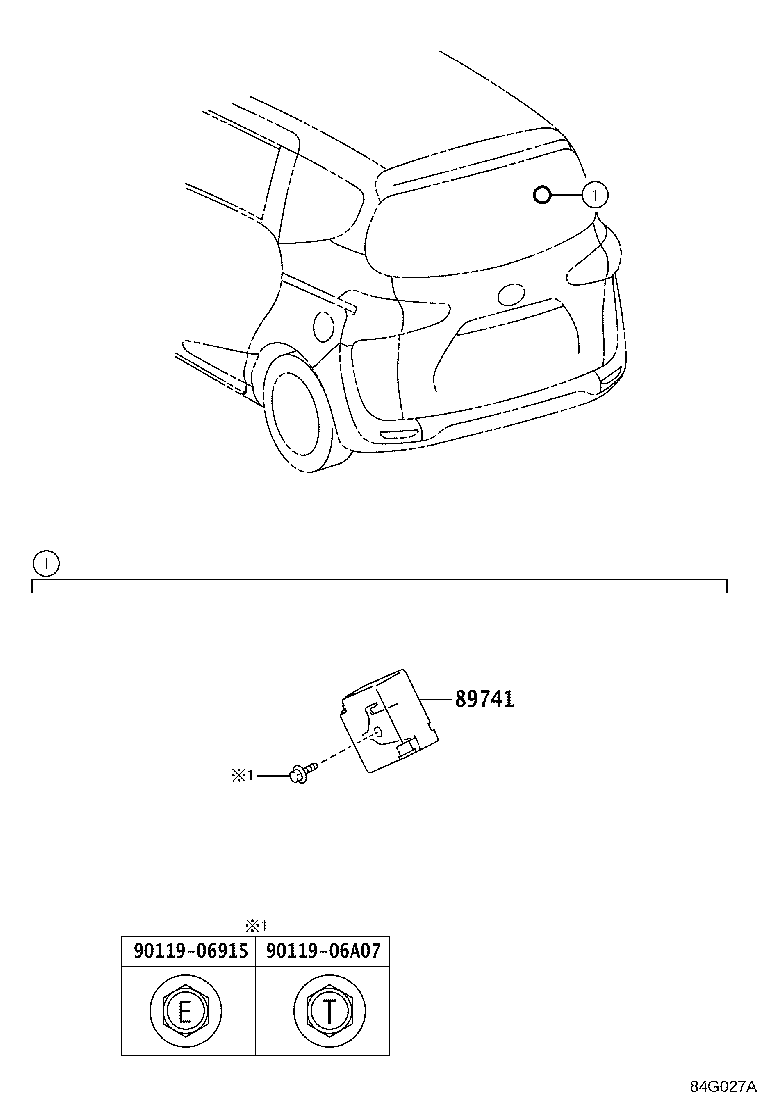

W/O(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-52630 |
NHP170,NSP170..N SMART ENTRY-WITH(FRONT DOOR & BACK DOOR) |
1 | ||
| 89741-52630 |
NHP170,NSP170..N |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A07 | ||||
(1506- )
Click highlighted areas on diagram

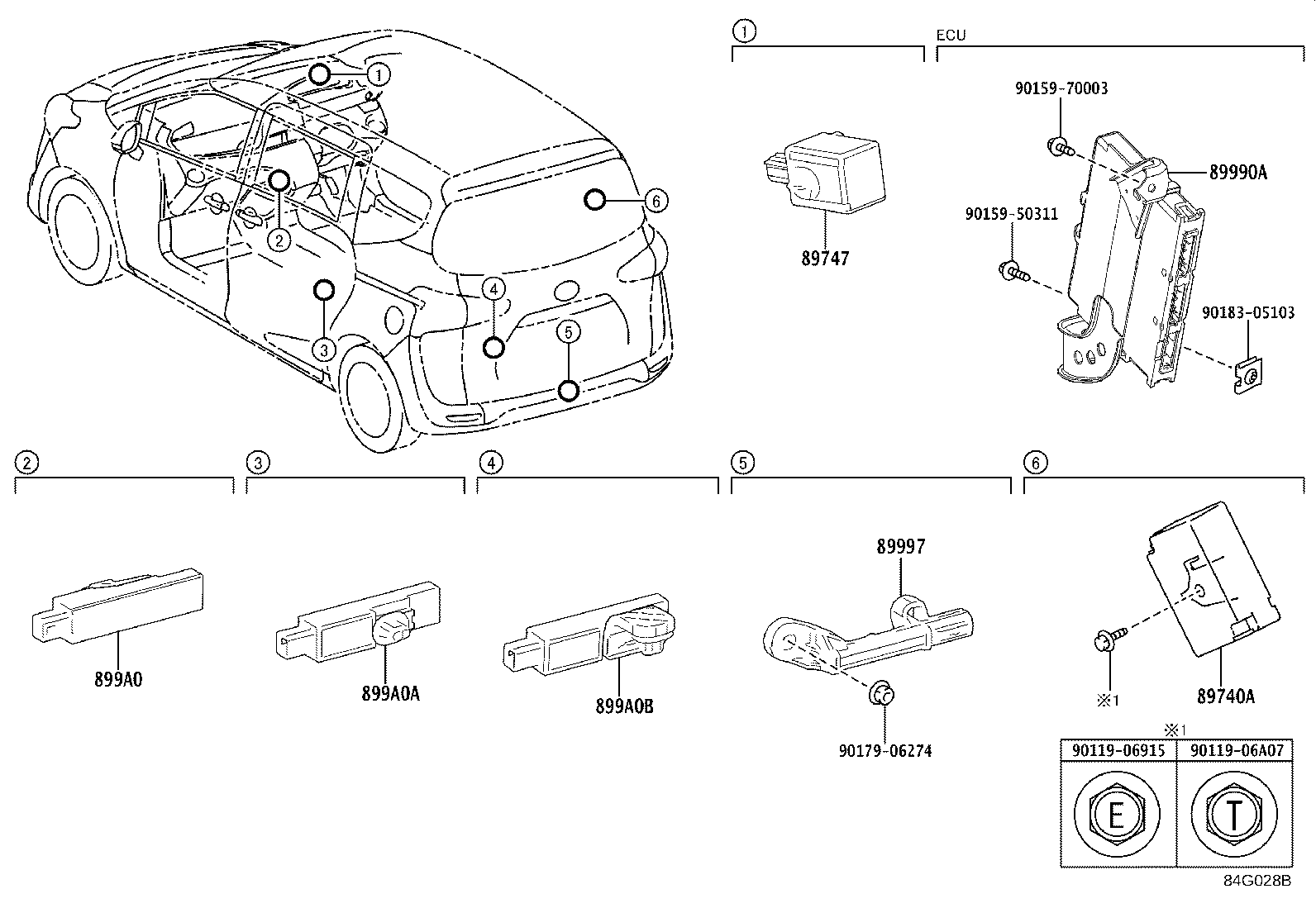

W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89740A - RECEIVER ASSY, SMART DOOR CONTROL | ||||
| 89740-52460 |
NHP170,NSP170..Q |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-30040 |
NHP170,NSP170..Q |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-52480 |
NSP170..Q |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-30100 |
NHP170,NSP170..Q |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-60010 |
NHP170,NSP170..Q |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-47010 |
NHP170,NSP170..Q |
1 | ||
| 899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 899A0-47030 |
NHP170,NSP170..Q |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A07 | ||||
| 90159-50311 | ||||
| 90159-70003 | ||||
| 90179-06274 | ||||
| 90183-05103 | ||||
