NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

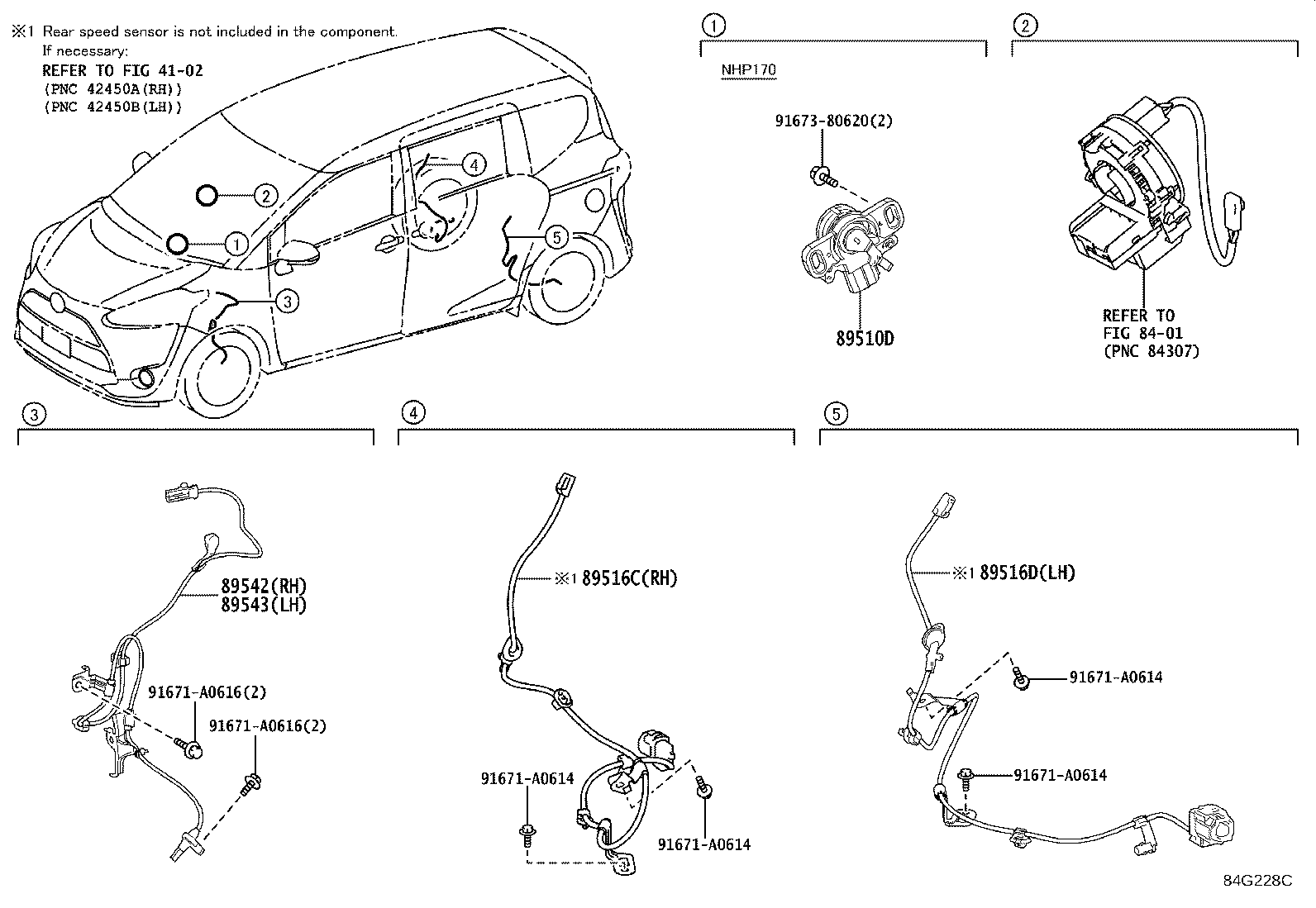

Click highlighted areas on diagram

diagram 4102 8401 89510D 89516C 89516D 89542 89543 91671A0614 91671A0614 91671A0614 91671A0614 91671A0616 91671A0616 9167380620
Part # Description Qty Price
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-52170

NHP170,NSP170

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-52180

NHP170,NSP170

 1
89542 - SENSOR, SPEED, FRONT RH
89542-52100

NHP170,NSP170

 1
89543 - SENSOR, SPEED, FRONT LH
89543-52100

NHP170,NSP170

 1
Common parts
91671-A0614
91671-A0616
91673-80620
Linked diagrams
4102
8401
