NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)

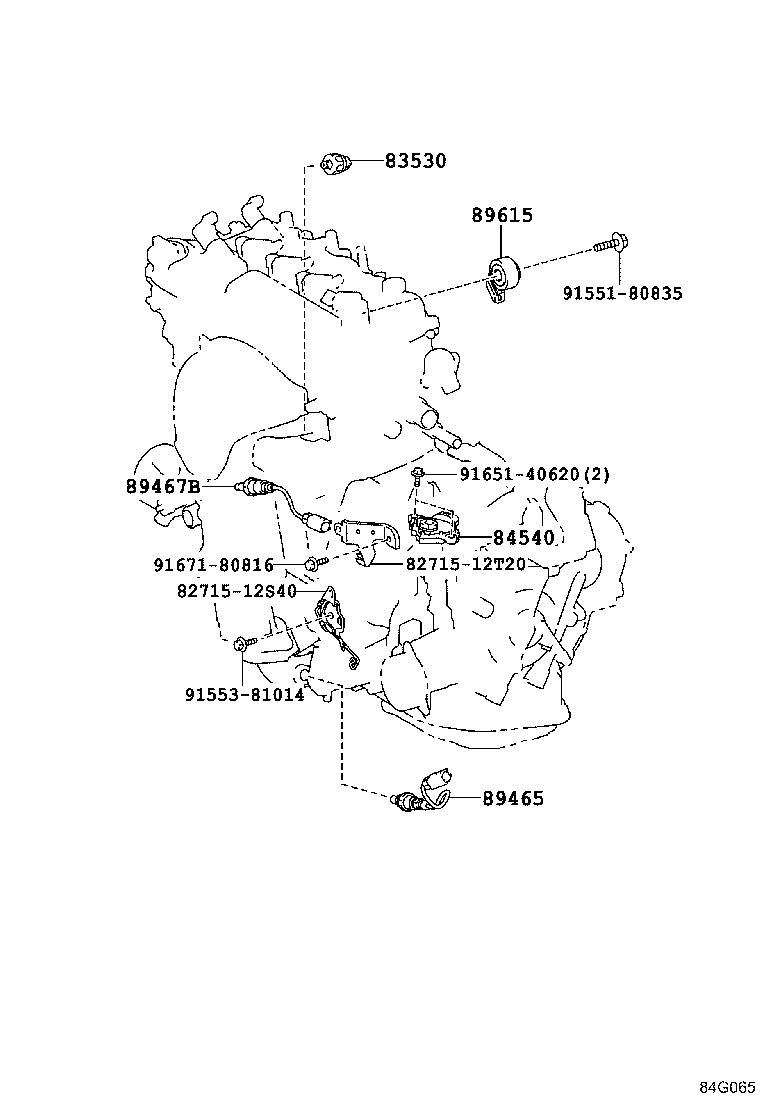

ILLUST NO. 1 OF 8(1506- )NSP170
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NHP170,NSP170 YAZAKI |
1 | ||
| 83530-28020 |
NHP170,NSP170 DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
NSP170 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52740 |
NSP170 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52240 |
NSP170 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 82715-12S40 | ||||
| 82715-12T20 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||
| 91671-80816 | ||||

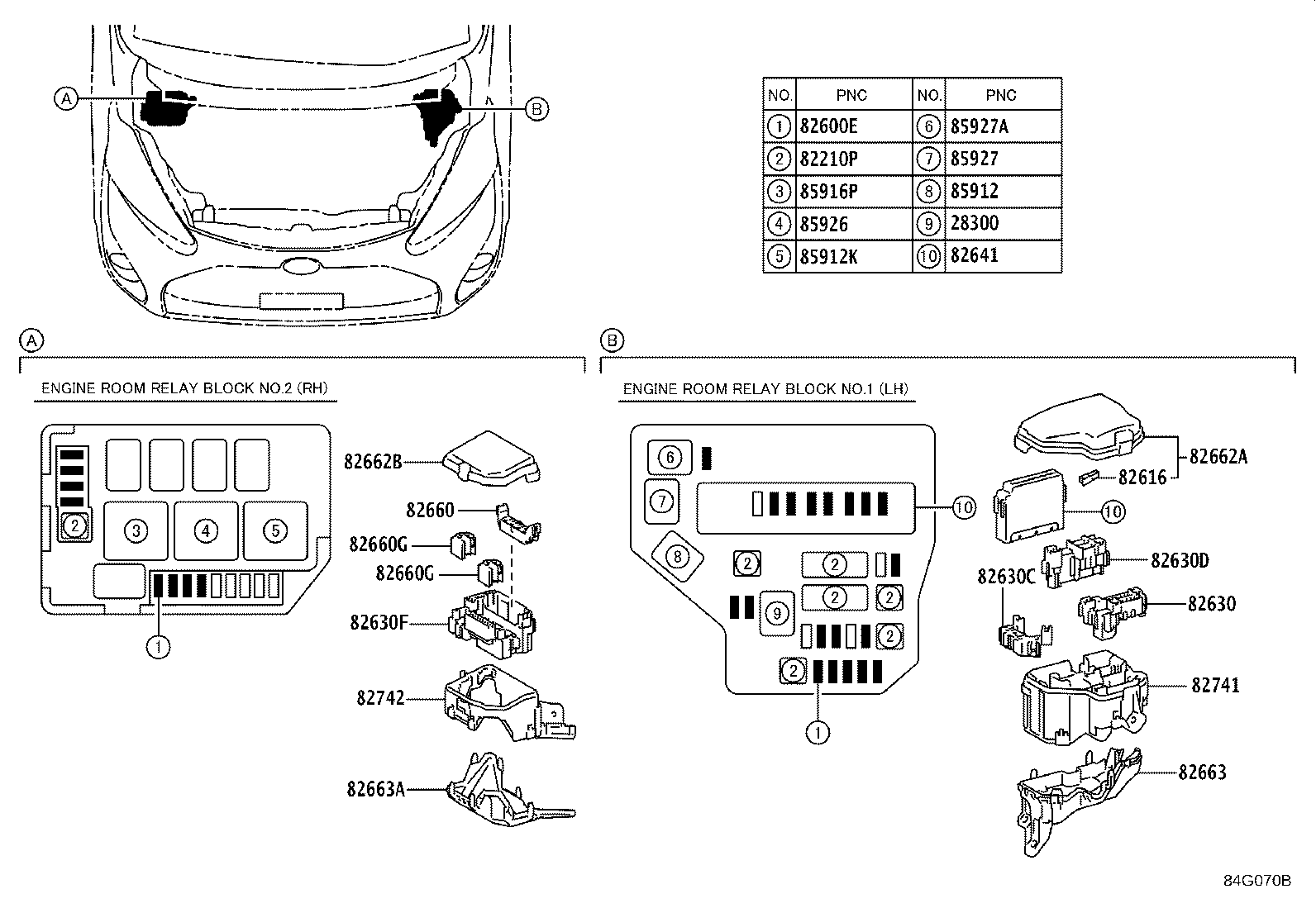

ILLUST NO. 3 OF 8(1506- )NSP170
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
2NRFKE..NSP170 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08301 |
NSP170 50A-30A-40A,FEMALE |
1 | ||
| 90982-08302 |
NHP170,NSP170 50A-30A-50A,FEMALE |
1 | ||
| 90982-08295 |
NHP170,NSP170 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
NHP170,NSP170 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
NSP170 80A,TERM.:FEMALE,BLK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09024 |
NHP170,NSP170 25A,MINI FUSE |
1 | ||
| 90982-09019 |
NHP170,NSP170 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
NHP170,NSP170 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NHP170,NSP170 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
NHP170,NSP170 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
NHP170,NSP170 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NHP170,NSP170 10A,MINI FUSE,RED |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NHP170,NSP170 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-52010 |
NSP170 |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-52020 |
NSP170 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-52030 |
NSP170 |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-52040 |
NSP170 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-52030 |
NSP170 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-52120 |
NSP170 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NSP170 |
2 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NSP170 |
2 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52A40 |
NSP170 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52A30 |
NSP170 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52080 |
NSP170 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52090 |
NSP170 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12130 |
NSP170 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52080 |
NSP170 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
NSP170 |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90987-02025 |
NSP170 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NHP170,NSP170 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
NHP170,NSP170 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NSP170 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NSP170 |
1 | ||

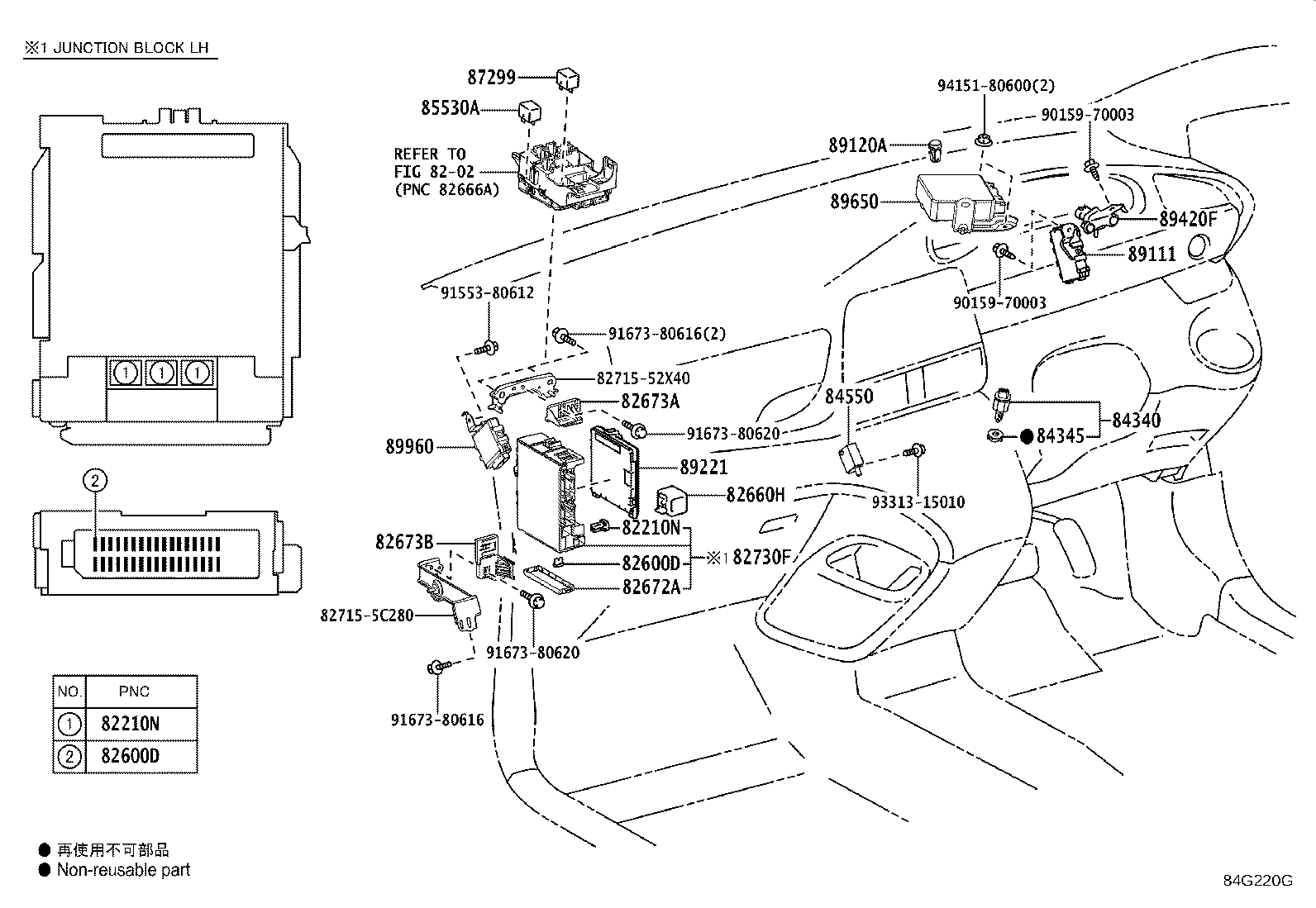

ILLUST NO. 4 OF 8(1506- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NHP170,NSP170 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NHP170,NSP170 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
NHP170,NSP170 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
NHP170,NSP170 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
NHP170,NSP170 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
NHP170,NSP170 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NHP170,NSP170 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NHP170,NSP170 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
NHP170,NSP170 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
NHP170,NSP170 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
NHP170,NSP170 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
NHP170,NSP170 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NHP170,NSP170 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NHP170,NSP170 20A,MINI FUSE,YELLOW |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-37070 |
NSP170 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-52110 |
NHP170,NSP170 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-52040 |
NHP170,NSP170 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-52140 |
NHP170,NSP170 |
1 | ||
| 82730F - BLOCK ASSY, JUNCTION, LH | ||||
| 82730-52Q91 |
NHP170,NSP170 |
1 | ||
| 82730-52Q90 |
NHP170,NSP170 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49085 |
NHP170,NSP170 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NHP170,NSP170 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NHP170,NSP170 |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-02025 |
NSP170..N |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
NHP170,NSP170..Q HEADLAMP-LED |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-52620 |
NHP170,NSP170 |
1 | ||
| 89220-52630 |
NHP170,NSP170..Q HEADLAMP-LED |
1 | ||
| 89420F - SENSOR ASSY, VACUUM | ||||
| 89420-52090 |
NSP170 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52A20 |
NSP170 |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-52700 |
NHP170,NSP170..Q HEADLAMP-LED |
1 | ||
| Common parts | ||||
| 82715-52X40 | ||||
| 82715-5C280 | ||||
| 90159-70003 | ||||
| 91553-80612 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 93313-15010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

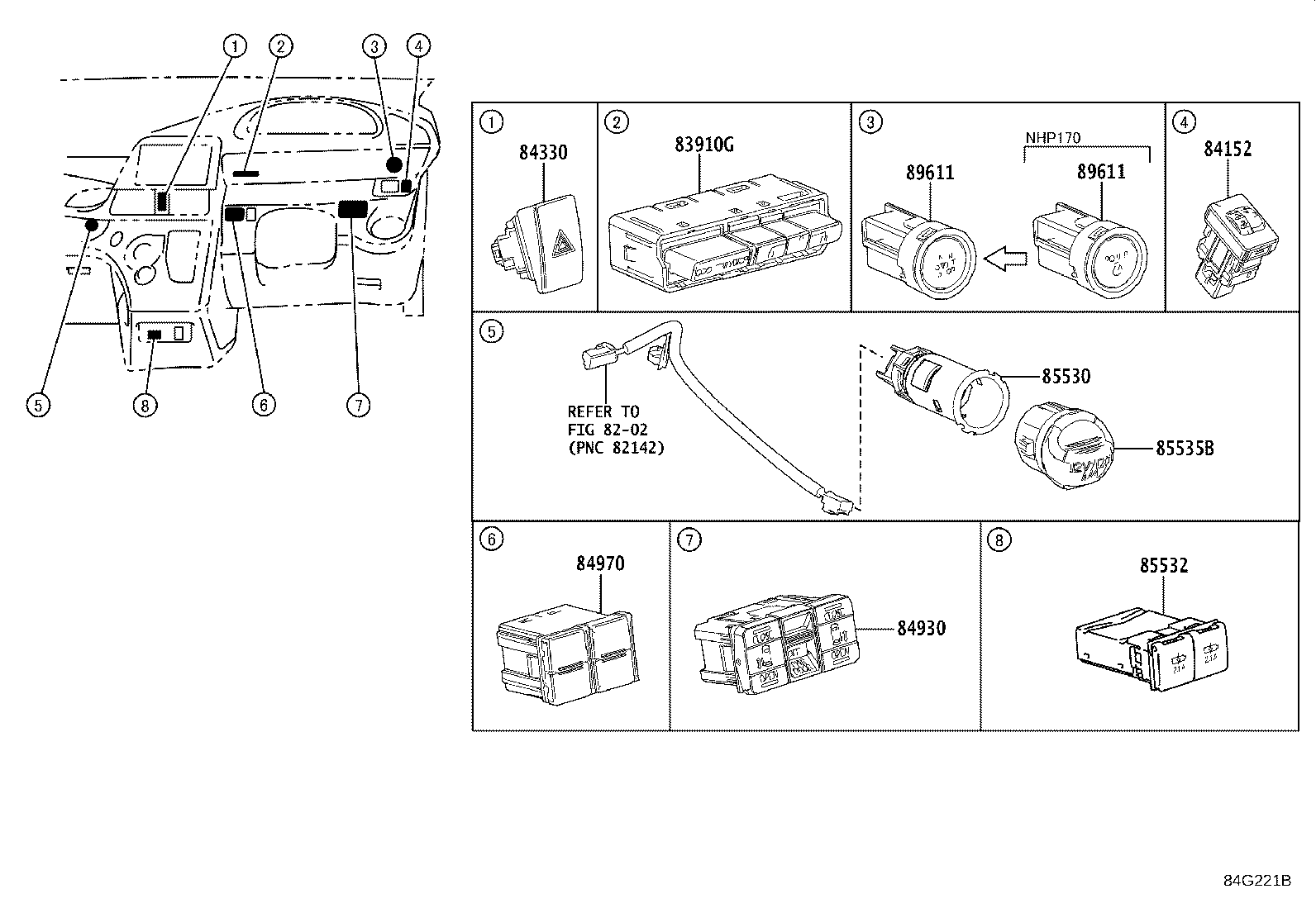

ILLUST NO. 5 OF 8(1506- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 84975-52300 |
NHP170;NSP170..Q |
1 | ||
| 84975-52290 |
NSP170..N |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52161 |
NHP170,NSP170 |
1 | ||
| 84152-52170 |
NHP170,NSP170 HEADLAMP-LED |
1 | ||
| 84152-52161 |
NHP170,NSP170 HEADLAMP-LED |
1 | ||
| 84152-52170 |
NHP170,NSP170 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-52160 |
NHP170,NSP170 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-28160 |
NHP170,NSP170..N |
1 | ||
| 84930-28170 |
NHP170,NSP170..Q |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-52020 |
NSP170 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-52010 |
NHP170,NSP170 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52052 |
NHP170,NSP170 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52033 |
NSP170..Q |
1 | ||
| 89611-52034 |
NSP170..Q |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52033 |
NSP170..Q |
1 | ||
| 89611-52034 |
NSP170..Q |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||

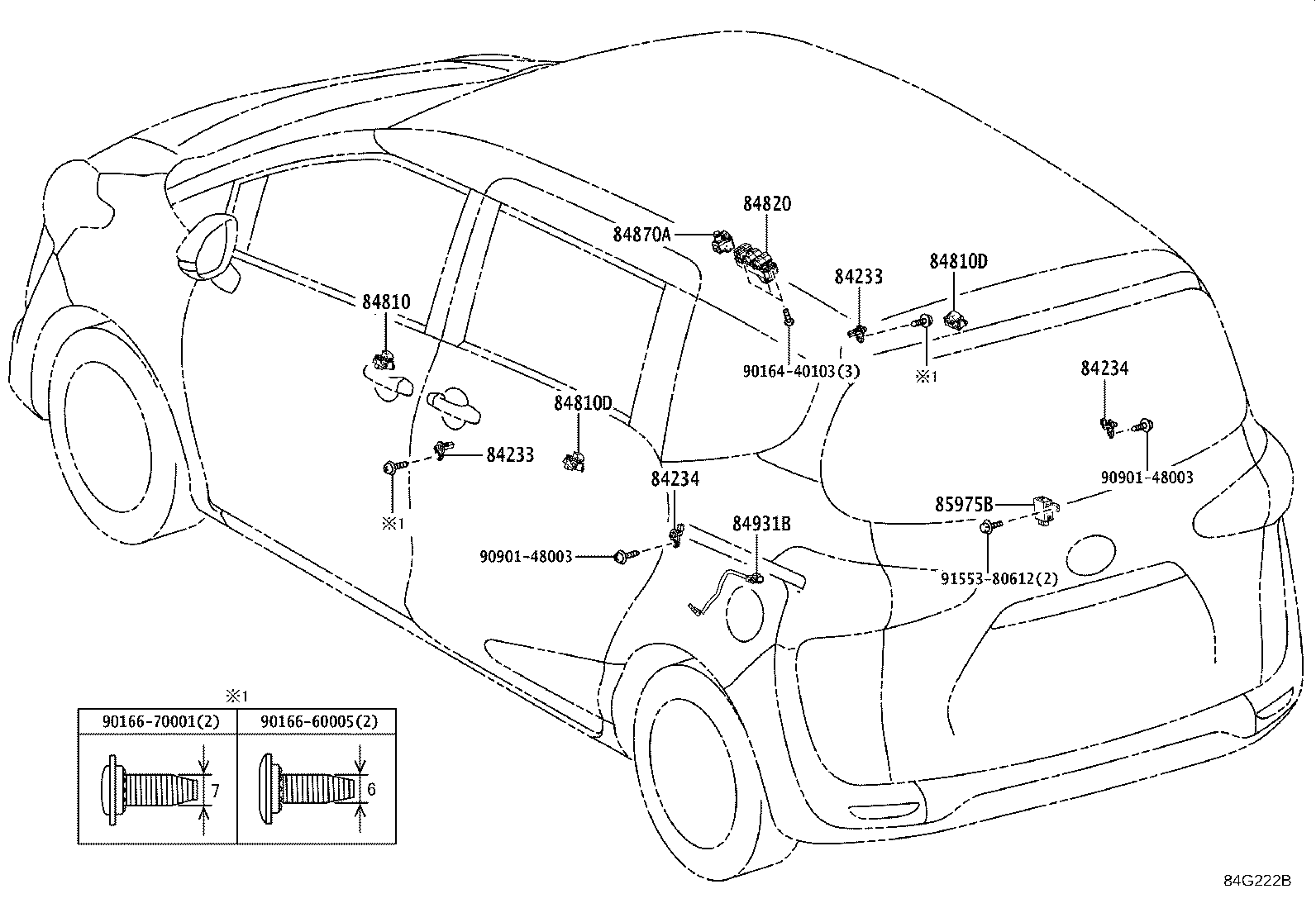

ILLUST NO. 7 OF 8(1506- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NHP170,NSP170 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NHP170,NSP170 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NHP170,NSP170 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NHP170,NSP170 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52080 |
NHP170,NSP170 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52080 |
NHP170,NSP170 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52080 |
NHP170,NSP170 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-52340 |
NHP170,NSP170 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52100 |
NHP170,NSP170 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-28070 |
NHP170,NSP170 |
1 | ||
| 85975B - RELAY, SLIDE DOOR CLOSER, RH | ||||
| 85975-52050 |
NHP170,NSP170..N |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90901-48003 | ||||
| 91553-80612 | ||||

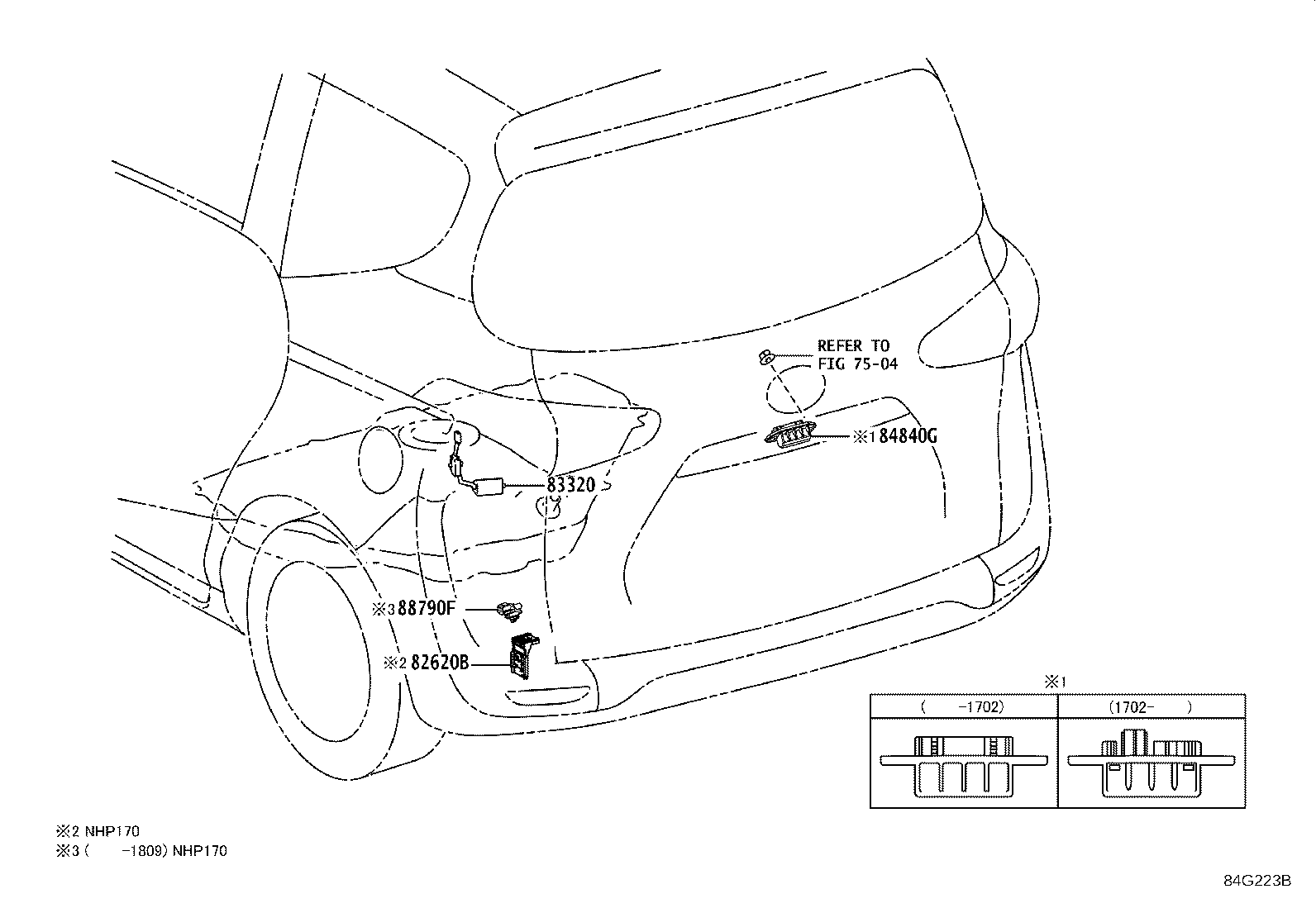

ILLUST NO. 8 OF 8(1506-1809)
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52140 |
NHP170,NSP170 |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28020 |
NHP170,NSP170..N |
1 | ||
| 84840-47030 |
NHP170,NSP170..N |
1 | ||
| 84840-47040 |
NHP170,NSP170..Q |
1 | ||
| 84840-28050 |
NHP170,NSP170..Q |
1 | ||
| Linked diagrams | ||||
| 7504 | ||||

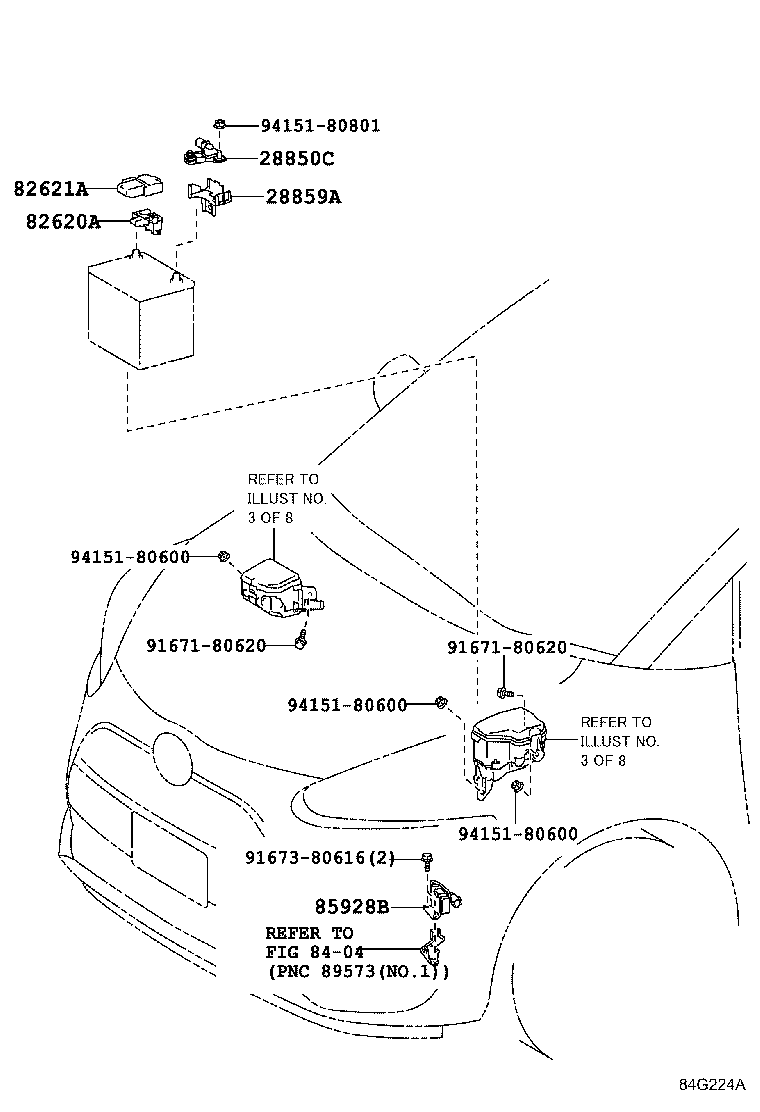

ILLUST NO. 2 OF 8(1506- )NSP170
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-36030 |
2NRFKE..NSP170 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-47020 |
2NRFKE..NSP170 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52060 |
NSP170 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52160 |
NSP170 |
1 | ||
| 82621-52150 |
NSP170 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52032 |
NSP170 |
1 | ||
| Common parts | ||||
| 91671-80620 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8404 | ||||

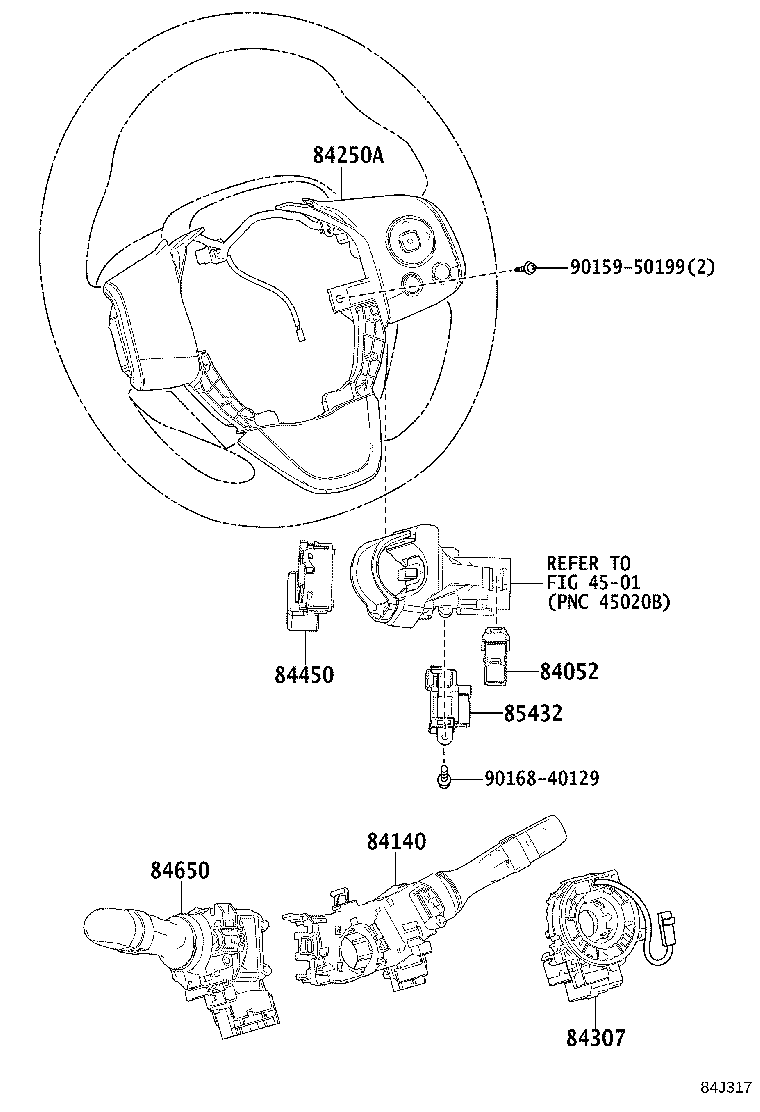

ILLUST NO. 6 OF 8(1506- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NHP170,NSP170..N |
1 | ||
| 84052-71010 |
NHP170,NSP170..N SMART ENTRY-WITH(FRONT DOOR & BACK DOOR) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42070 |
NHP170,NSP170..Q HEADLAMP-LED |
1 | ||
| 84140-42030 |
NHP170,NSP170 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-52260C2 |
NHP170;NSP170..Q PIANOBLACK_22BK22,TRIM0#,2# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-12130 |
NSP170..N |
1 | ||
| 84307-47060 |
NHP170;NSP170..Q |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52020 |
NHP170,NSP170..N |
1 | ||
| 84450-52020 |
NHP170,NSP170..N SMART ENTRY-WITH(FRONT DOOR & BACK DOOR) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52251 |
NHP170,NSP170 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-52010 |
NHP170,NSP170..N SMART ENTRY-WITH(FRONT DOOR & BACK DOOR) |
1 | ||
| 85432-52010 |
NHP170,NSP170..N |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
