Toyota Sienta (jpp) NSP170 WIRING & CLAMP

NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018

Engine 2NRFKE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

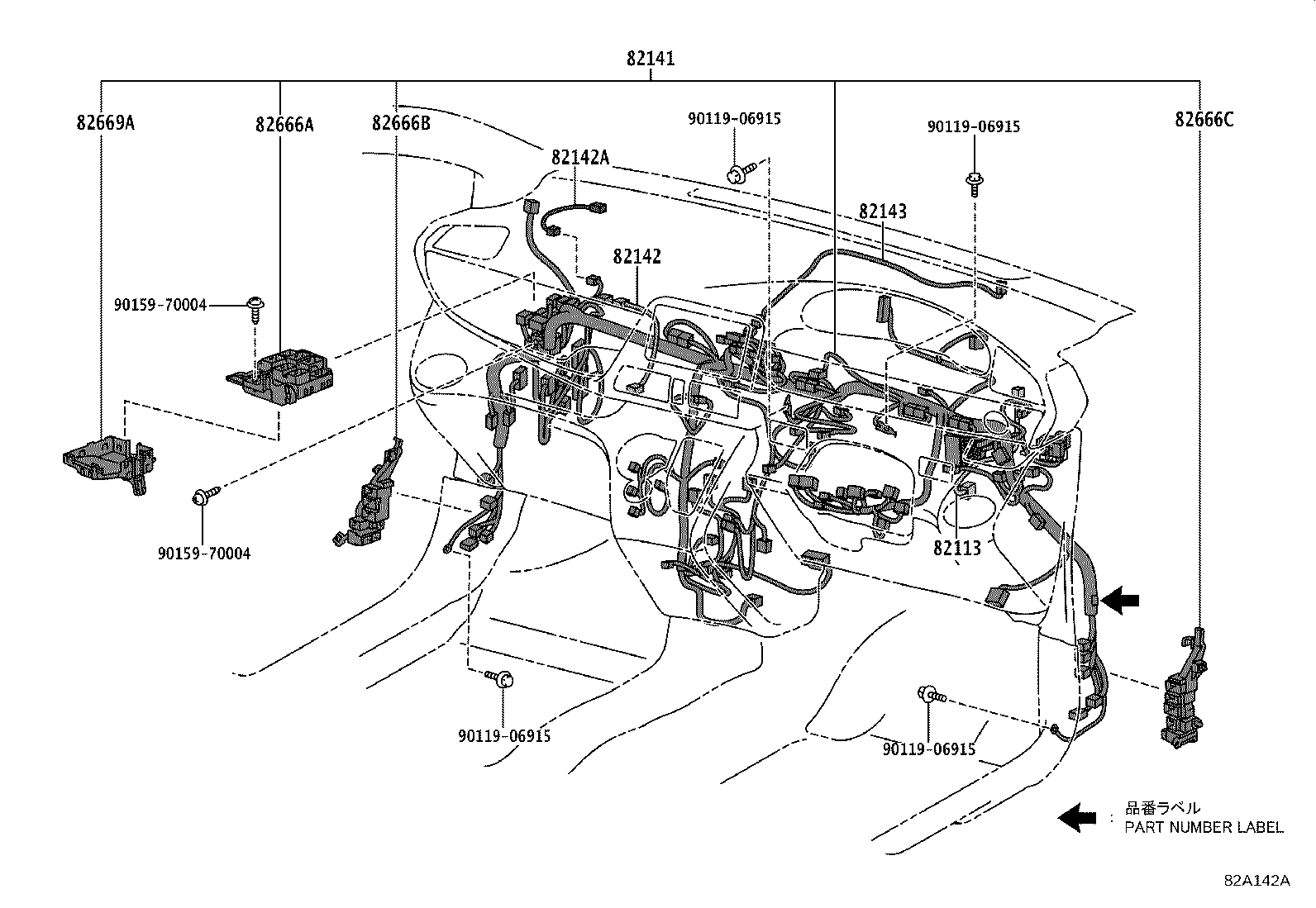

ILLUST NO. 3 OF 9(1506- )

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82113 - WIRE, ENGINE ROOM, NO.3
82113-52040	NHP170,NSP170	06/2015 - 09/2018	1
82141 - WIRE, INSTRUMENT PANEL
82145-52X70	NSP170..N	06/2015 - 06/2016	1
82145-52X90	NSP170..Q	06/2015 - 09/2018	1
82145-52X71	NSP170..N	07/2016 - 09/2018	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-52570	NHP170,NSP170	06/2015 - 09/2018	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-12A60	NHP170,NSP170	06/2015 - 09/2018	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-52040	NHP170;NSP170..Q	06/2015 - 09/2018	1
82143-52030	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
82666A - HOLDER, CONNECTOR NO.2
82666-52150	NHP170,NSP170	06/2015 - 09/2018	1
82666B - HOLDER, CONNECTOR NO.3
82666-52230	NHP170,NSP170	06/2015 - 09/2018	1
82666C - HOLDER, CONNECTOR NO.4
82666-52240	NHP170,NSP170	06/2015 - 09/2018	1
82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER
82669-52010	NHP170,NSP170	06/2015 - 09/2018	1
Common parts
90119-06915
90159-70004

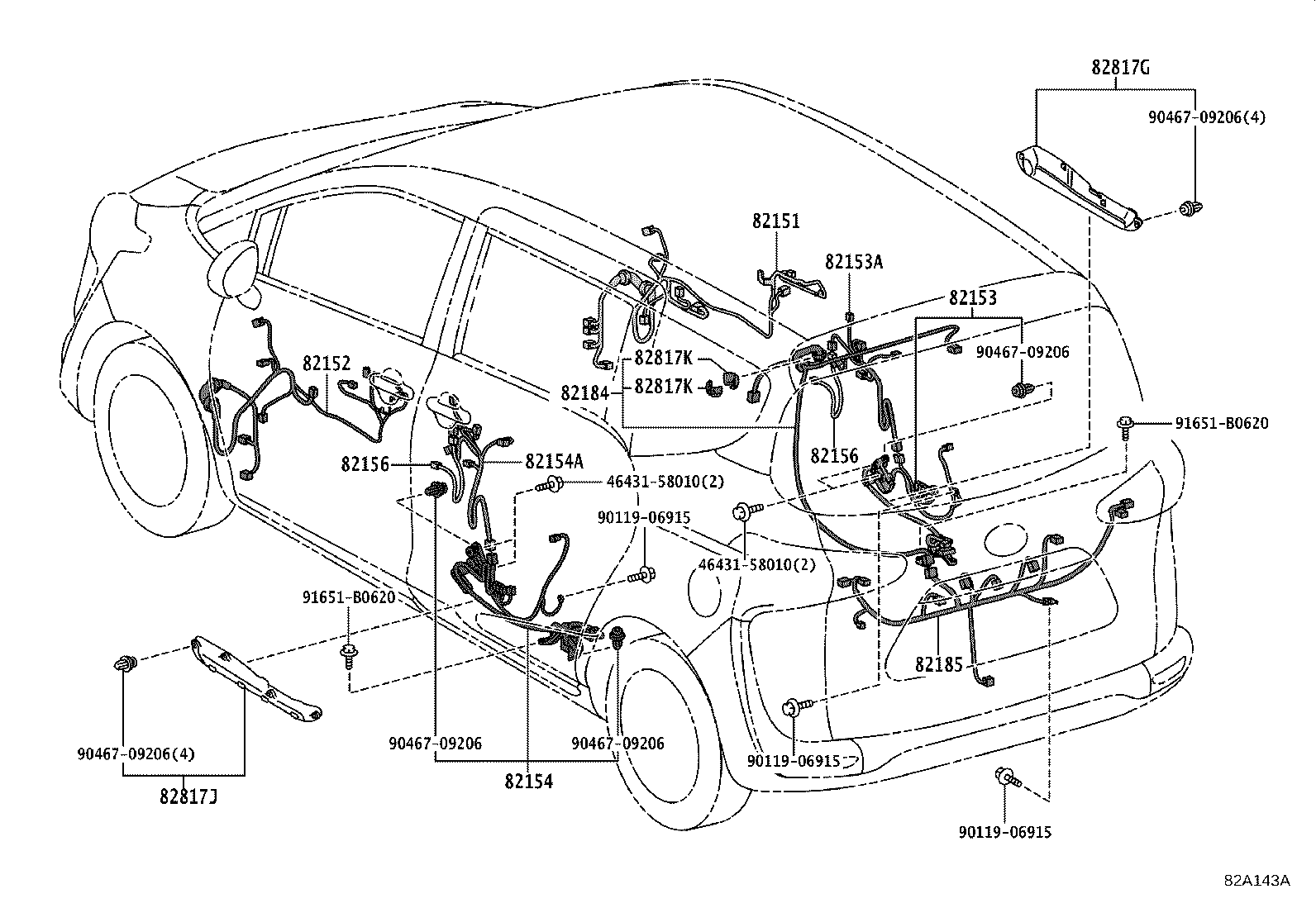

ILLUST NO. 4 OF 9(1506- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-52W50	NHP170,NSP170..N	06/2015 - 09/2018	1
82151-52W70	NHP170,NSP170..Q	06/2015 - 09/2018	1
82152 - WIRE, FRONT DOOR, LH
82152-52U10	NHP170,NSP170..Q	06/2015 - 09/2018	1
82152-52T90	NHP170,NSP170..N	06/2015 - 09/2018	1
82153 - WIRE, REAR DOOR, NO.1
82153-52860	NHP170,NSP170..Q	06/2015 - 09/2018	1
82153-52850	NHP170,NSP170..N	06/2015 - 09/2018	1
82153A - WIRE, REAR DOOR, RH
82157-52010	NHP170,NSP170..N	06/2015 - 09/2018	1
82157-52020	NHP170,NSP170..Q	06/2015 - 09/2018	1
82154 - WIRE, REAR DOOR, NO.2
82154-52540	NHP170,NSP170	06/2015 - 09/2018	1
82154A - WIRE, REAR DOOR, LH
82158-52020	NHP170,NSP170	06/2015 - 09/2018	1
82156 - WIRE, SLIDE DOOR
82156-52020	NHP170,NSP170..Q RH	06/2015 - 09/2018	1
82156-52020	NHP170,NSP170 LH	06/2015 - 09/2018	1
82156 - WIRE, SLIDE DOOR
82156-52020	NHP170,NSP170..Q RH	06/2015 - 09/2018	1
82156-52020	NHP170,NSP170 LH	06/2015 - 09/2018	1
82184 - WIRE, BACK DOOR, NO.1
82184-52880	NHP170,NSP170	06/2015 - 09/2018	1
82185 - WIRE, BACK DOOR, NO.2
82185-52A80	NHP170,NSP170..Q HEADLAMP-LED,REFER TO PNC 84840G	06/2015 - 02/2017	1
82185-52A61	NHP170,NSP170 REFER TO PNC 84840G	02/2017 - 08/2018	1
82185-52A81	NHP170,NSP170..Q HEADLAMP-LED,REFER TO PNC 84840G	02/2017 - 08/2018	1
82185-52A60	NHP170,NSP170 REFER TO PNC 84840G	06/2015 - 02/2017	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-52J50	NHP170,NSP170	06/2015 - 09/2018	1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-52J60	NHP170,NSP170	06/2015 - 09/2018	1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-52P80	NHP170,NSP170	06/2015 - 08/2018	2
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-52P80	NHP170,NSP170	06/2015 - 08/2018	2
Common parts
46431-58010
90119-06915
90467-09206
91651-B0620

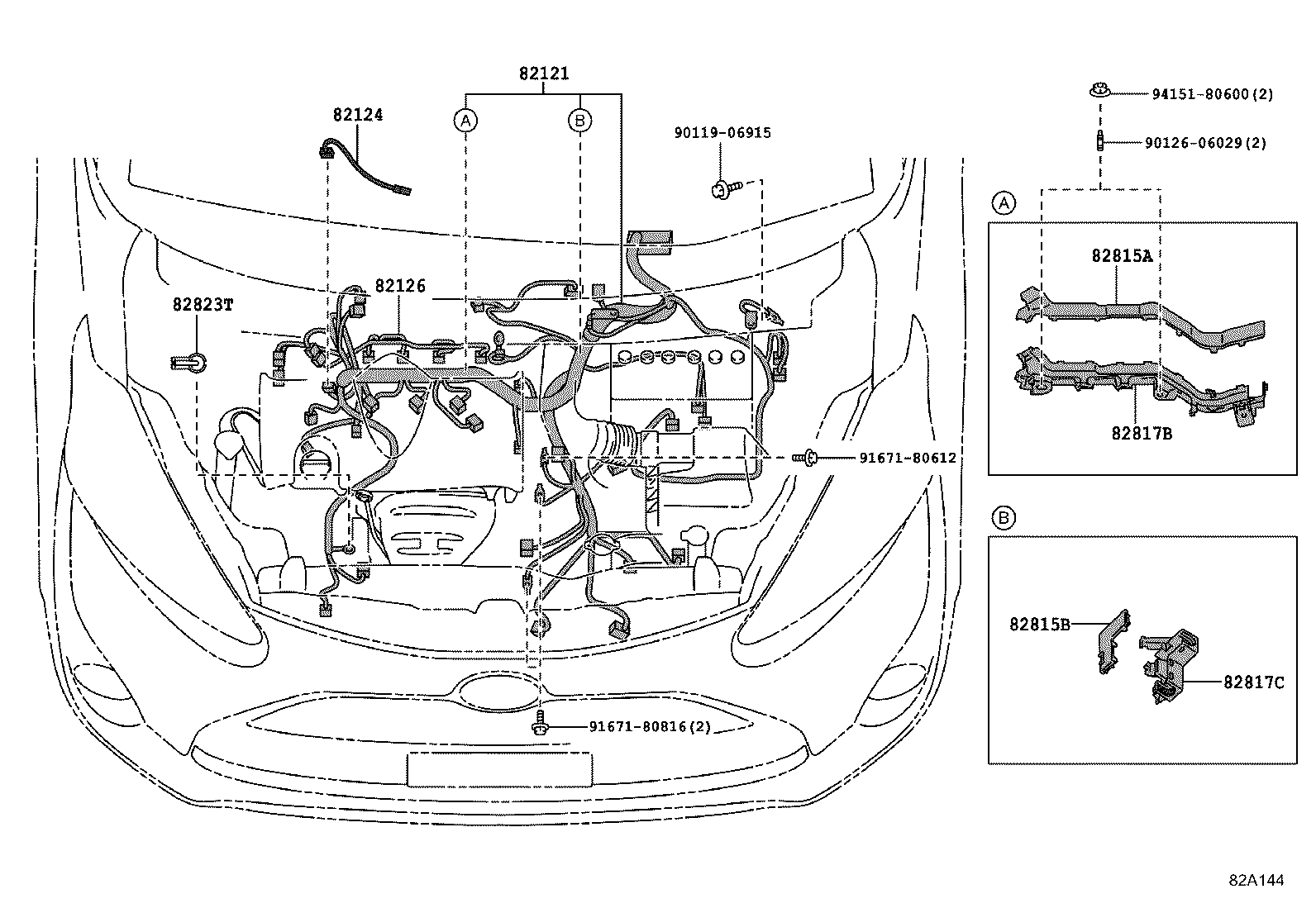

ILLUST NO. 2 OF 9(1506- )NSP170

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-52T80	NSP170	06/2015 - 09/2018	1
82124 - WIRE, ENGINE, NO.4
82124-12150	NSP170	06/2015 - 09/2018	1
82126 - WIRE, ENGINE
82126-52010	NSP170	06/2015 - 09/2018	1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-52380	NSP170	06/2015 - 09/2018	1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-52400	NSP170	06/2015 - 09/2018	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-52A90	NSP170	06/2015 - 09/2018	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-52G30	NSP170	06/2015 - 09/2018	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	NSP170	06/2015 - 09/2018	1
Common parts
90119-06915
90126-06029
91671-80612
91671-80816
94151-80600

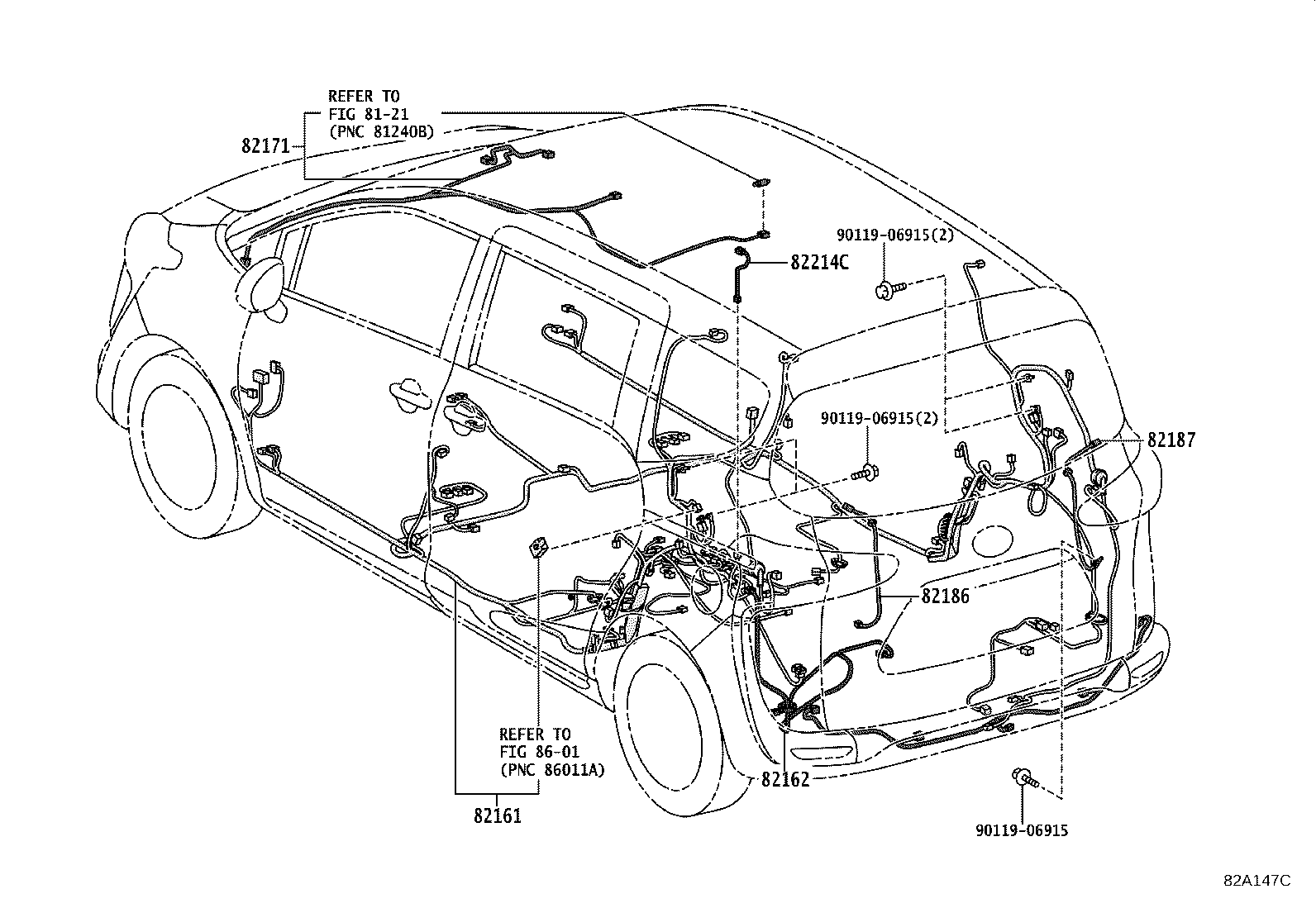

ILLUST NO. 5 OF 9(1506- )

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-5CW70	NSP170..Q	06/2015 - 09/2018	1
82161-5CV90	NSP170..N	06/2015 - 09/2018	1
82162 - WIRE, FLOOR, NO.2
82162-52130	NHP170,NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
82171 - WIRE, ROOF, NO.1
82171-52690	NHP170,NSP170	06/2015 - 09/2018	1
82186 - WIRE, REAR WINDOW, NO.1
82186-52190	NHP170,NSP170	06/2015 - 09/2018	1
82187 - WIRE, REAR WINDOW, NO.2
82187-52110	NHP170,NSP170	06/2015 - 09/2018	1
Common parts
90119-06915
Linked diagrams
8121
8601

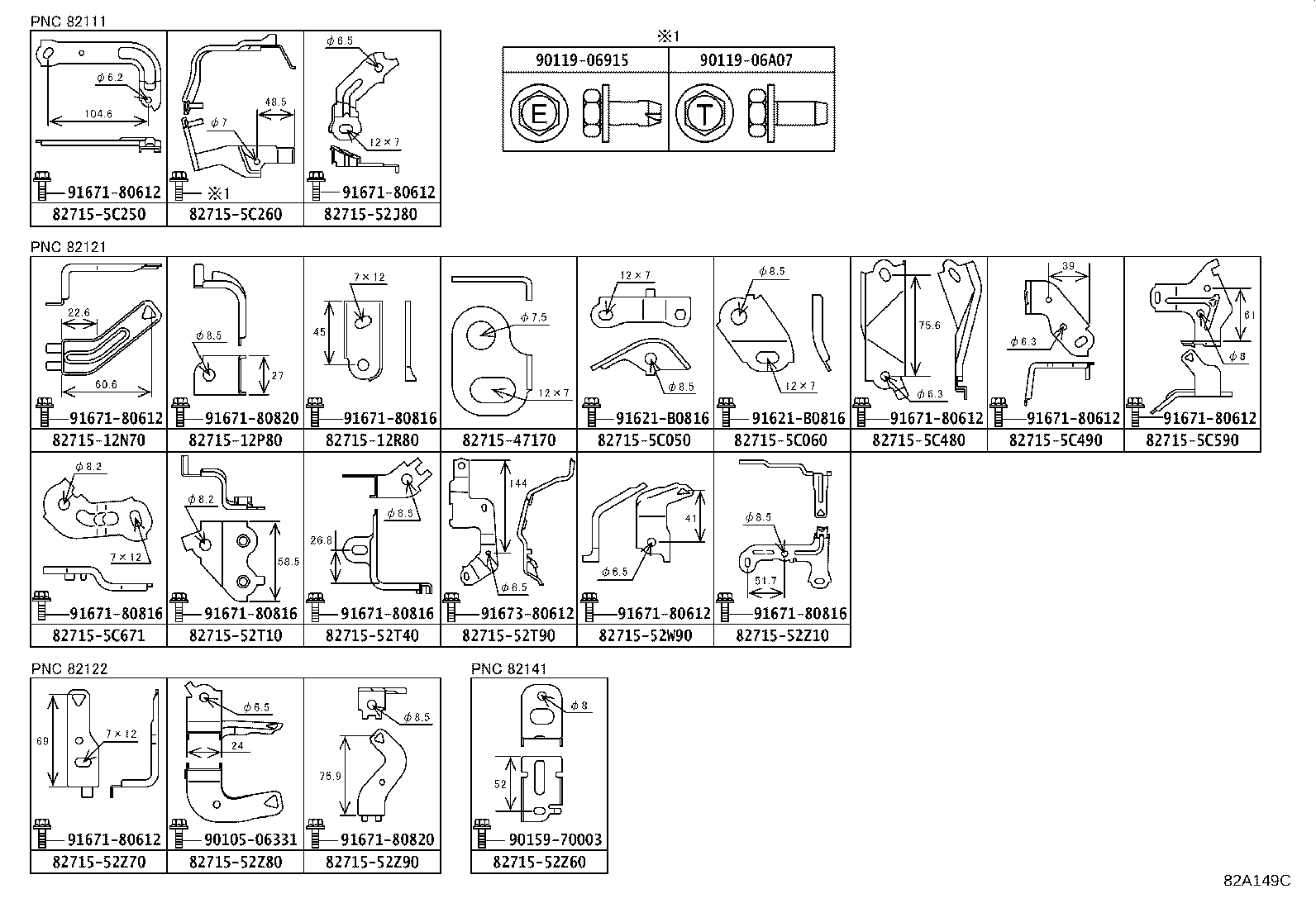

ILLUST NO. 7 OF 9(1506- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-12N70
82715-12P80
82715-12R80
82715-47170
82715-52J80
82715-52T10
82715-52T40
82715-52T90
82715-52W90
82715-52Z10
82715-52Z60
82715-52Z70
82715-52Z80
82715-52Z90
82715-5C050
82715-5C060
82715-5C250
82715-5C260
82715-5C480
82715-5C490
82715-5C590
82715-5C671
90105-06331
90119-06915
90119-06A07
90159-70003
91621-B0816
91671-80612
91671-80816
91671-80820
91673-80612

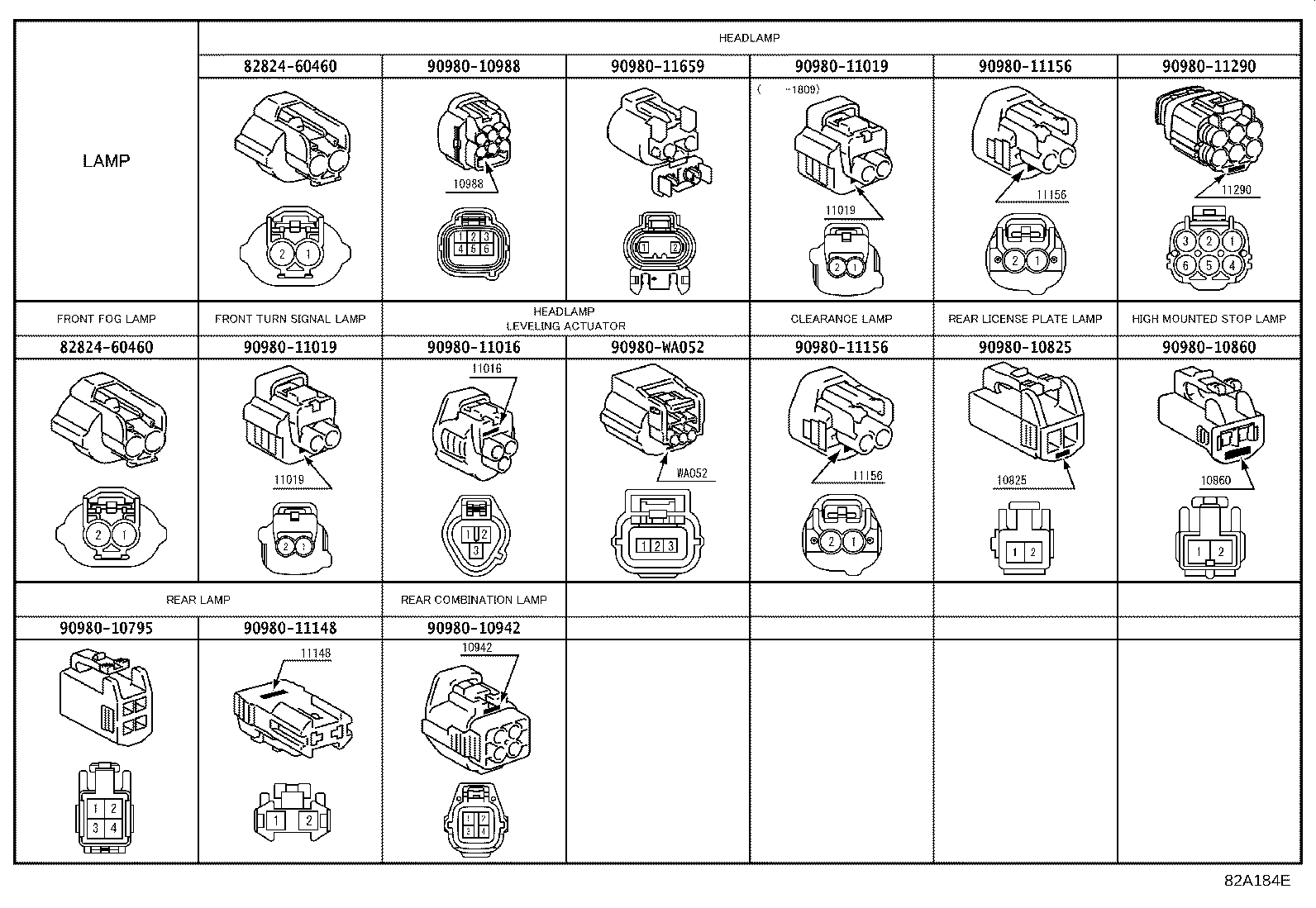

ILLUST NO. 8 OF 9(1506- )

Click highlighted areas on diagram

CONNECTOR 1/2

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10795
90980-10825
90980-10860
90980-10942
90980-10988
90980-11016
90980-11019
90980-11148
90980-11156
90980-11290
90980-11659
90980-WA052

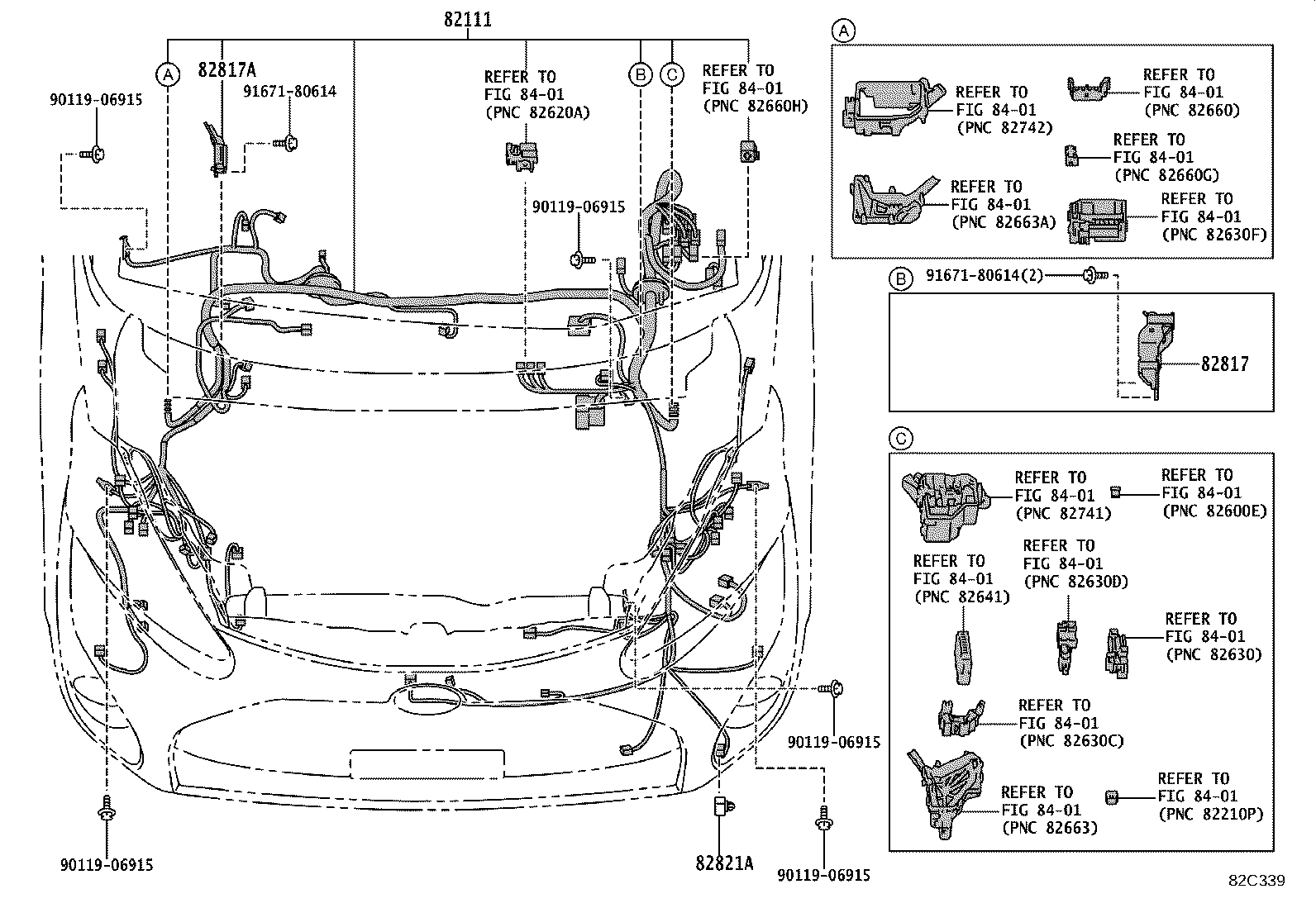

ILLUST NO. 1 OF 9(1506- )NSP170

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-5D870	NSP170..N	06/2015 - 06/2016	1
82111-5DD10	NSP170..Q HEADLAMP-LED	06/2015 - 09/2018	1
82111-5D881	NSP170..Q	07/2016 - 09/2018	1
82111-5D871	NSP170..N	07/2016 - 09/2018	1
82111-5D880	NSP170..Q	06/2015 - 06/2016	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-52A20	NSP170	06/2015 - 09/2018	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-52C00	NSP170	06/2015 - 09/2018	1
Common parts
90119-06915
91671-80614
Linked diagrams
8401

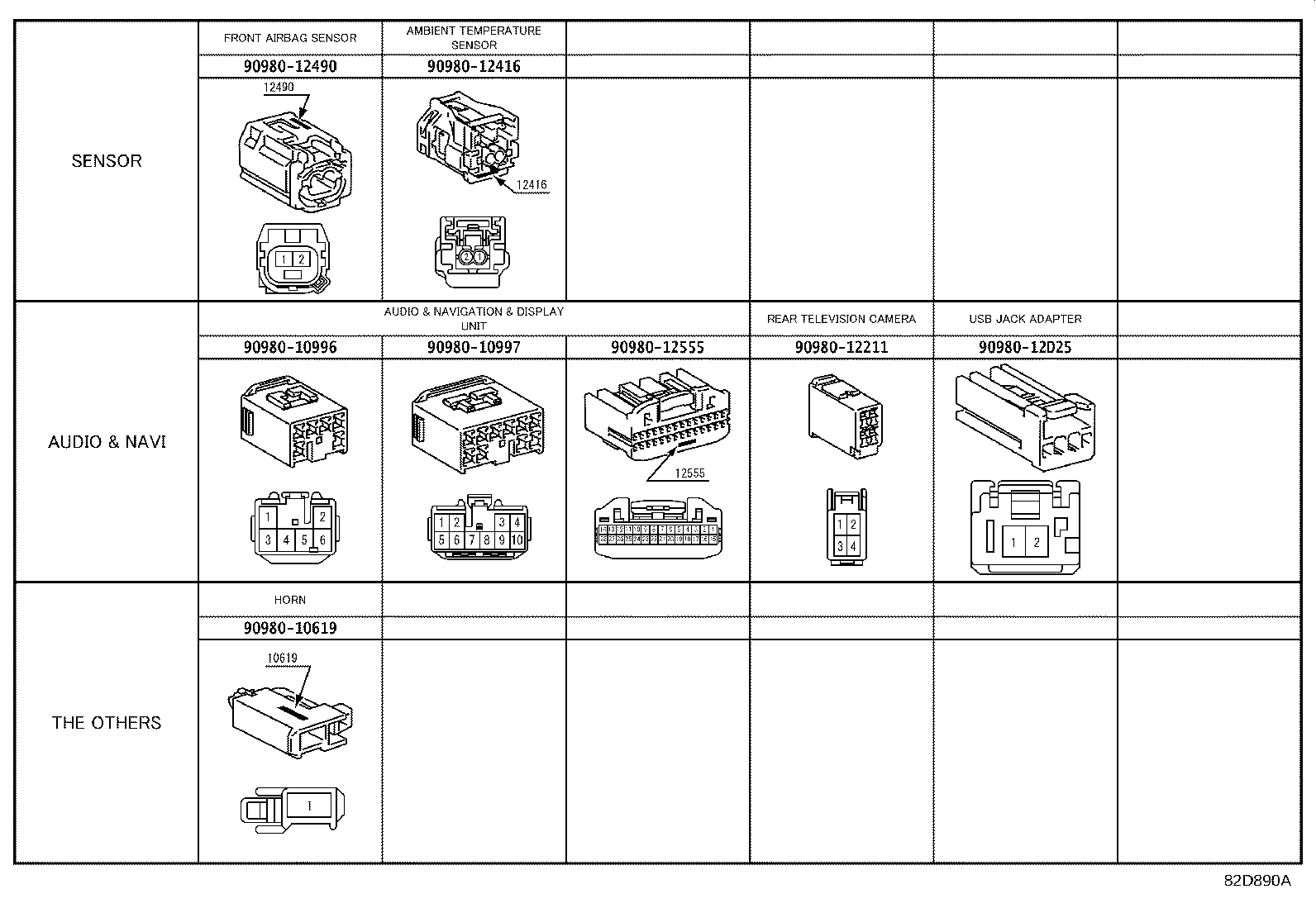

ILLUST NO. 9 OF 9(1506- )

Click highlighted areas on diagram

CONNECTOR 2/2

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10996
90980-10997
90980-12211
90980-12416
90980-12490
90980-12555
90980-12D25
