NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

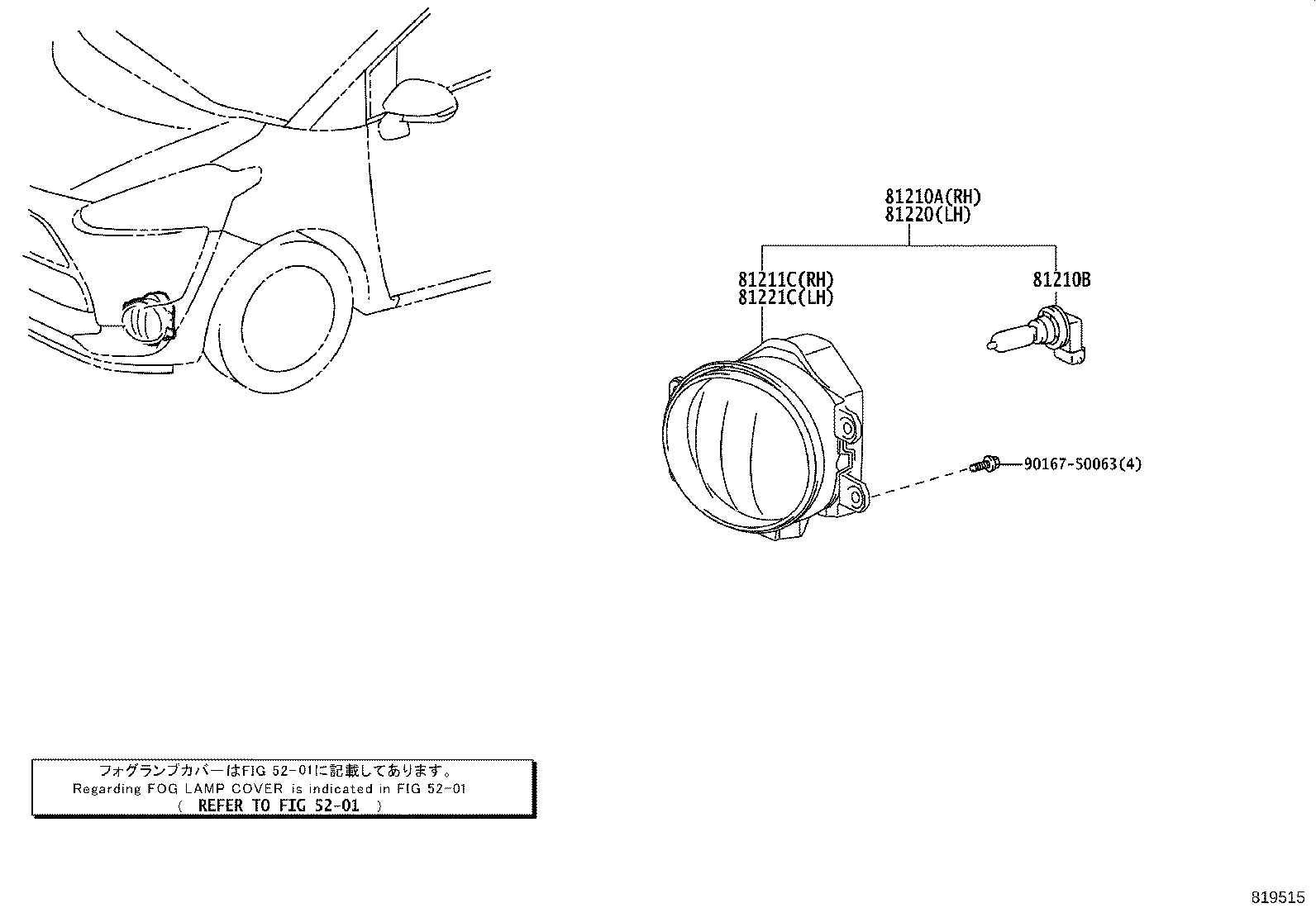

Click highlighted areas on diagram

BULB TYPE

diagram 5201 81210A 81210B 81211C 81220 81221C 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-47010

NHP170,NSP170..Q

HEADLAMP-LED

 1
81210B - BULB, FOG LAMP
90981-13090

NHP170,NSP170..Q

12V 19W,HEADLAMP-LED

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-47010

NHP170,NSP170..Q

HEADLAMP-LED

 1
81220 - LAMP ASSY, FOG, LH
81220-47010

NHP170,NSP170..Q

HEADLAMP-LED

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-47010

NHP170,NSP170..Q

HEADLAMP-LED

 1
Common parts
90167-50063
Linked diagrams
5201
