NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

Click highlighted areas on diagram

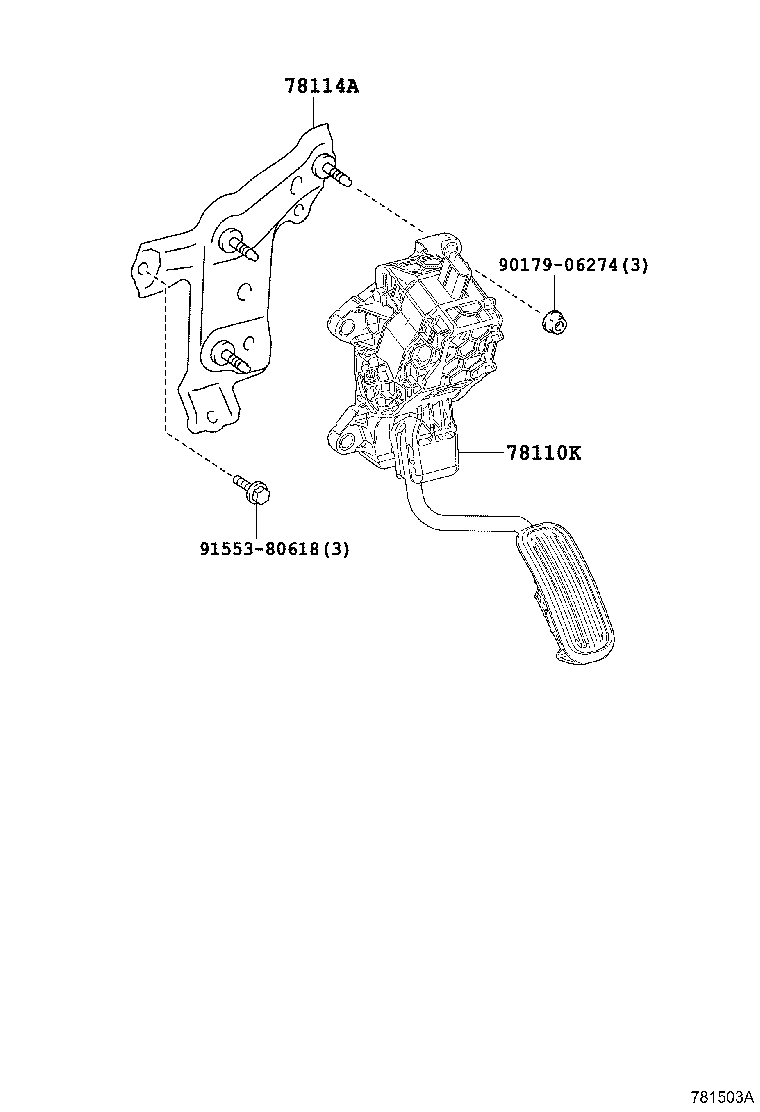

diagram 78110K 78114A 9017906274 9155380618
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-52190

NSP170

 1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-52040

NHP170,NSP170

 1
Common parts
90179-06274
91553-80618
