NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
ILLUST NO. 1 OF 3(1506- )

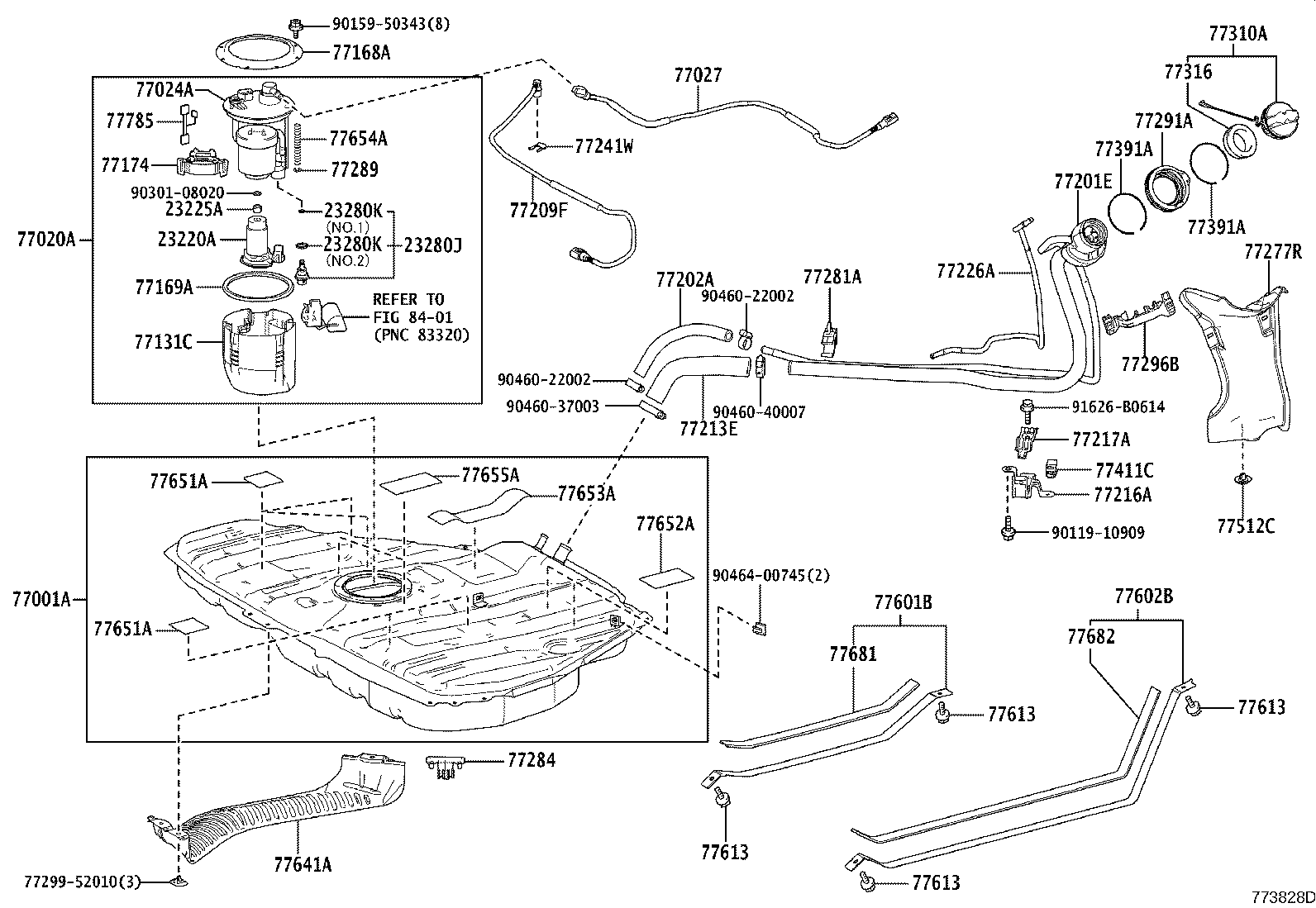

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-28440 |
1NZFXE,2NRFKE..NHP170,NSP170 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
1NZFXE,2NRFKE..NHP170,NSP170 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1NZFXE,2NRFKE..NHP170,NSP170 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NZFXE,2NRFKE..NHP170,NSP170 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
1NZFXE,2NRFKE..NHP170,NSP170 NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NZFXE,2NRFKE..NHP170,NSP170 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
1NZFXE,2NRFKE..NHP170,NSP170 NO.2:REFER ILLUST. |
1 | ||
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-52530 |
NHP170,NSP170 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-52500 |
NHP170,NSP170 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-52280 |
NHP170,NSP170 |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-52170 |
NHP170,NSP170 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-52120 |
NHP170,NSP170 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
NHP170,NSP170 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
NHP170,NSP170 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-28020 |
NHP170,NSP170 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-52480 |
NHP170,NSP170 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13024 |
NHP170,NSP170 L=240 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-52160 |
NHP170,NSP170 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-52230 |
NHP170,NSP170 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-52220 |
NHP170,NSP170 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-52120 |
NHP170,NSP170 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-52220 |
NHP170,NSP170 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
NHP170,NSP170 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-52160 |
NHP170,NSP170 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-52070 |
NHP170,NSP170 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77289-52070 |
NHP170,NSP170 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
NHP170,NSP170 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-52100 |
NHP170,NSP170 |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-52090 |
NHP170,NSP170 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
NHP170,NSP170 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
NHP170,NSP170 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NHP170,NSP170 |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NHP170,NSP170 |
2 | ||
| 77411C - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-20050 |
NHP170,NSP170 |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
NHP170,NSP170 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-52040 |
NHP170,NSP170 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-52030 |
NHP170,NSP170 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
NHP170,NSP170 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
NHP170,NSP170 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
NHP170,NSP170 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
NHP170,NSP170 |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-52040 |
NHP170,NSP170 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
NHP170,NSP170 |
5 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
NHP170,NSP170 |
5 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
NHP170,NSP170 |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77652-52060 |
NHP170,NSP170 |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77652-52020 |
NHP170,NSP170 |
1 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77653-60060 |
NHP170,NSP170 |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-52030 |
NHP170,NSP170 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-52040 |
NHP170,NSP170 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-48040 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 77299-52010 | ||||
| 90119-10909 | ||||
| 90159-50343 | ||||
| 90301-08020 | ||||
| 90460-22002 | ||||
| 90460-37003 | ||||
| 90460-40007 | ||||
| 90464-00745 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1506- )NSP170

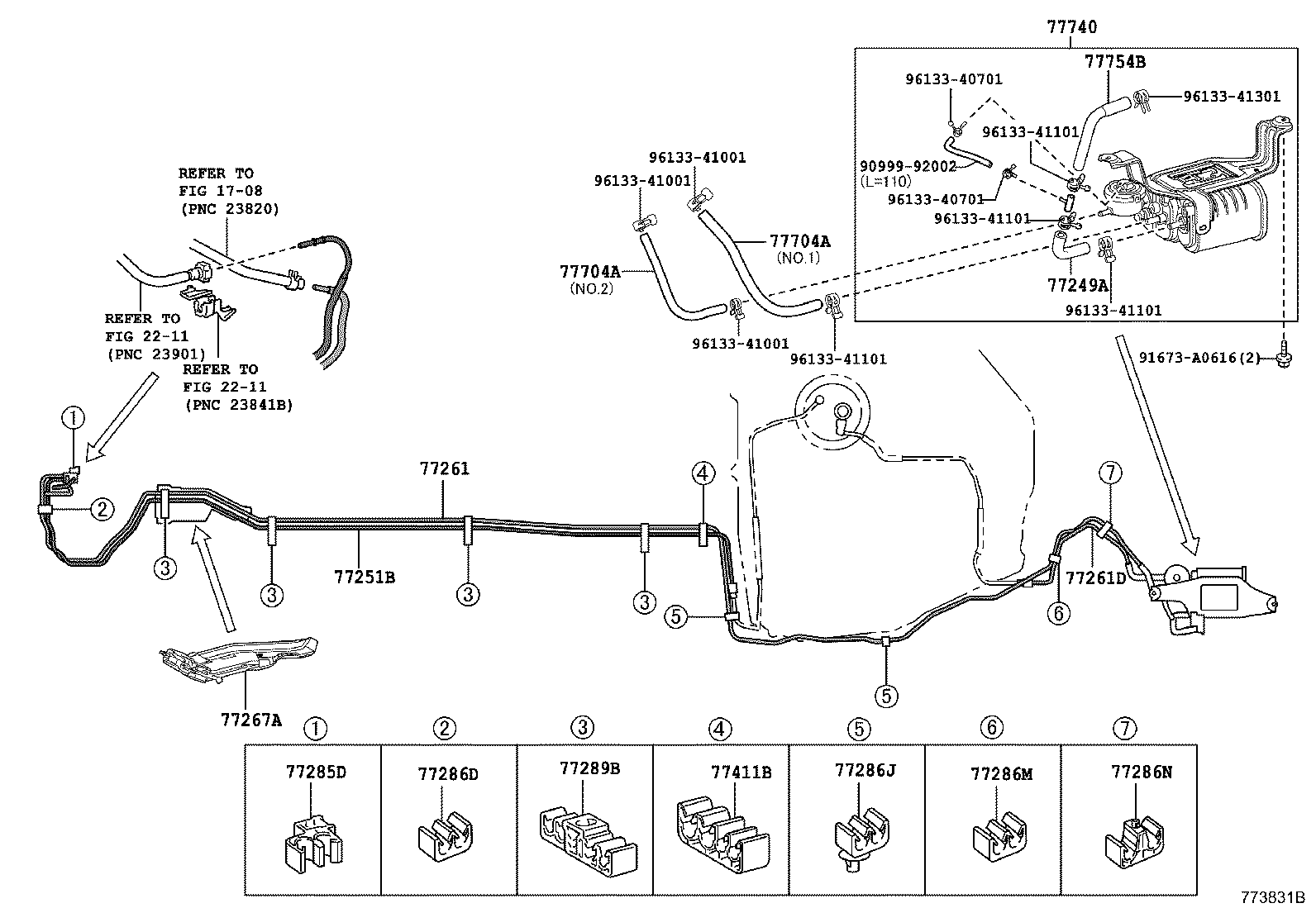

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77249A - HOSE, FUEL EMISSION | ||||
| 77249-52120 |
NHP170,NSP170 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-52440 |
NSP170 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-52410 |
NSP170 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77262-52090 |
NHP170,NSP170 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-52050 |
NSP170 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-52140 |
NSP170 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-42110 |
NSP170 |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77285-52110 |
NHP170,NSP170 |
2 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77285-28110 |
NSP170 |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77286-52190 |
NSP170 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77298-52070 |
NSP170 |
4 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48030 |
NHP170,NSP170 |
1 | ||
| 77704A - HOSE, FUEL(FOR CHARCOAL CANISTER) | ||||
| 77279-52090 |
NSP170 NO.1:REFER ILLUST. |
1 | ||
| 95326-06018 |
NHP170,NSP170 NO.2:REFER ILLUST. |
1 | ||
| 77704A - HOSE, FUEL(FOR CHARCOAL CANISTER) | ||||
| 77279-52090 |
NSP170 NO.1:REFER ILLUST. |
1 | ||
| 95326-06018 |
NHP170,NSP170 NO.2:REFER ILLUST. |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-52140 |
NHP170,NSP170 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-52090 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 90999-92002 | ||||
| 91673-A0616 | ||||
| 96133-40701 | ||||
| 96133-41001 | ||||
| 96133-41101 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1506- )

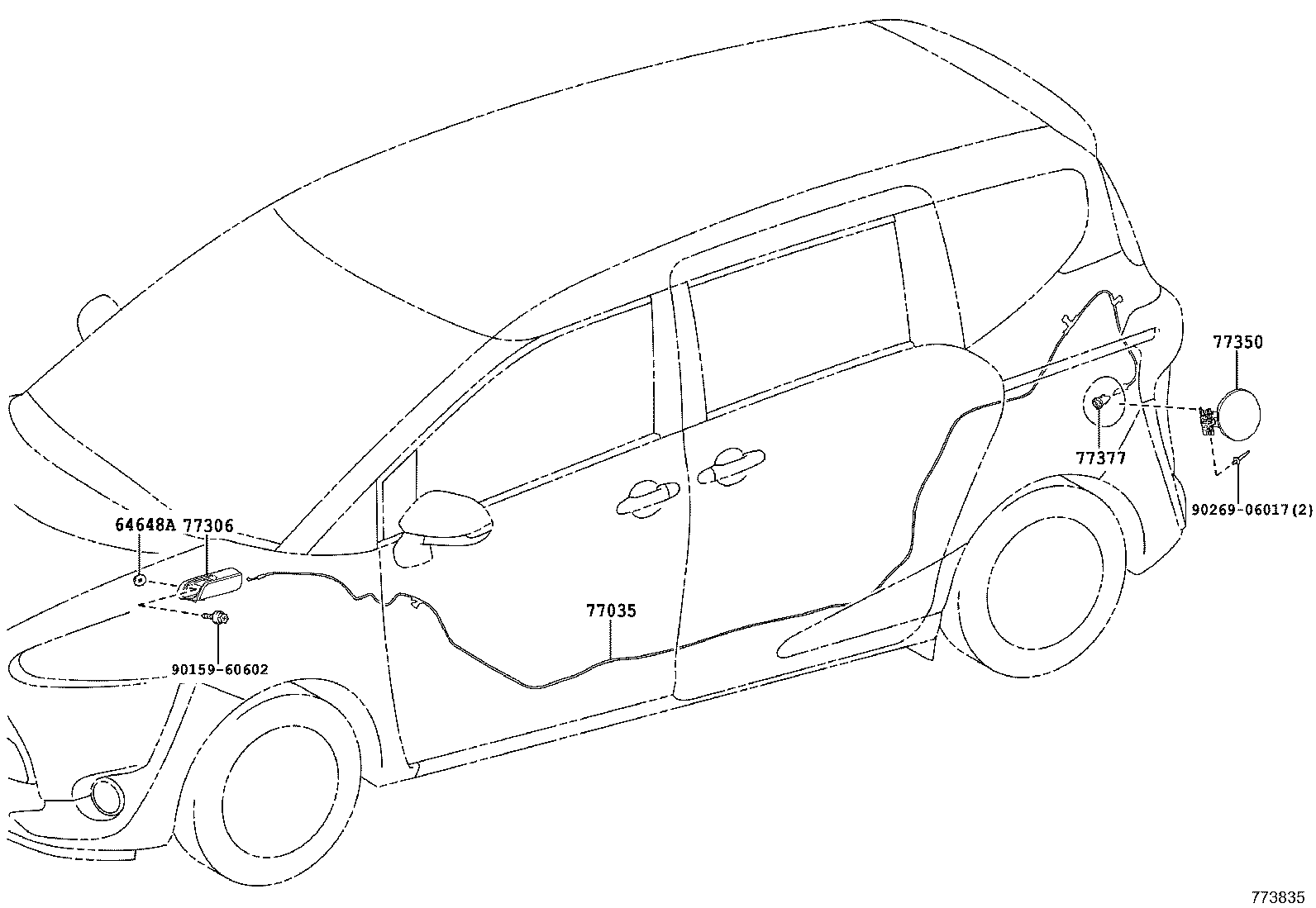

FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-32020 |
NHP170,NSP170 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-52381 |
NHP170,NSP170 |
1 | ||
| 77035-52380 |
NHP170,NSP170 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-52050 |
NHP170,NSP170 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-52210 |
NHP170,NSP170 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-75010 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90269-06017 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
