NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )

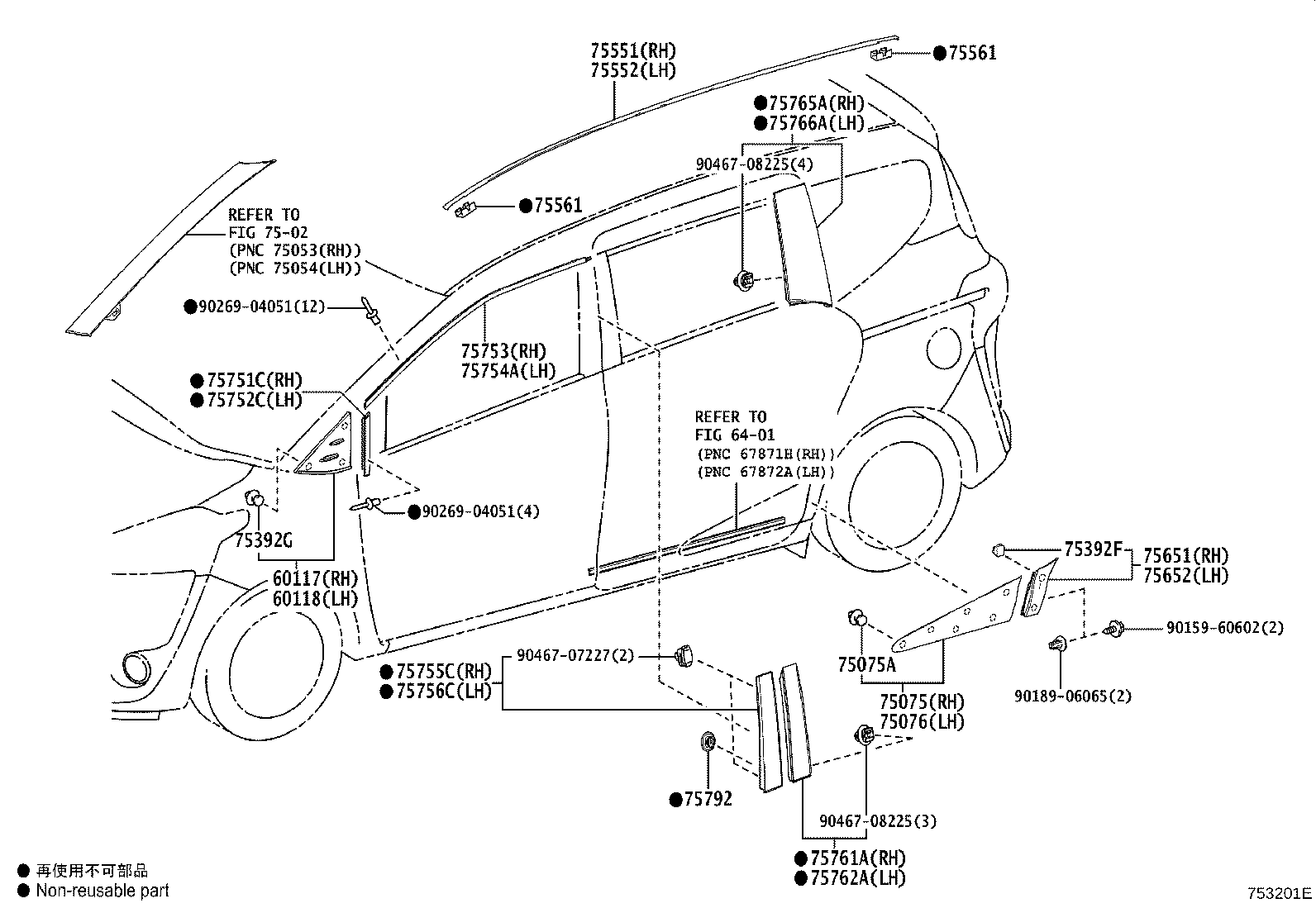

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-52110 |
NHP170,NSP170 |
1 | ||
| 60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-52100 |
NHP170,NSP170 |
1 | ||
| 75075 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH | ||||
| 75075-52050 |
NHP170,NSP170 BLACK MATERIAL |
1 | ||
| 75075A - CLIP(FOR REAR DOOR OUTSIDE MOULDING) | ||||
| 90467-10162 |
NHP170,NSP170 |
12 | ||
| 75076 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH | ||||
| 75076-52050 |
NHP170,NSP170 BLACK MATERIAL |
1 | ||
| 75392F - RETAINER, OUTSIDE MOULDING | ||||
| 76932-28030 |
NHP170,NSP170 |
4 | ||
| 75392G - RETAINER, OUTSIDE MOULDING, NO.1 | ||||
| 52562-58020 |
NHP170,NSP170 |
6 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-52230 |
NHP170,NSP170 NO PAINT REQ. |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-52210 |
NHP170,NSP170 NO PAINT REQ. |
1 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-33030 |
NHP170,NSP170 |
4 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-33030 |
NHP170,NSP170 |
4 | ||
| 75651 - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75605-52030 |
NHP170,NSP170 BLACK MATERIAL |
1 | ||
| 75652 - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75606-52030 |
NHP170,NSP170 BLACK MATERIAL |
1 | ||
| 75751C - MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH | ||||
| 75751-52070 |
NHP170,NSP170 |
1 | ||
| 75752C - MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH | ||||
| 75752-52060 |
NHP170,NSP170 |
1 | ||
| 75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH | ||||
| 75753-52030 |
NHP170,NSP170 |
1 | ||
| 75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH | ||||
| 75754-52020 |
NHP170,NSP170 |
1 | ||
| 75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH | ||||
| 75755-52070 |
NHP170,NSP170 NO PAINT REQ. |
1 | ||
| 75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH | ||||
| 75756-52050 |
NHP170,NSP170 NO PAINT REQ. |
1 | ||
| 75761A - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH | ||||
| 75761-52040 |
NHP170,NSP170 NO PAINT REQ. |
1 | ||
| 75762A - MOULDING, REAR DOOR WINDOW FRAME, FRONT LH | ||||
| 75762-52050 |
NHP170,NSP170 NO PAINT REQ. |
1 | ||
| 75765A - MOULDING, REAR DOOR WINDOW FRAME, REAR RH | ||||
| 75765-52050 |
NHP170,NSP170 |
1 | ||
| 75766A - MOULDING, REAR DOOR WINDOW FRAME, REAR LH | ||||
| 75766-52060 |
NHP170,NSP170 |
1 | ||
| 75792 - CLIP, DOOR WINDOW FRAME MOULDING | ||||
| 75792-47010 |
NHP170,NSP170 |
2 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90189-06065 | ||||
| 90269-04051 | ||||
| 90467-07227 | ||||
| 90467-08225 | ||||
| Linked diagrams | ||||
| 6401 | ||||
| 7502 | ||||
