NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

Click highlighted areas on diagram

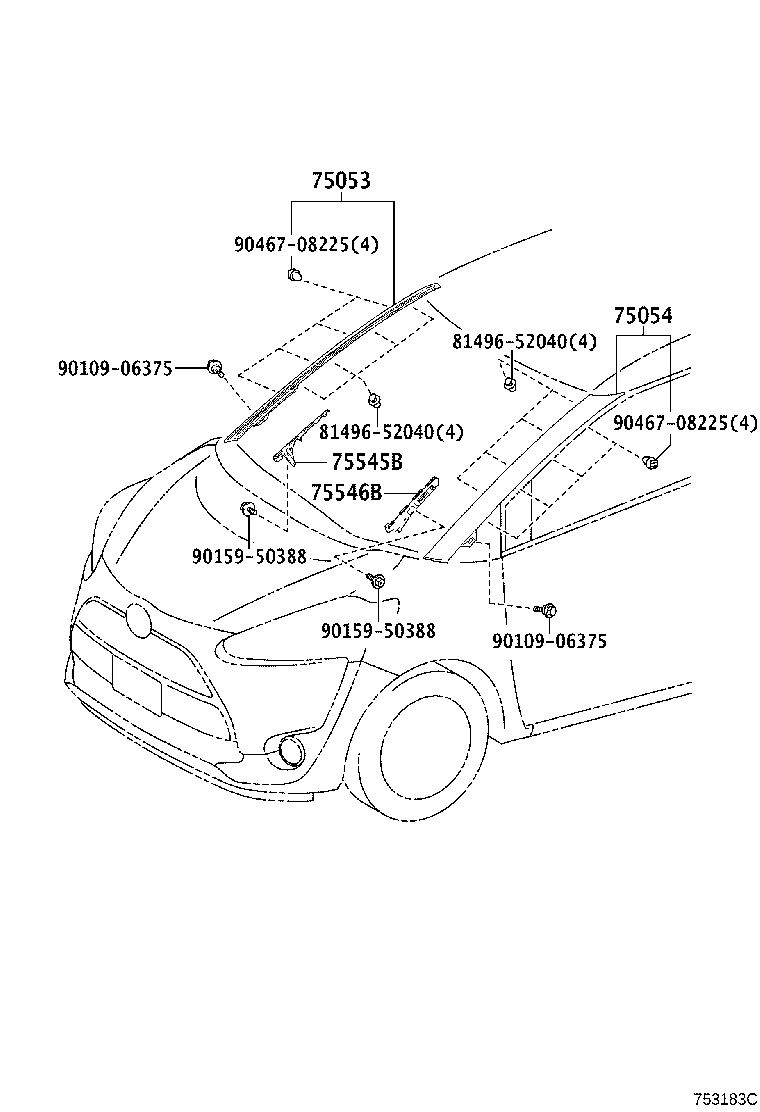

diagram 75053 75054 75545B 75546B 8149652040 8149652040 9010906375 9010906375 9015950388 9015950388 9046708225 9046708225
Part # Description Qty Price
75053 - GARNISH SUB-ASSY, FRONT PILLAR, OUTER RH
76003-52010

NHP170,NSP170

 1
75054 - GARNISH SUB-ASSY, FRONT PILLAR, OUTER LH
76004-52010

NHP170,NSP170

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-52010

NHP170,NSP170

 1
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-52010

NHP170,NSP170

 1
Common parts
81496-52040
90109-06375
90159-50388
90467-08225
