NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

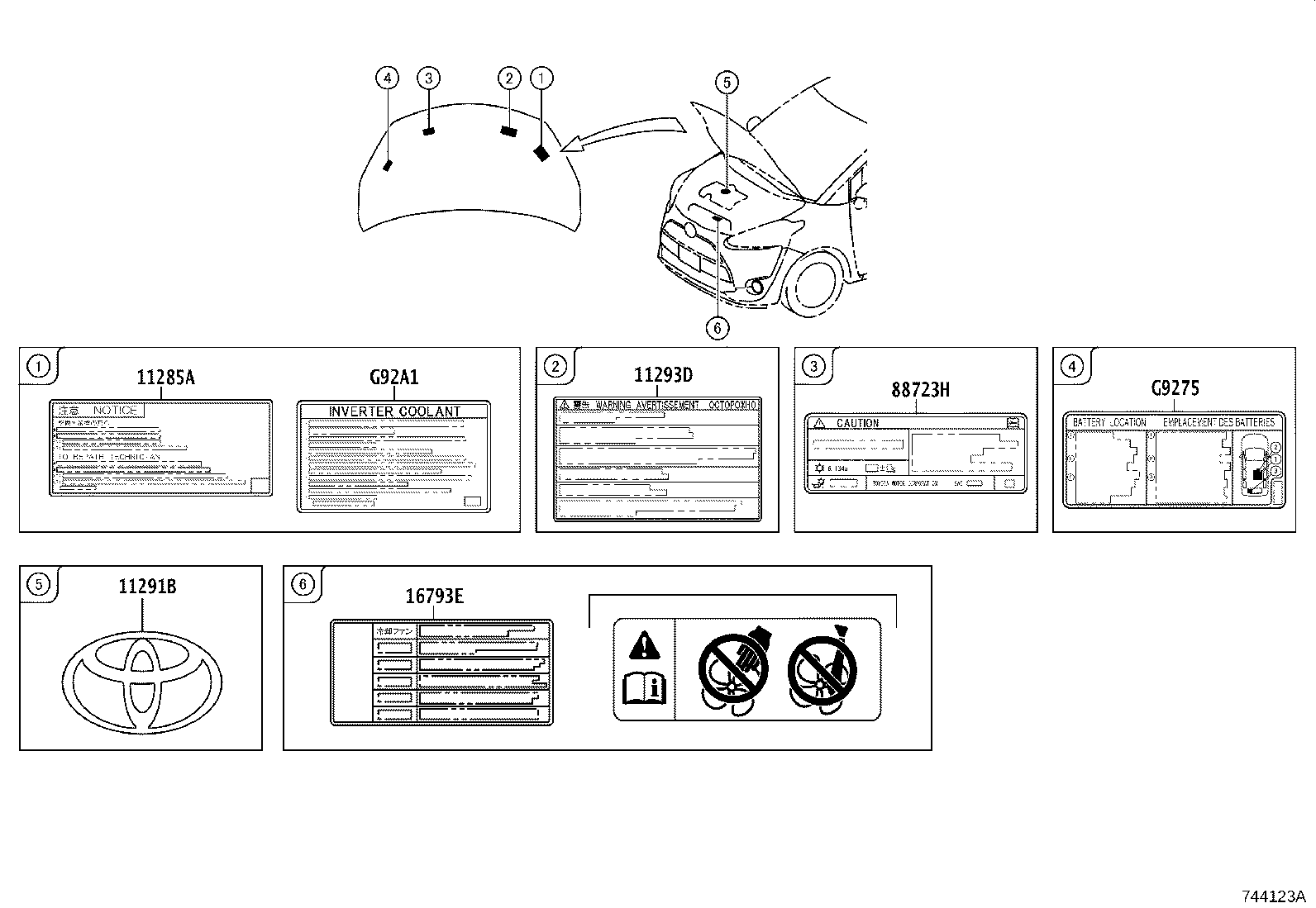

ILLUST NO. 1 OF 2(1506- )

Click highlighted areas on diagram

ENGINE ROOM & EXTERIOR

diagram 11285A 11291B 11293D 16793E 88723H G9275 G92A1
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-47010

2NRFKE..NSP170

 1
11291B - PLATE, ENGINE NAME
11291-50051

2NRFKE..NSP170

 1
16793E - LABEL, COOLING FAN CAUTION
16793-38010

2NRFKE..NSP170

 1
16793-31070

1NZFXE,2NRFKE..NHP170,NSP170

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-52150

NSP170

 1

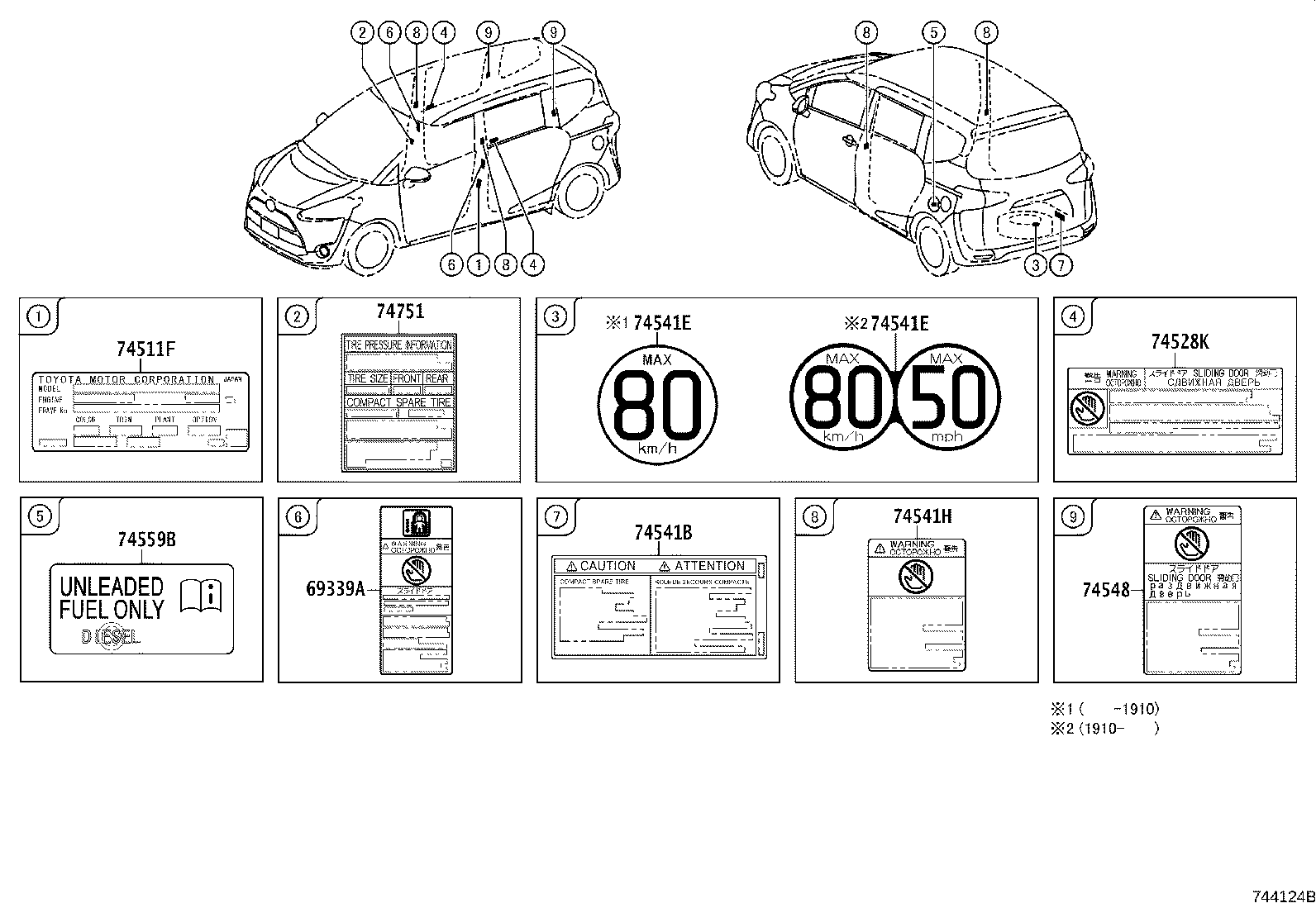

ILLUST NO. 2 OF 2(1506- )

Click highlighted areas on diagram

INTERIOR

diagram 69339A 74511F 74528K 74541B 74541E 74541E 74541H 74548 74559B 74751
Part # Description Qty Price
69339A - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-28020

NHP170,NSP170

 2
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

NHP170,NSP170

*111

 1
74528K - LABEL, DOOR CLOSER CAUTION
74528-28240

NHP170,NSP170

 2
74541B - PLATE, COMPACT SPARE TIRE CAUTION
42668-42020

NSP170

SPARE TIRE-T105/70D16

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-20020

NSP170

SPARE TIRE-T105/70D16

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-20020

NSP170

SPARE TIRE-T105/70D16

 1
74541H - PLATE, BODY CAUTION
74541-28140

NHP170,NSP170

 4
74548 - PLATE, BODY CAUTION
74541-28130

NHP170,NSP170

 2
74559B - LABEL, FUEL INFORMATION
74559-20140

NHP170,NSP170

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-52E10

NHP170,NSP170

 1
42661-52E20

NHP170,NSP170..Q

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

 1
