NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )

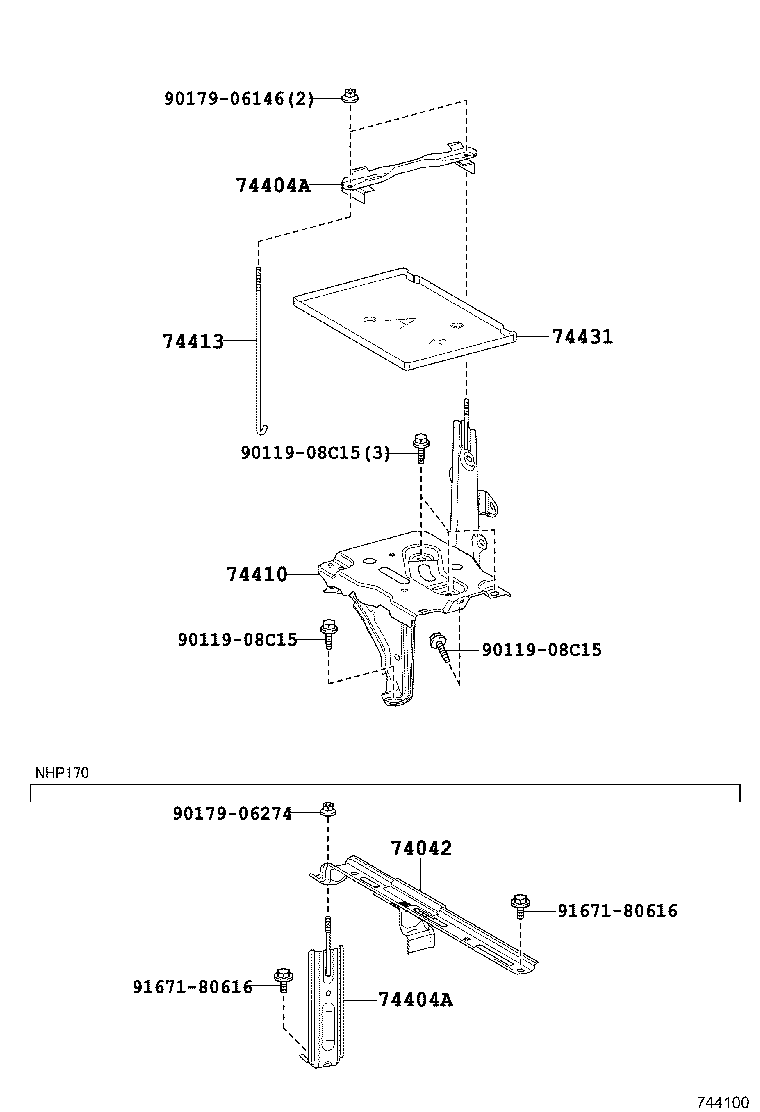

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74404A - CLAMP SUB-ASSY, BATTERY | ||||
| 74404-52130 |
NSP170 |
1 | ||
| 74404A - CLAMP SUB-ASSY, BATTERY | ||||
| 74404-52130 |
NSP170 |
1 | ||
| 74410 - CARRIER ASSY, BATTERY | ||||
| 74410-52051 |
NSP170 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-52071 |
NSP170 |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-52121 |
NSP170 |
1 | ||
| Common parts | ||||
| 90119-08C15 | ||||
| 90179-06146 | ||||
| 90179-06274 | ||||
| 91671-80616 | ||||
