NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018

Engine 2NRFKE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

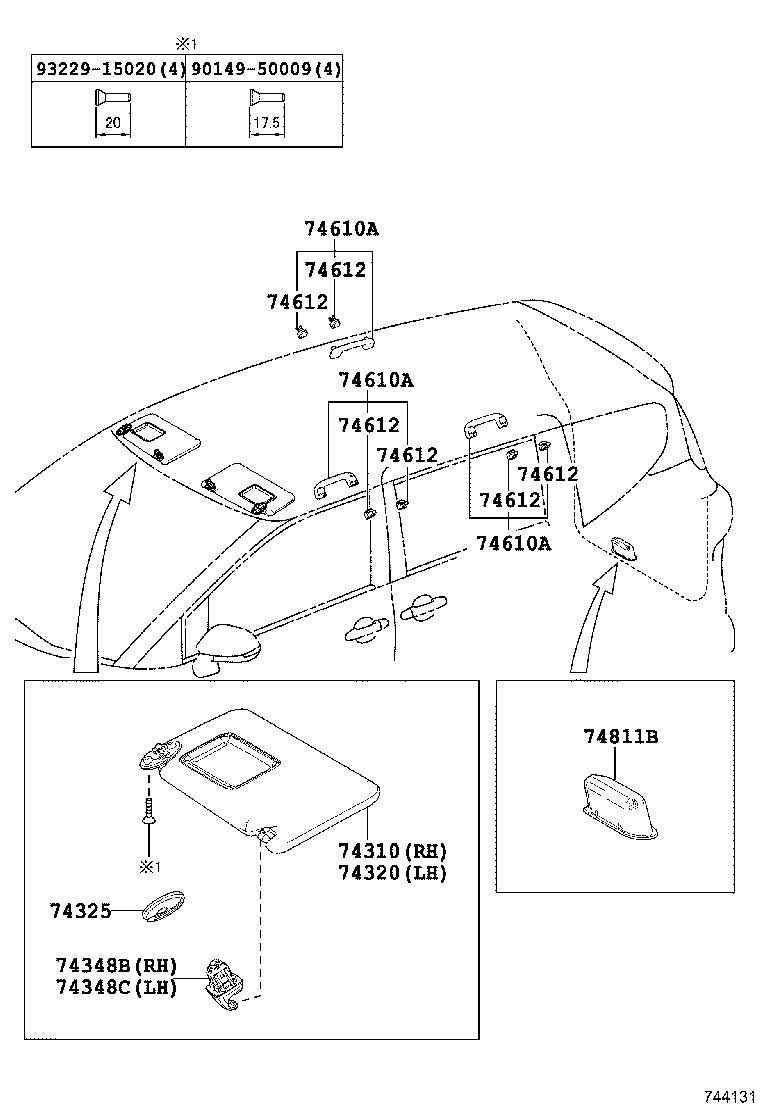

ILLUST NO. 2 OF 2(1506- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram

Part #	Description	Period	Qty	Price
74310 - VISOR ASSY, RH
74310-52F00B0	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	1
74320 - VISOR ASSY, LH
74320-52F00B0	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	1
74325 - COVER, VISOR BRACKET
74317-60020B1	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	2
74348B - HOLDER, VISOR, RH
74348-33040B1	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	1
74348C - HOLDER, VISOR, LH
74348-33040B1	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	1
74610A - GRIP SUB-ASSY, ASSIST
74610-47040B1	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	3
74610A - GRIP SUB-ASSY, ASSIST
74610-47040B1	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	3
74610A - GRIP SUB-ASSY, ASSIST
74610-47040B1	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	3
74612 - COVER, ASSIST GRIP
74612-47070B1	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	6
74612 - COVER, ASSIST GRIP
74612-47070B1	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	6
74612 - COVER, ASSIST GRIP
74612-47070B1	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	6
74612 - COVER, ASSIST GRIP
74612-47070B1	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	6
74612 - COVER, ASSIST GRIP
74612-47070B1	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	6
74612 - COVER, ASSIST GRIP
74612-47070B1	NHP170,NSP170 LT.GRAY,TRIM0#,2#	06/2015 - 09/2018	6
74811B - HANDLE, DOOR PULL
74811-13010C2	NHP170,NSP170 BLACK,TRIM0#,2#	10/2017 - 09/2018	1
74811-13010C0	NHP170,NSP170 BLACK,TRIM0#,2#	06/2015 - 10/2017	1
Common parts
90149-50009
93229-15020

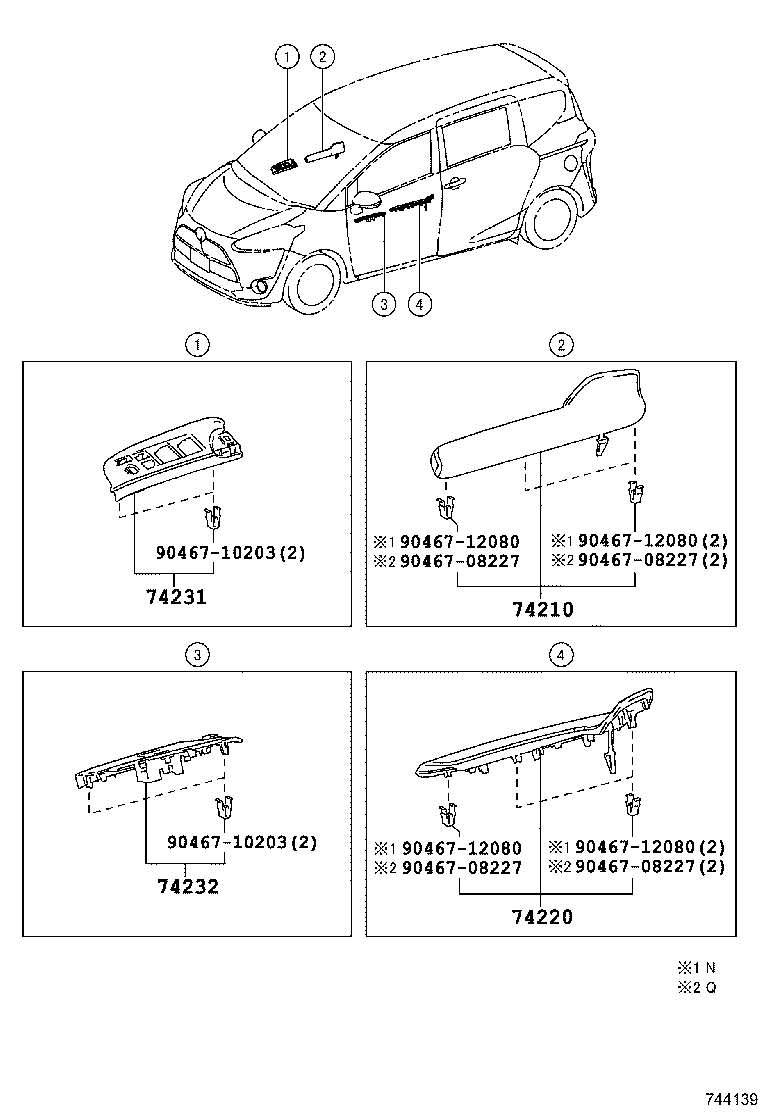

ILLUST NO. 1 OF 2(1506- )

Click highlighted areas on diagram

ARMREST

diagram

Part #	Description	Period	Qty	Price
74210 - ARMREST ASSY, FRONT, RH
74210-52030E0	NHP170,NSP170..Q DK.BROWN,TRIM0#	06/2015 - 09/2018	1
74210-52030C1	NHP170,NSP170..Q BLUE BLACK,TRIM2#	06/2015 - 09/2018	1
74210-52040A1	NHP170,NSP170..N FROMAGE,TRIM0#	06/2015 - 09/2018	1
74210-52040C1	NHP170,NSP170..N BLACK,TRIM2#	06/2015 - 09/2018	1
74220 - ARMREST ASSY, FRONT, LH
74220-52020C1	NHP170,NSP170..Q BLUE BLACK,TRIM2#	06/2015 - 09/2018	1
74220-52030A1	NHP170,NSP170..N FROMAGE,TRIM0#	06/2015 - 09/2018	1
74220-52020E0	NHP170,NSP170..Q DK.BROWN,TRIM0#	06/2015 - 09/2018	1
74220-52030C1	NHP170,NSP170..N BLACK,TRIM2#	06/2015 - 09/2018	1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-52A80A0	NHP170,NSP170 FROMAGE,TRIM0#	06/2015 - 09/2018	1
74231-52A80C0	NHP170,NSP170 BLACK,TRIM2#	06/2015 - 09/2018	1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-52660A0	NHP170,NSP170 FROMAGE,TRIM0#	06/2015 - 09/2018	1
74232-52660C0	NHP170,NSP170 BLACK,TRIM2#	06/2015 - 09/2018	1
Common parts
90467-08227
90467-10203
90467-12080
