NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

Click highlighted areas on diagram

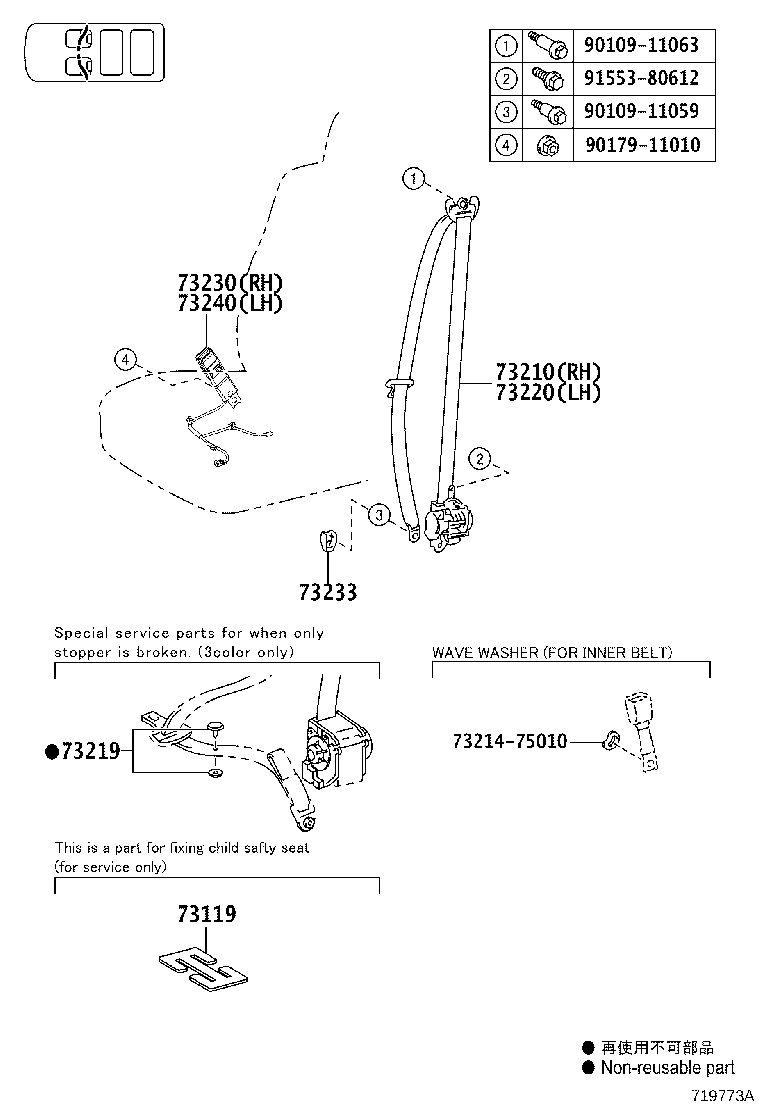

FRONT SEAT

diagram 73119 73210 7321475010 73219 73220 73230 73233 73240 9010911059 9010911063 9017911010 9155380612
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NHP170,NSP170

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52A10C1

NHP170,NSP170

BLACK,TRIM0#,2#

 1
73219 - STOPPER, TONGUE PLATE
73219-33020

NHP170,NSP170

GRAY

 1
73219-33030

NHP170,NSP170

BEIGE

 1
73219-33010

NHP170,NSP170

BLACK

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52A20C1

NHP170,NSP170

BLACK,TRIM0#,2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52B80C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C0

NHP170,NSP170

BLACK,TRIM0#,2#

 2
73233-60020C1

NHP170,NSP170

BLACK,TRIM0#,2#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52B90C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
Common parts
73214-75010
90109-11059
90109-11063
90179-11010
91553-80612

(1506- )07S

Click highlighted areas on diagram

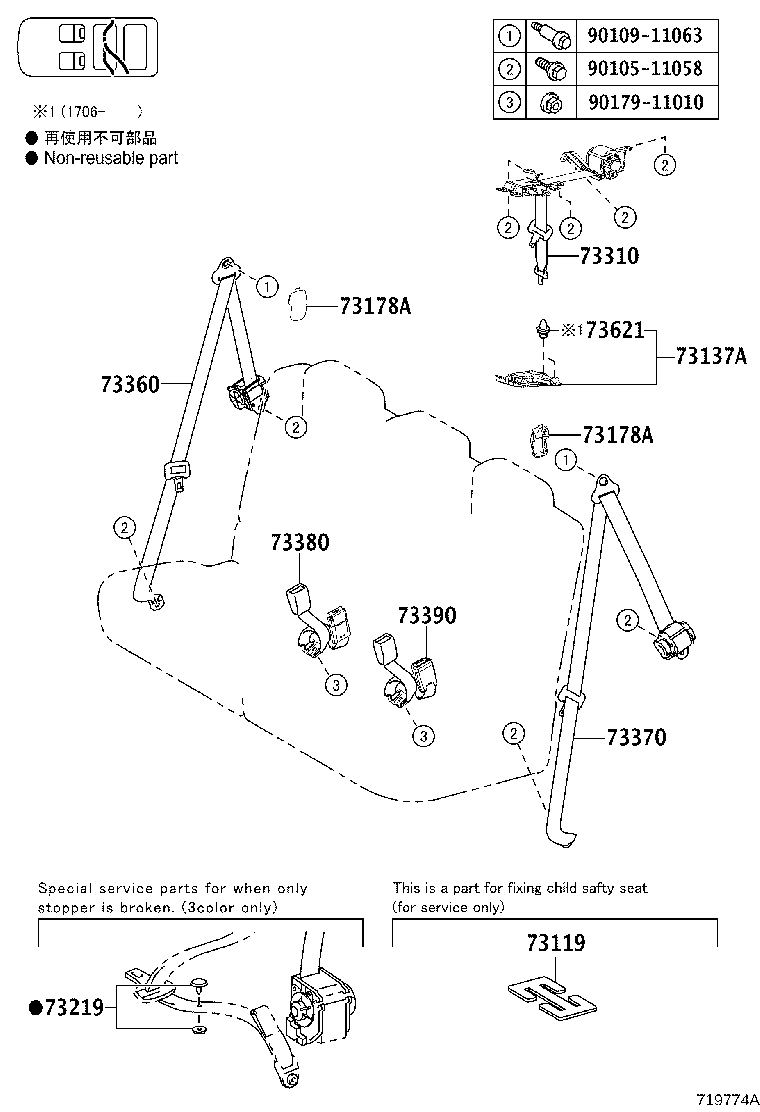

REAR NO.1 SEAT

diagram 73119 73137A 73178A 73178A 73219 73310 73360 73370 73380 73390 73621 9010511058 9010911063 9017911010
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NHP170,NSP170

 1
73137A - COVER, SHOULDER BELT ANCHOR, UPR
73137-52041B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 1
73137-52040B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-42020B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-42020B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 2
73219 - STOPPER, TONGUE PLATE
73219-33020

NHP170,NSP170

GRAY

 1
73219-33030

NHP170,NSP170

BEIGE

 1
73219-33010

NHP170,NSP170

BLACK

 1
73310 - BELT ASSY, REAR SEAT 3 POINT TYPE, RH
73310-52091C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
73310-52090C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52390C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52360C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-52180C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73390-52060C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
73621 - CLIP
62217-13010

NHP170,NSP170

 2
Common parts
90105-11058
90109-11063
90179-11010

(1506- )

Click highlighted areas on diagram

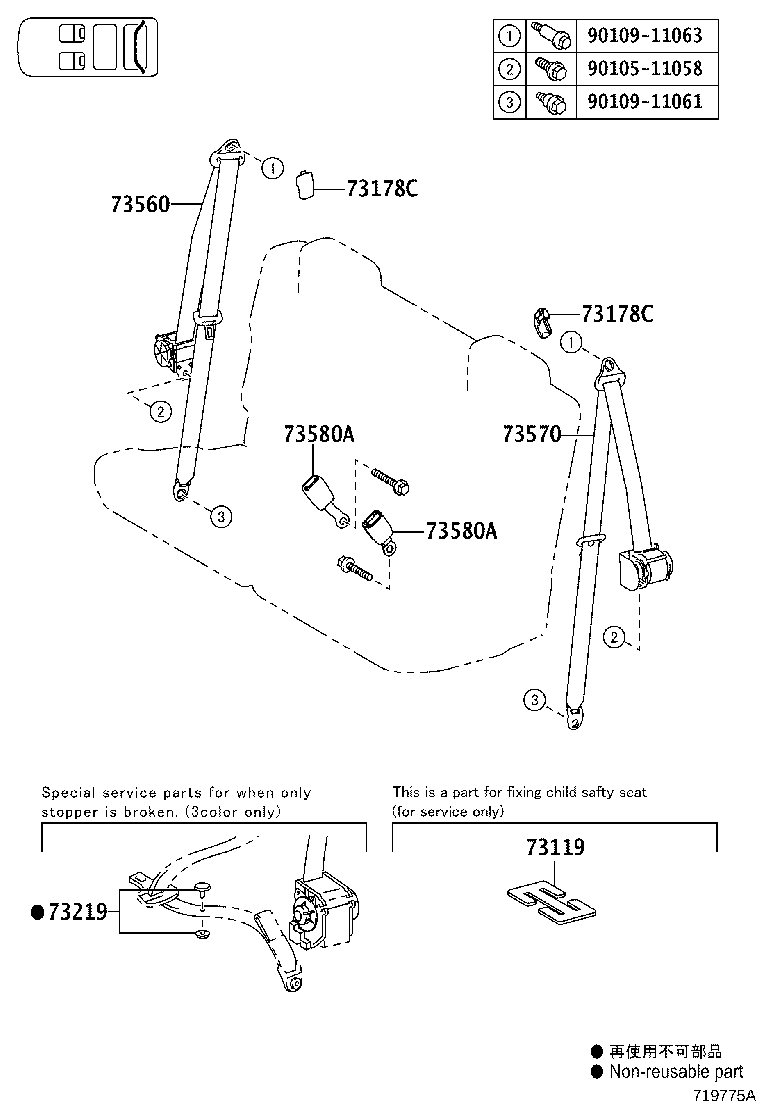

REAR NO.2 SEAT

diagram 73119 73178C 73178C 73219 73560 73570 73580A 73580A 9010511058 9010911061 9010911063
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NHP170,NSP170

 1
73178C - CAP, SEAT BELT ANCHOR COVER
73178-42020B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 2
73178C - CAP, SEAT BELT ANCHOR COVER
73178-42020B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 2
73219 - STOPPER, TONGUE PLATE
73219-33020

NHP170,NSP170

GRAY

 1
73219-33030

NHP170,NSP170

BEIGE

 1
73219-33010

NHP170,NSP170

BLACK

 1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-52040C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-52020C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER
73580-52040C0

NHP170,NSP170

BLACK,TRIM0#,2#

 2
73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER
73580-52040C0

NHP170,NSP170

BLACK,TRIM0#,2#

 2
Common parts
90105-11058
90109-11061
90109-11063
