NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)

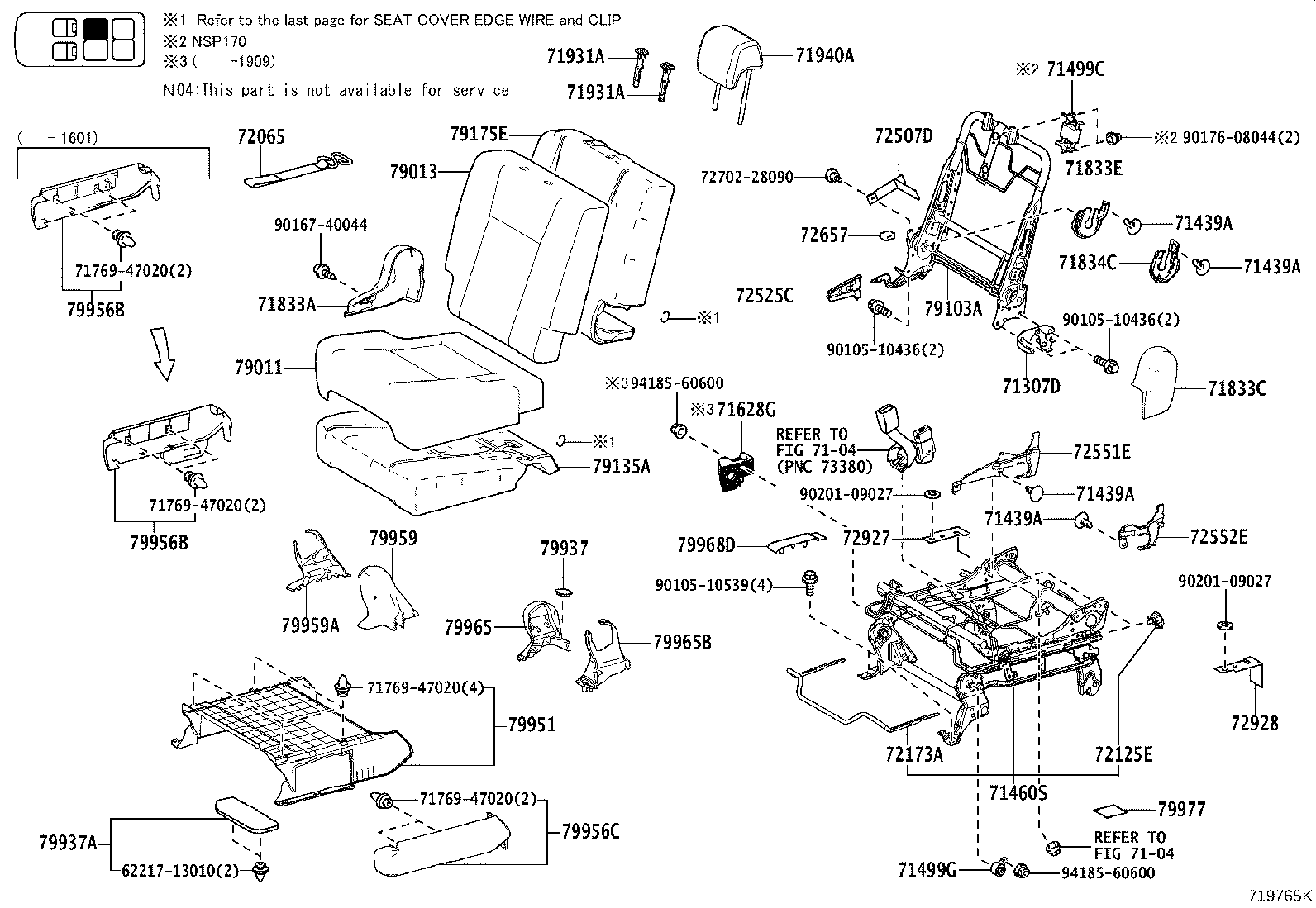

ILLUST NO. 1 OF 3(1506- )07S
REAR NO.1 SEAT RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71307D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH | ||||
| 71307-52020 |
NHP170,NSP170 |
1 | ||
| 71439A - CLIP | ||||
| 67771-26230C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 71439A - CLIP | ||||
| 67771-26230C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 71439A - CLIP | ||||
| 67771-26230C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 71439A - CLIP | ||||
| 67771-26230C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-52T50 |
NHP170,NSP170 |
1 | ||
| 71499C - DAMPER, REAR SEAT CUSHION SPRING | ||||
| 71499-46020 |
NSP170 |
1 | ||
| 71499G - DAMPER, REAR SEAT BACK SPRING, RH | ||||
| 71499-52060 |
NHP170,NSP170 |
1 | ||
| 71628G - SPACER, REAR SEAT CUSHION, RH | ||||
| 72136-52020 |
NHP170,NSP170 |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-52200C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71833-52210C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71833E - COVER, REAR SEAT RECLINING, NO.3 RH | ||||
| 71833-52190C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 71834C - COVER, REAR SEAT RECLINING, NO.3 LH | ||||
| 71834-52170C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-44020C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-4402021 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-44020C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-4402021 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52G40B2 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
2 | ||
| 71940-52G30B0 |
NHP170,NSP170..N DK.GRAY,TRIM2# |
2 | ||
| 71940-52G40E0 |
NHP170,NSP170..Q DK.BROWN,TRIM0# |
2 | ||
| 71940-52G30E1 |
NHP170,NSP170..N FROMAGE/DK.BROWN,TRIM0# |
2 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-28171C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72125E - COVER, SEAT TRACK, UPPER REAR RH | ||||
| 72125-52020 |
NHP170,NSP170 |
2 | ||
| 71848-52120 |
NHP170,NSP170 |
2 | ||
| 72173A - HANDLE, REAR SEAT TRACK ADJUSTING, RH | ||||
| 72173-52030 |
NHP170,NSP170 |
1 | ||
| 72507D - HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE | ||||
| 72507-52030C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-52080C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72551E - COVER, RECLINING HINGE, RH | ||||
| 72551-52090C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72552E - COVER, RECLINING HINGE, LH | ||||
| 72552-52090C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72657 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD | ||||
| 72657-28010 |
NHP170,NSP170 |
2 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72907-52010 |
NHP170,NSP170 |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72908-52010 |
NHP170,NSP170 |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-52070B3 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79011-52070B2 |
NHP170,NSP170..Q DK.BROWN/DK.GRAY,TRIM0# |
1 | ||
| 79011-52060B2 |
NHP170,NSP170..N FROMAGE/DK.GRAY,TRIM0# |
1 | ||
| 79011-52060B3 |
NHP170,NSP170..N BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-52130B2 |
NHP170,NSP170..Q DK.BROWN,TRIM0# |
1 | ||
| 79013-52130B3 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79013-52120B2 |
NHP170,NSP170..N BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79013-52120A1 |
NHP170,NSP170..N FROMAGE/DK.BROWN,TRIM0# |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-52040 |
NSP170 |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-52020 |
NHP170,NSP170 |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-52040 |
NHP170,NSP170 |
1 | ||
| 79937 - COVER, REAR SEAT LEG, NO.2 | ||||
| 79937-52040C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 79937A - COVER, REAR SEAT LEG, NO.2 | ||||
| 79926-52020C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79951 - COVER, NO.1 SEAT CUSHION | ||||
| 79951-52010C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79076-52071C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956-52090C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79076-52070C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79076-52071C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956-52090C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79076-52070C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-52100C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-52260C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79959A - COVER, REAR SEAT LEG, RH | ||||
| 79959-52310C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79965 - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-52060C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79965B - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-52070C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79968D - COVER, REAR SEAT LEG SIDE, NO.5, RH | ||||
| 79955-52040C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79977 - FELT, SEAT BACK | ||||
| 79977-52200 |
NHP170,NSP170 |
2 | ||
| Common parts | ||||
| 62217-13010 | ||||
| 71769-47020 | ||||
| 72702-28090 | ||||
| 90105-10436 | ||||
| 90105-10539 | ||||
| 90167-40044 | ||||
| 90176-08044 | ||||
| 90201-09027 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

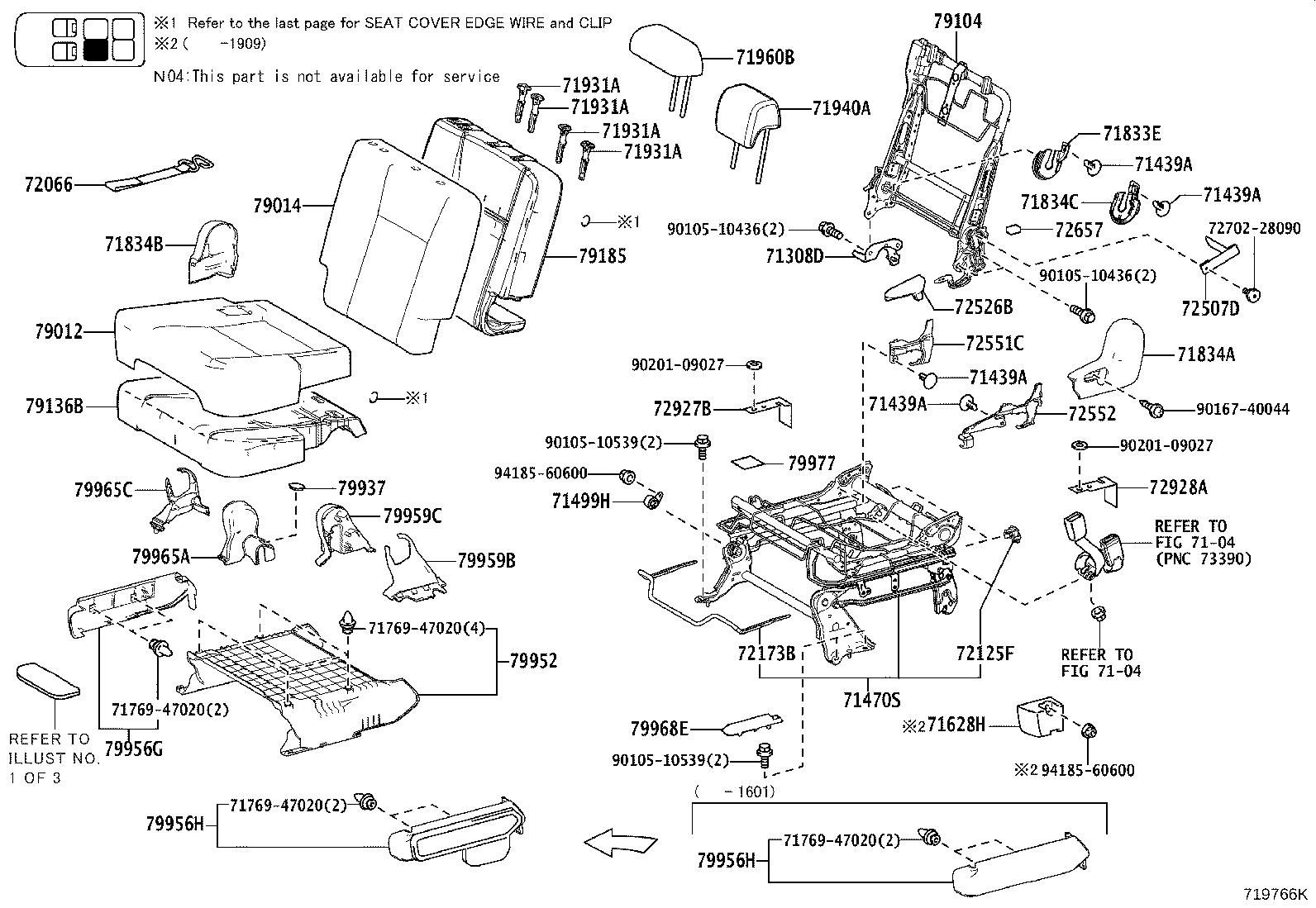

ILLUST NO. 2 OF 3(1506- )07S
REAR NO.1 SEAT LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71308D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH | ||||
| 71308-52100 |
NHP170,NSP170 |
1 | ||
| 71439A - CLIP | ||||
| 67771-26230C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 71439A - CLIP | ||||
| 67771-26230C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 71439A - CLIP | ||||
| 67771-26230C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 71439A - CLIP | ||||
| 67771-26230C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
8 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-52580 |
NHP170,NSP170 |
1 | ||
| 71499H - DAMPER, REAR SEAT BACK SPRING, LH | ||||
| 71499-52070 |
NHP170,NSP170 |
1 | ||
| 71628H - SPACER, REAR SEAT CUSHION, LH | ||||
| 72136-52030 |
NHP170,NSP170 |
1 | ||
| 71833E - COVER, REAR SEAT RECLINING, NO.3 RH | ||||
| 71833-52190C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-52190C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-52180C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71834C - COVER, REAR SEAT RECLINING, NO.3 LH | ||||
| 71834-52170C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-44020C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-4402021 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-44020C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-4402021 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-44020C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-4402021 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-44020C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-4402021 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52G40B2 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
2 | ||
| 71940-52G30B0 |
NHP170,NSP170..N DK.GRAY,TRIM2# |
2 | ||
| 71940-52G40E0 |
NHP170,NSP170..Q DK.BROWN,TRIM0# |
2 | ||
| 71940-52G30E1 |
NHP170,NSP170..N FROMAGE/DK.BROWN,TRIM0# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52A30E0 |
NHP170,NSP170..Q DK.BROWN,TRIM0# |
1 | ||
| 71960-52A20E1 |
NHP170,NSP170..N FROMAGE/DK.BROWN,TRIM0# |
1 | ||
| 71960-52A30B2 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71960-52A20B0 |
NHP170,NSP170..N DK.GRAY,TRIM2# |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72065-28171C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72125F - COVER, SEAT TRACK, UPPER REAR LH | ||||
| 72125-52020 |
NHP170,NSP170 |
2 | ||
| 71848-52120 |
NHP170,NSP170 |
2 | ||
| 72173B - HANDLE, REAR SEAT TRACK ADJUSTING, LH | ||||
| 72173-52030 |
NHP170,NSP170 |
1 | ||
| 72507D - HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE | ||||
| 72507-52030C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-52080C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72551C - COVER, RECLINING HINGE, NO.2 | ||||
| 72551-52100C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72552 - COVER, RECLINING HINGE, NO.2 | ||||
| 72552-52100C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72657 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD | ||||
| 72657-28010 |
NHP170,NSP170 |
2 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72907-52010 |
NHP170,NSP170 |
1 | ||
| 72928A - COVER, REAR SEAT CUSHION UNDER, NO.2 | ||||
| 72908-52010 |
NHP170,NSP170 |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-52070B2 |
NHP170,NSP170..Q DK.BROWN/DK.GRAY,TRIM0# |
1 | ||
| 79012-52060B3 |
NHP170,NSP170..N BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79012-52060B2 |
NHP170,NSP170..N FROMAGE/DK.GRAY,TRIM0# |
1 | ||
| 79012-52070B3 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-52060B2 |
NHP170,NSP170..N BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79014-52070B2 |
NHP170,NSP170..Q DK.BROWN,TRIM0# |
1 | ||
| 79014-52060A1 |
NHP170,NSP170..N FROMAGE/DK.BROWN,TRIM0# |
1 | ||
| 79014-52070B3 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79104-52020 |
NHP170,NSP170 |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-52020 |
NHP170,NSP170 |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-52020 |
NHP170,NSP170 |
1 | ||
| 79937 - COVER, REAR SEAT LEG, NO.2 | ||||
| 79937-52040C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 79952 - COVER, NO.2 SEAT CUSHION | ||||
| 79951-52030C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956G - COVER, NO.3 SEAT LEG SIDE, RH | ||||
| 79956-52120C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956H - COVER, NO.3 SEAT LEG SIDE, LH | ||||
| 79076-52080C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956-52130C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79076-52081C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956H - COVER, NO.3 SEAT LEG SIDE, LH | ||||
| 79076-52080C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956-52130C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79076-52081C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79959B - COVER, REAR SEAT LEG, LH | ||||
| 79959-52280C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79959C - COVER, REAR SEAT LEG | ||||
| 79959-52270C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79965A - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-52140C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79965C - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-52130C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79968E - COVER, REAR SEAT LEG SIDE, NO.5, LH | ||||
| 79956-52030C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79977 - FELT, SEAT BACK | ||||
| 79977-52200 |
NHP170,NSP170 |
2 | ||
| Common parts | ||||
| 71769-47020 | ||||
| 72702-28090 | ||||
| 90105-10436 | ||||
| 90105-10539 | ||||
| 90167-40044 | ||||
| 90201-09027 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

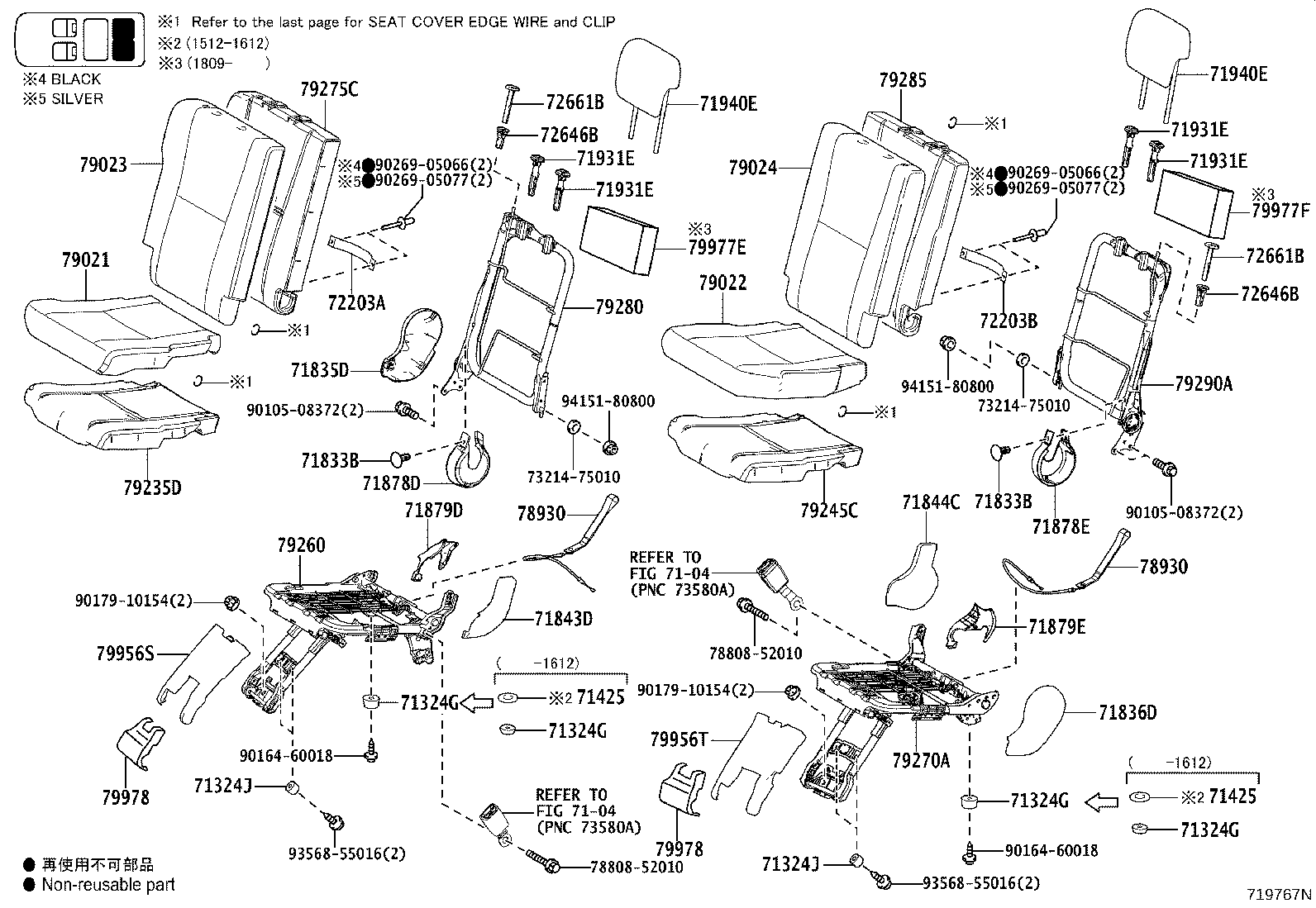

ILLUST NO. 3 OF 3(1506- )07S
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324G - CUSHION, REAR NO.2 SEAT | ||||
| 71324-52020 |
NHP170,NSP170 |
2 | ||
| 71324-52070 |
NHP170,NSP170 |
2 | ||
| 71324G - CUSHION, REAR NO.2 SEAT | ||||
| 71324-52020 |
NHP170,NSP170 |
2 | ||
| 71324-52070 |
NHP170,NSP170 |
2 | ||
| 71324G - CUSHION, REAR NO.2 SEAT | ||||
| 71324-52020 |
NHP170,NSP170 |
2 | ||
| 71324-52070 |
NHP170,NSP170 |
2 | ||
| 71324G - CUSHION, REAR NO.2 SEAT | ||||
| 71324-52020 |
NHP170,NSP170 |
2 | ||
| 71324-52070 |
NHP170,NSP170 |
2 | ||
| 71324J - CUSHION, REAR SEAT | ||||
| 71324-52030 |
NHP170,NSP170 |
4 | ||
| 71324J - CUSHION, REAR SEAT | ||||
| 71324-52030 |
NHP170,NSP170 |
4 | ||
| 71425 - PATCH, REAR SEAT LEG | ||||
| 71425-52010 |
NHP170,NSP170 |
2 | ||
| 71425 - PATCH, REAR SEAT LEG | ||||
| 71425-52010 |
NHP170,NSP170 |
2 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 67771-26230C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 67771-26230C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 67771-26230C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 67771-26230C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 71835D - COVER, REAR SEAT RECLINING, LOWER RH | ||||
| 71833-52220C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71834-52200C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-52050C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-52050C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71878D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-52170C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71878E - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-52180C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71879D - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-52190C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71879E - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-52180C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71930-44020C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-4402021 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C8 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71930-44020C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-4402021 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C8 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71930-44020C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-4402021 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C8 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71930-44020C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-4402021 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C8 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71940-52G10E1 |
NHP170,NSP170..N FROMAGE/DK.BROWN,TRIM0# |
2 | ||
| 71940-52G20E0 |
NHP170,NSP170..Q DK.BROWN,TRIM0# |
2 | ||
| 71940-52G10B1 |
NHP170,NSP170..N DK.GRAY,TRIM2# |
2 | ||
| 71940-52G20B1 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
2 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71940-52G10E1 |
NHP170,NSP170..N FROMAGE/DK.BROWN,TRIM0# |
2 | ||
| 71940-52G20E0 |
NHP170,NSP170..Q DK.BROWN,TRIM0# |
2 | ||
| 71940-52G10B1 |
NHP170,NSP170..N DK.GRAY,TRIM2# |
2 | ||
| 71940-52G20B1 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
2 | ||
| 72203A - HANDLE SUB-ASSY, REAR SEAT TRACK, RH | ||||
| 72203-52030C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72203B - HANDLE SUB-ASSY, REAR SEAT TRACK, LH | ||||
| 72203-52030C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-52060C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-52060C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 72661B - LEVER, REAR SEAT BACK ROD CONTROL, OUTER | ||||
| 72661-52070C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 72661B - LEVER, REAR SEAT BACK ROD CONTROL, OUTER | ||||
| 72661-52070C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 78930 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3 | ||||
| 78910-52030C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 78930 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3 | ||||
| 78910-52030C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-52110B2 |
NHP170,NSP170..N FROMAGE/DK.GRAY,TRIM0# |
1 | ||
| 79021-52120B3 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79021-52120B2 |
NHP170,NSP170..Q DK.BROWN/DK.GRAY,TRIM0# |
1 | ||
| 79021-52110B3 |
NHP170,NSP170..N BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-52120B3 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79022-52120B2 |
NHP170,NSP170..Q DK.BROWN/DK.GRAY,TRIM0# |
1 | ||
| 79022-52110B3 |
NHP170,NSP170..N BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79022-52110B2 |
NHP170,NSP170..N FROMAGE/DK.GRAY,TRIM0# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-52060E0 |
NHP170,NSP170..Q DK.BROWN/GRAY,TRIM0# |
1 | ||
| 79023-52070C0 |
NHP170,NSP170..N BLUE BLACK/GRAY,TRIM2# |
1 | ||
| 79023-52070A0 |
NHP170,NSP170..N FROMAGE/GRAY,TRIM0# |
1 | ||
| 79023-52060C0 |
NHP170,NSP170..Q BLUE BLACK/GRAY,TRIM2# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-52060C0 |
NHP170,NSP170..Q BLUE BLACK/GRAY,TRIM2# |
1 | ||
| 79024-52060E0 |
NHP170,NSP170..Q DK.BROWN/GRAY,TRIM0# |
1 | ||
| 79024-52070A0 |
NHP170,NSP170..N FROMAGE/GRAY,TRIM0# |
1 | ||
| 79024-52070C0 |
NHP170,NSP170..N BLUE BLACK/GRAY,TRIM2# |
1 | ||
| 79235D - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-52030 |
NHP170,NSP170 |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79245-52030 |
NHP170,NSP170 |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 79260-52040 |
NHP170,NSP170 |
1 | ||
| 79270A - SPRING ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79270-52040 |
NHP170,NSP170 |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79275-52020 |
NHP170,NSP170 |
1 | ||
| 79280 - SPRING ASSY, NO.2 SEAT BACK | ||||
| 79280-52030 |
NHP170,NSP170 |
1 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79285-52020 |
NHP170,NSP170 |
1 | ||
| 79290A - SPRING ASSY, NO.2 SEAT BACK, LH | ||||
| 79290-52030 |
NHP170,NSP170 |
1 | ||
| 79956S - COVER, REAR SEAT LEG SIDE | ||||
| 79959-52240C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956T - COVER, REAR SEAT LEG SIDE | ||||
| 79959-52250C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 79978 - COVER, REAR SEAT LEG GARNISH, NO.1 | ||||
| 79978-52010C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| 79978 - COVER, REAR SEAT LEG GARNISH, NO.1 | ||||
| 79978-52010C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
2 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 78808-52010 | ||||
| 90105-08372 | ||||
| 90164-60018 | ||||
| 90179-10154 | ||||
| 90269-05066 | ||||
| 90269-05077 | ||||
| 93568-55016 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1506- )

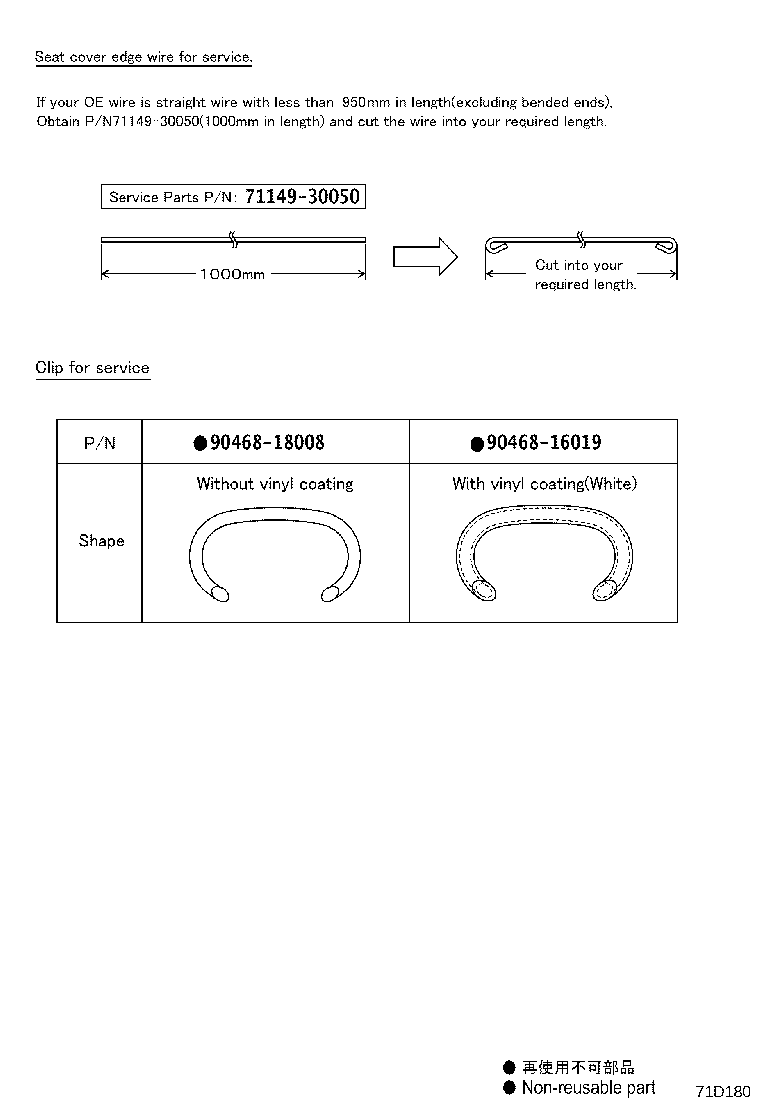

SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
