NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
(1506- )

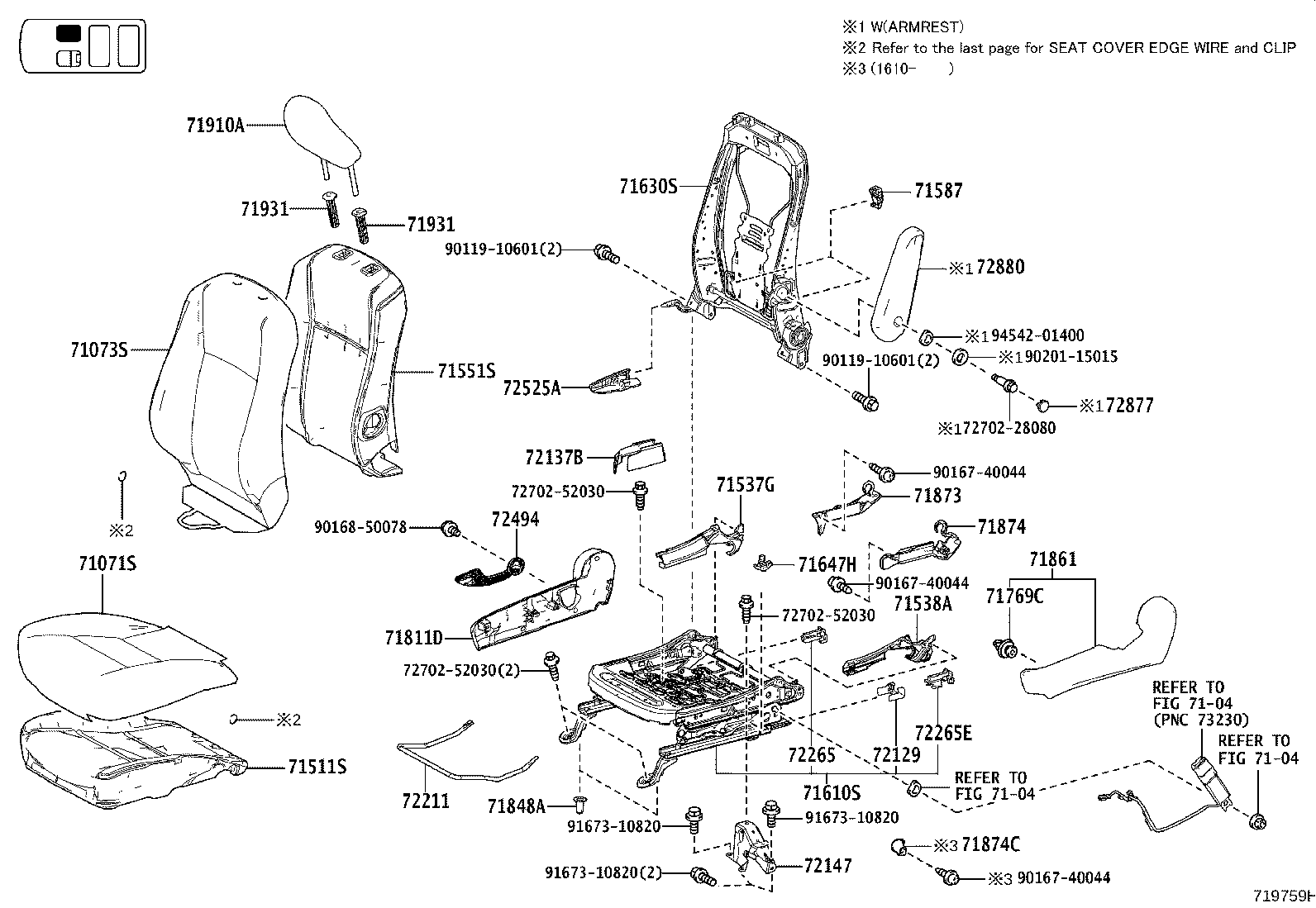

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-52P10B0 |
NHP170,NSP170..Q DK.BROWN/DK.GRAY,TRIM0# |
1 | ||
| 71071-52M90B0 |
NHP170,NSP170..N FROMAGE/DK.GRAY,TRIM0# |
1 | ||
| 71071-52M90B1 |
NHP170,NSP170..N BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71071-52P10B1 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-52R50A0 |
NHP170,NSP170..N FROMAGE/DK.BROWN,TRIM0# |
1 | ||
| 71073-52R50C0 |
NHP170,NSP170..N BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71073-52Y70C0 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71073-52Y70E0 |
NHP170,NSP170..Q DK.BROWN,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-52740 |
NHP170,NSP170 |
1 | ||
| 71511-52870 |
NHP170,NSP170 |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-52150C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-52090C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-52D50 |
NHP170,NSP170..N |
1 | ||
| 71551-52D30 |
NHP170,NSP170..Q |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52040 |
NHP170,NSP170 |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52300 |
NHP170,NSP170 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52680 |
NHP170,NSP170..Q |
1 | ||
| 71630-52730 |
NHP170,NSP170..N |
1 | ||
| 71769C - CLIP, FRONT SEAT CUSHION COVER | ||||
| 71769-47020 |
NHP170,NSP170 |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52440C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-48050 |
NHP170,NSP170 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52330C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
NHP170,NSP170 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
NHP170,NSP170 |
1 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-68020 |
NHP170,NSP170 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52E90C1 |
NHP170,NSP170..N BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71910-52A50C1 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71910-52A50E0 |
NHP170,NSP170..Q DK.BROWN,TRIM0# |
1 | ||
| 71910-52E90A0 |
NHP170,NSP170..N FROMAGE/DK.BROWN,TRIM0# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030C4 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-47050C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931-47030C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-47050C5 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030C4 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-47050C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931-47030C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-47050C5 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52180 |
NHP170,NSP170 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-52160C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52180 |
NHP170,NSP170 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
NHP170,NSP170 |
1 | ||
| 72211-52220 |
NHP170,NSP170 |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-52030 |
NHP170,NSP170 |
1 | ||
| 72265E - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-52040 |
NHP170,NSP170 |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-68010C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72494-68011C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C1 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72525-47010C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 71877-68010C0 |
NHP170,NSP170..Q BLACK,TRIM0#,2# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72810-52180B0 |
NHP170,NSP170..Q DK.GRAY,TRIM2# |
1 | ||
| 72810-52180E1 |
NHP170,NSP170..Q DK.BROWN,TRIM0# |
1 | ||
| Common parts | ||||
| 72702-28080 | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90201-15015 | ||||
| 91673-10820 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1506- )

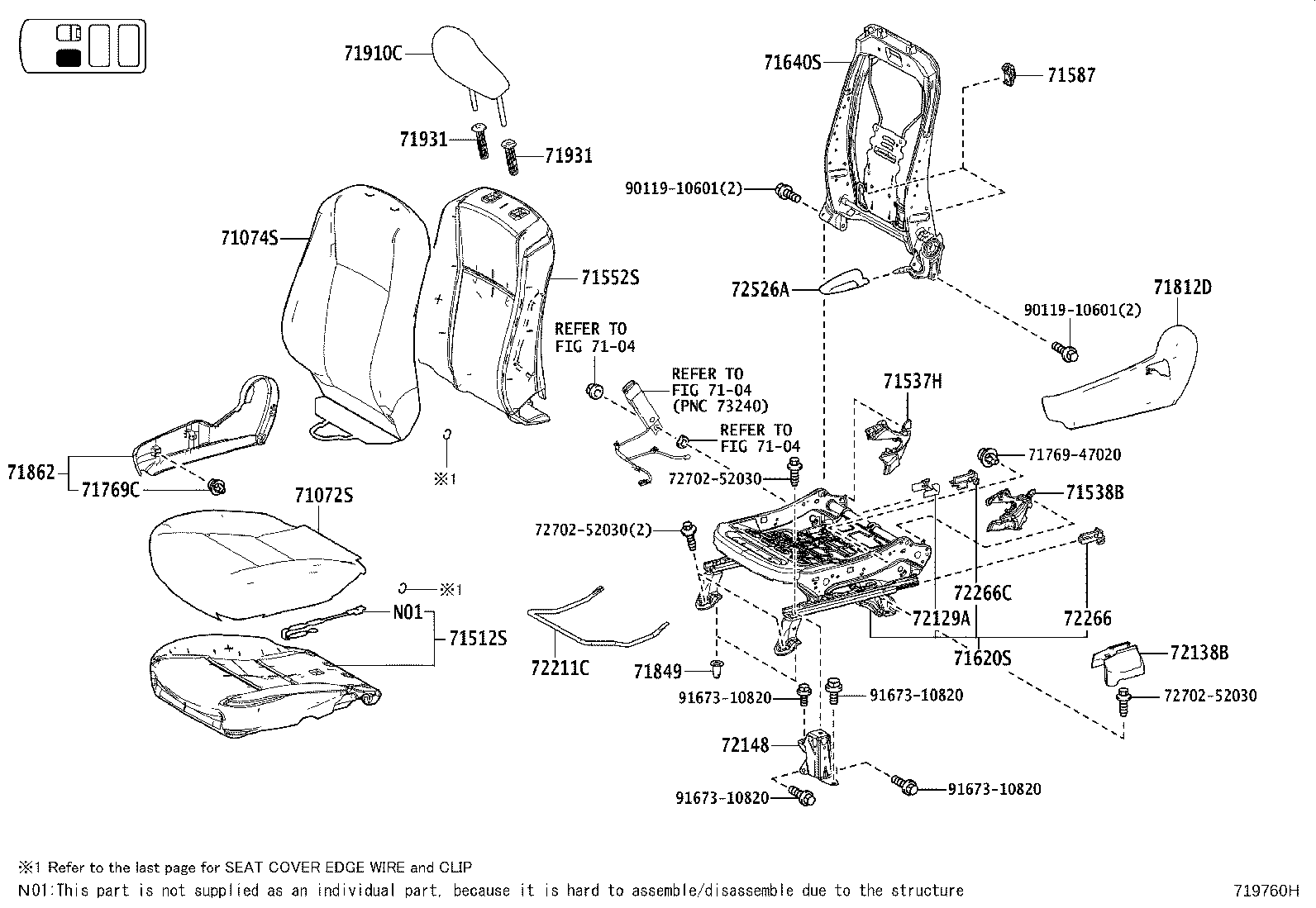

PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-52P20B0 |
NHP170,NSP170..Q DK.BROWN/DK.GRAY,TRIM0# |
1 | ||
| 71072-52P20B1 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71072-52N80B1 |
NHP170,NSP170..N BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71072-52N80B0 |
NHP170,NSP170..N FROMAGE/DK.GRAY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-52T20C0 |
NHP170,NSP170..N BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71074-52T20A0 |
NHP170,NSP170..N FROMAGE/DK.BROWN,TRIM0# |
1 | ||
| 71074-52T60C0 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71074-52T60E0 |
NHP170,NSP170..Q DK.BROWN,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-52210 |
NHP170,NSP170 |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-42020C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-42020C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-52A70 |
NHP170,NSP170 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52040 |
NHP170,NSP170 |
4 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52320 |
NHP170,NSP170 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52430 |
NHP170,NSP170 |
1 | ||
| 71769C - CLIP, FRONT SEAT CUSHION COVER | ||||
| 71769-47020 |
NHP170,NSP170 |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52430C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-48050 |
NHP170,NSP170 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52250C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 71910C - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52A50E0 |
NHP170,NSP170..Q DK.BROWN,TRIM0# |
1 | ||
| 71910-52E90A0 |
NHP170,NSP170..N FROMAGE/DK.BROWN,TRIM0# |
1 | ||
| 71910-52E90C1 |
NHP170,NSP170..N BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71910-52A50C1 |
NHP170,NSP170..Q BLUE BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030C4 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-47050C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931-47030C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-47050C5 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030C4 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-47050C0 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931-47030C0 |
NHP170,NSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-47050C5 |
NHP170,NSP170 W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52180 |
NHP170,NSP170 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-52130C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52170 |
NSP170 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52220 |
NHP170,NSP170 |
1 | ||
| 72211-47020 |
NHP170,NSP170 |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-52030 |
NHP170,NSP170 |
1 | ||
| 72266C - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-52040 |
NHP170,NSP170 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-52040C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 71769-47020 | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1506- )

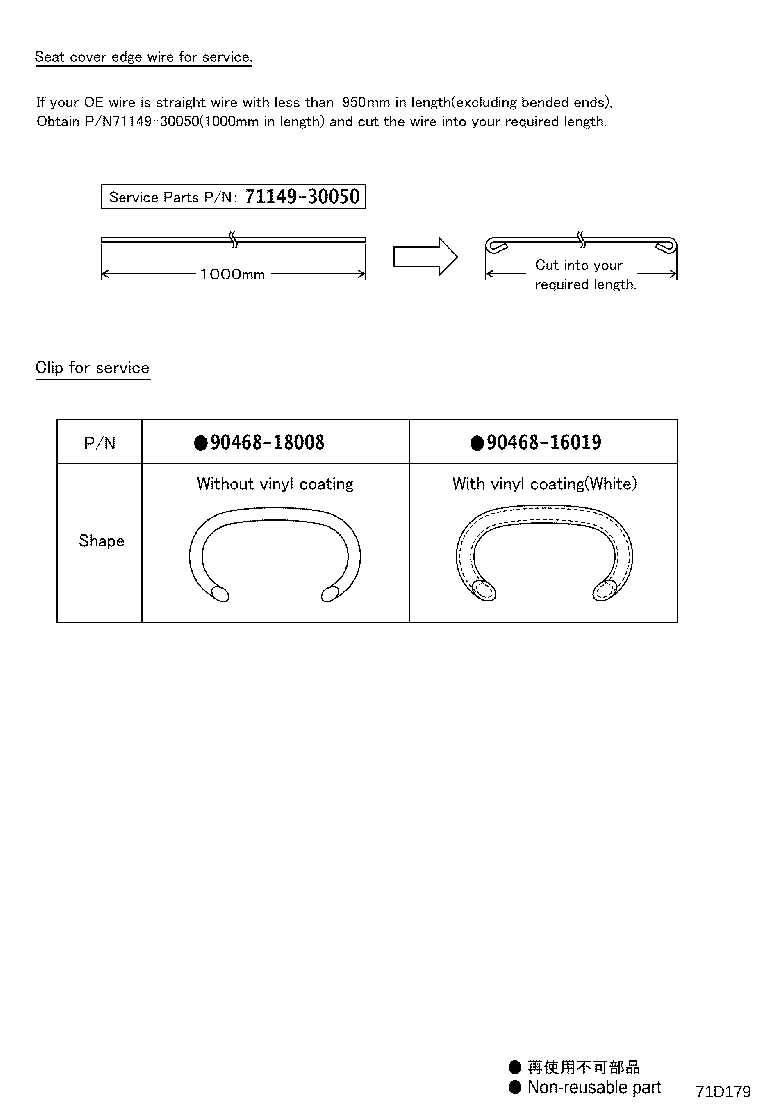

SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
