NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

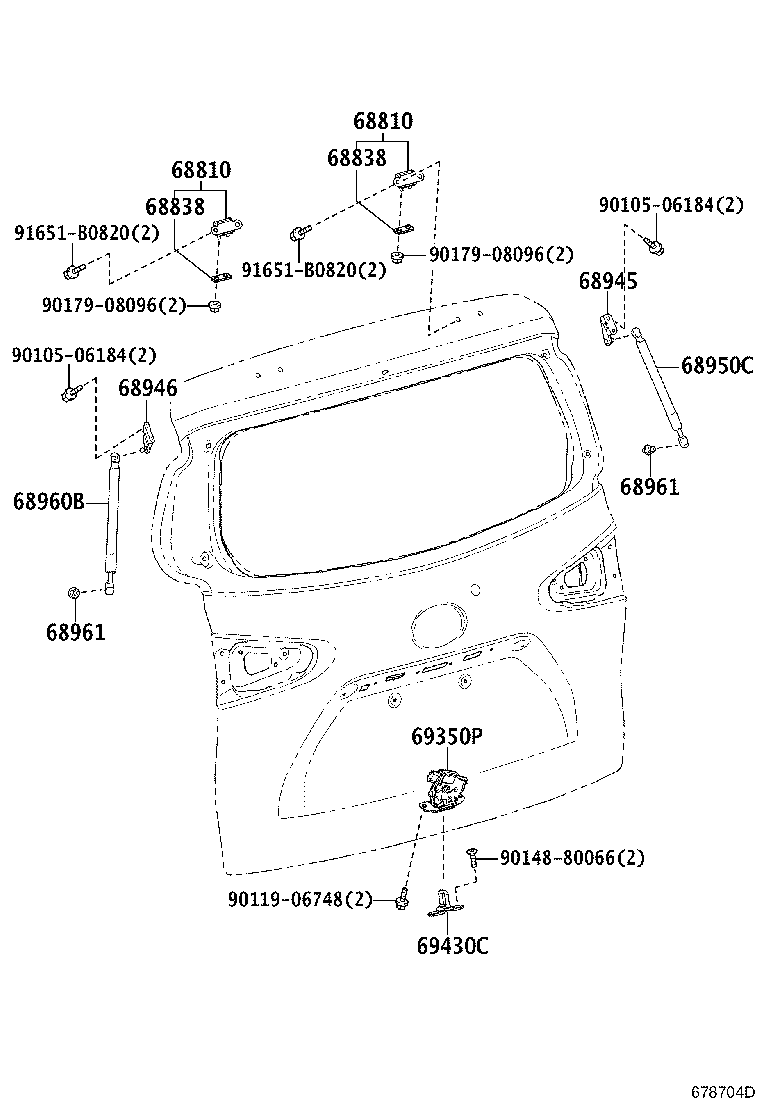

Click highlighted areas on diagram

diagram 68810 68810 68838 68838 68945 68946 68950C 68960B 68961 68961 69350P 69430C 9010506184 9010506184 9011906748 9014880066 9017908096 9017908096 91651B0820 91651B0820
Part # Description Qty Price
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-52130

NHP170,NSP170

 2
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-52130

NHP170,NSP170

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-47020

NHP170,NSP170

T=1.5

 2
68838-47010

NHP170,NSP170

T=1.0

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-47020

NHP170,NSP170

T=1.5

 2
68838-47010

NHP170,NSP170

T=1.0

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-52120

NHP170,NSP170

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-52080

NHP170,NSP170

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-0W840

NHP170,NSP170

OE PART

 1
68950-0WB30

NHP170,NSP170

*518

 1
68960B - STAY ASSY, BACK DOOR, LH
68960-0W840

NHP170,NSP170

OE PART

 1
68960-0WB30

NHP170,NSP170

*518

 1
68961 - BOLT, BACK DOOR STAY
68961-52020

NHP170,NSP170

 2
68961 - BOLT, BACK DOOR STAY
68961-52020

NHP170,NSP170

 2
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-52401

NHP170,NSP170

 1
69350-52391

NHP170,NSP170

 1
69350-52400

NHP170,NSP170

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-52050

NHP170,NSP170

 1
Common parts
90105-06184
90119-06748
90148-80066
90179-08096
91651-B0820
