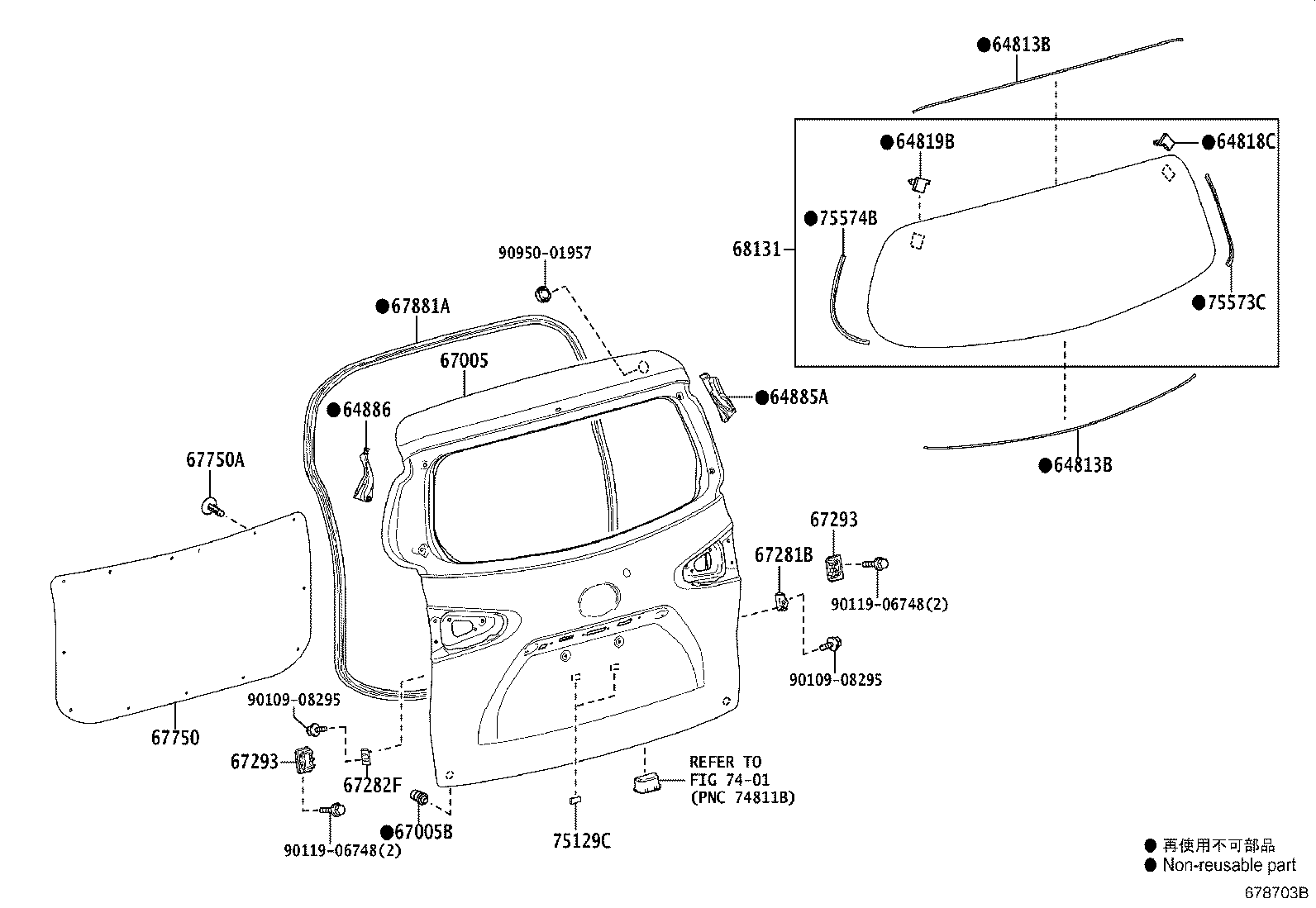

Toyota Sienta (jpp) NSP170 BACK DOOR PANEL & GLASS

Part #	Description	Period	Qty
64813B - DAM, BACK WINDOW GLASS ADHESIVE
56117-64010	NHP170,NSP170	06/2015 - 09/2018	2
64813B - DAM, BACK WINDOW GLASS ADHESIVE
56117-64010	NHP170,NSP170	06/2015 - 09/2018	2
64818C - SPACER, BACK WINDOW GLASS, NO.1
64818-52060	NHP170,NSP170	06/2015 - 09/2018	1
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-52080	NHP170,NSP170	06/2015 - 09/2018	1
64885A - CHANNEL, BACK WINDOW GLASS, RH
64885-52050	NHP170,NSP170	06/2015 - 09/2018	1
64886 - CHANNEL, BACK WINDOW GLASS, LH
64886-52050	NHP170,NSP170	06/2015 - 09/2018	1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-52E50	NHP170,NSP170	06/2015 - 09/2018	1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09142	NHP170,NSP170	06/2015 - 09/2018	2
67281B - STOPPER, BACK DOOR, LOWER
67281-52010	NHP170,NSP170	06/2015 - 09/2018	1
67282F - STOPPER, BACK DOOR, LWR LH
67281-52010	NHP170,NSP170	06/2015 - 09/2018	1
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-52040	NHP170,NSP170	06/2015 - 09/2018	2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-52040	NHP170,NSP170	06/2015 - 09/2018	2
67750 - BOARD ASSY, BACK DOOR TRIM
67750-52100C0	NHP170,NSP170 FLOOR CARPET,TRIM0#,2#	06/2015 - 09/2018	1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-08186C3	NHP170,NSP170 BLACK,TRIM0#,2#	10/2016 - 09/2018	13
90467-08186C0	NHP170,NSP170 BLACK,TRIM0#,2#	06/2015 - 10/2016	13
67881A - WEATHERSTRIP, BACK DOOR
67881-52220	NHP170,NSP170	06/2015 - 09/2018	1
68131 - GLASS, BACK DOOR
68105-52660	NHP170,NSP170	06/2015 - 09/2018	1
75129C - CUSHION, REAR LICENCE PLATE
75129-30010	NHP170,NSP170	06/2015 - 09/2018	2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-52250	NHP170,NSP170	06/2015 - 09/2018	1
75574B - MOULDING, BACK WINDOW, OUTSIDE LH
75574-52100	NHP170,NSP170	06/2015 - 09/2018	1
Common parts
90109-08295
90119-06748
90950-01957
Linked diagrams
7401

NSP170R-MWXQB (2015)

(1506- )
