NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

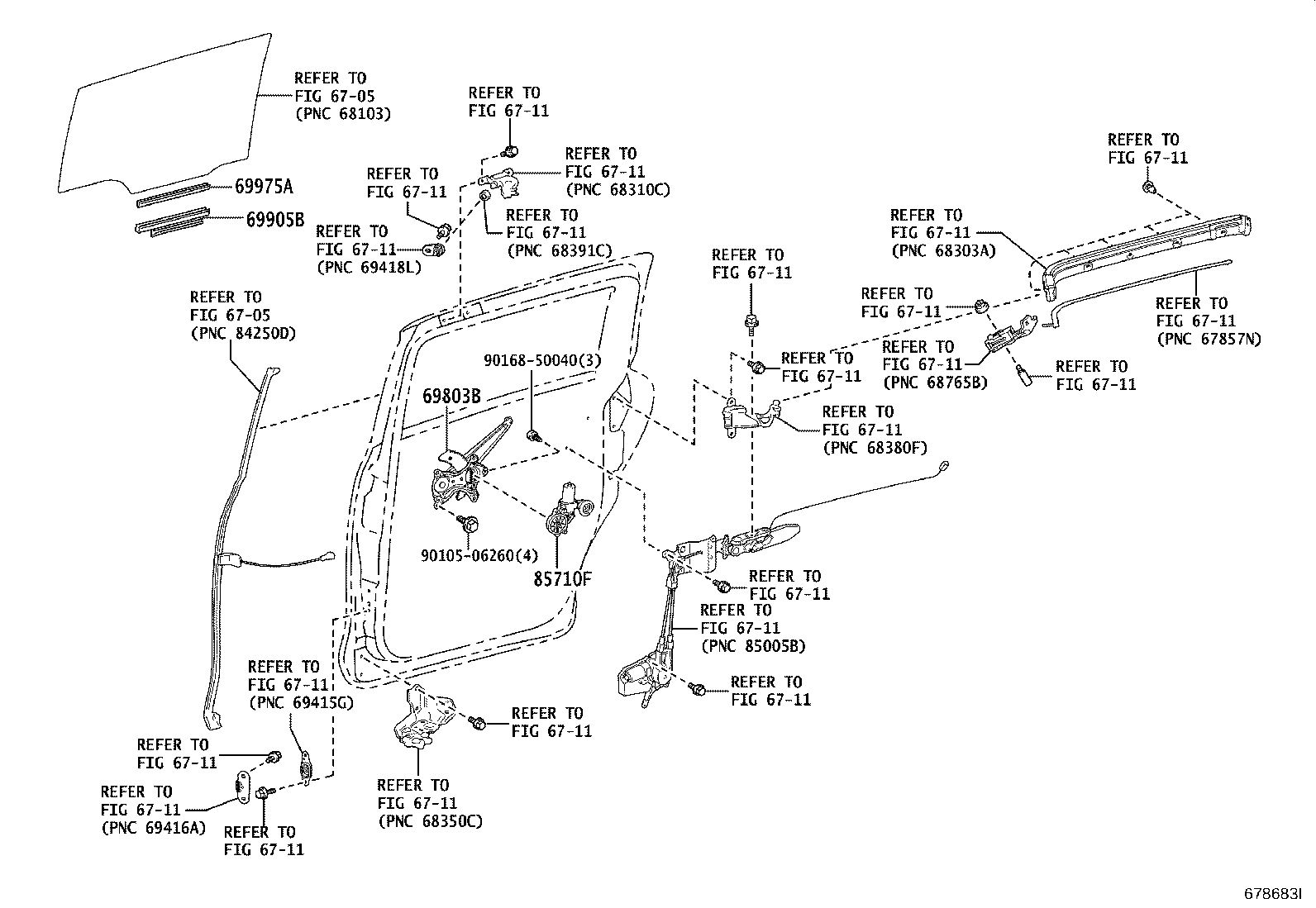

Click highlighted areas on diagram

RH

diagram 6705 6705 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 69803B 69905B 69975A 85710F 9010506260 9016850040
Part # Description Qty Price
69803B - REGULATOR SUB-ASSY, SLIDE DOOR WINDOW, RH
69803-52130

NHP170,NSP170

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-52060

NHP170,NSP170

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-52010

NHP170,NSP170

 2
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-52210

NHP170,NSP170

 1
85720-52211

NHP170,NSP170

 1
Common parts
90105-06260
90168-50040
Linked diagrams
6705
6711

(1508- )

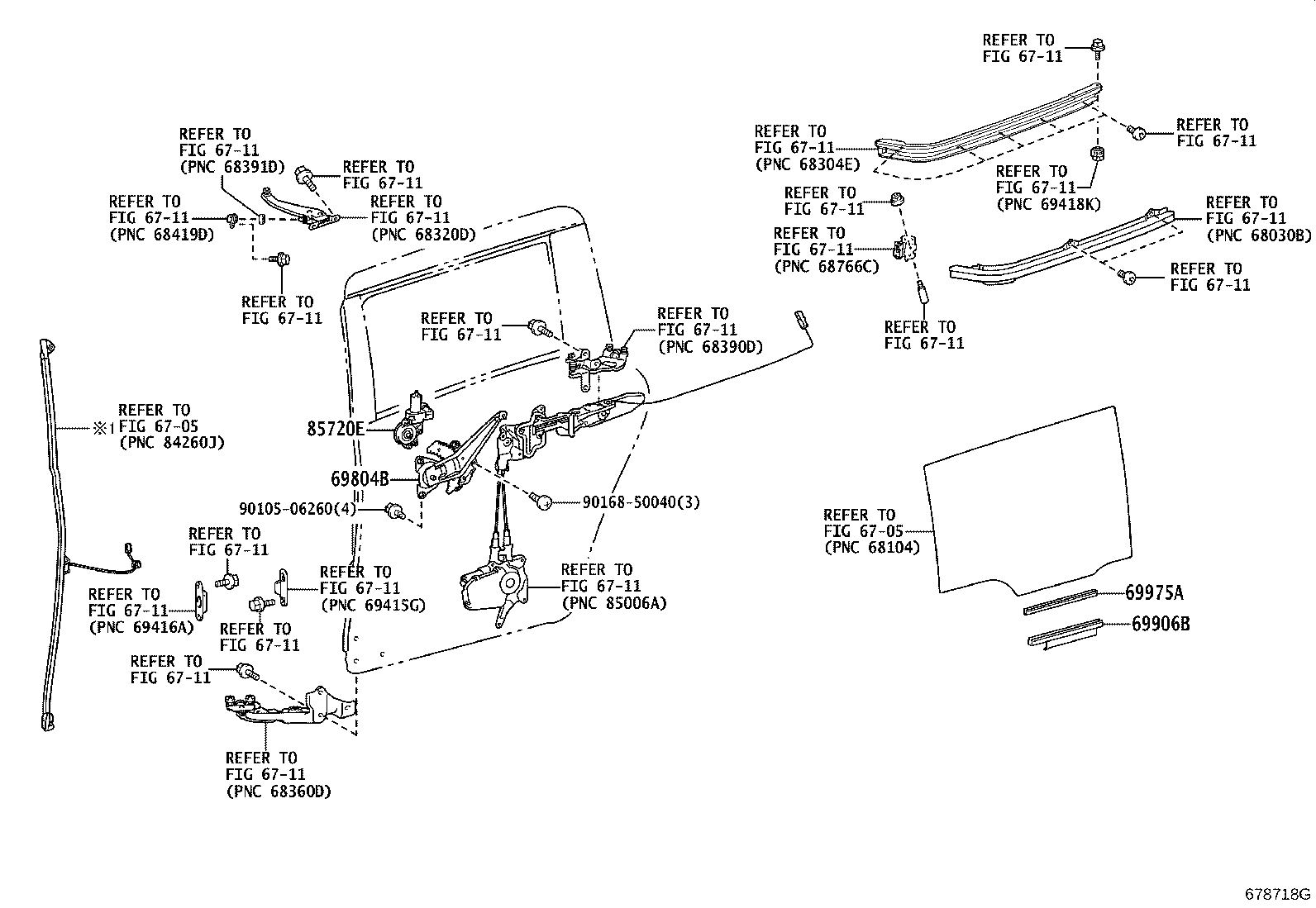

Click highlighted areas on diagram

LH

diagram 6705 6705 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 69804B 69906B 69975A 85720E 9010506260 9016850040
Part # Description Qty Price
69804B - REGULATOR SUB-ASSY, SLIDE DOOR WINDOW, LH
69804-52140

NHP170,NSP170

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-52060

NHP170,NSP170

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-52010

NHP170,NSP170

 2
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-52240

NHP170,NSP170

 1
85710-52241

NHP170,NSP170

 1
Common parts
90105-06260
90168-50040
Linked diagrams
6705
6711
