NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68397 - COVER, SLIDE DOOR LOWER ROLLER, RH | ||||
| 68397-52020 |
NHP170,NSP170 |
1 | ||
| 68397-52010 |
NHP170,NSP170 |
1 | ||
| 68398 - COVER, SLIDE DOOR LOWER ROLLER, LH | ||||
| 68398-52010 |
NHP170,NSP170 |
1 | ||
| 68398-52020 |
NHP170,NSP170 |
1 | ||
| 69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH | ||||
| 69050-52300 |
NHP170,NSP170 |
1 | ||
| 69050-52280 |
NHP170,NSP170 |
1 | ||
| 69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH | ||||
| 69050-52300 |
NHP170,NSP170 |
1 | ||
| 69050-52280 |
NHP170,NSP170 |
1 | ||
| 69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH | ||||
| 69060-52320 |
NHP170,NSP170 |
1 | ||
| 69060-52310 |
NHP170,NSP170 |
1 | ||
| 69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH | ||||
| 69060-52320 |
NHP170,NSP170 |
1 | ||
| 69060-52310 |
NHP170,NSP170 |
1 | ||
| 69070 - HANDLE ASSY, SLIDE DOOR, INSIDE, RH | ||||
| 69070-28181C0 |
NHP170,NSP170..Q BLACK,TRIM0#,2# |
1 | ||
| 69070-28180C0 |
NHP170,NSP170..Q BLACK,TRIM0#,2# |
1 | ||
| 69070-28190C0 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 69070-28191C0 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH | ||||
| 69080-28181C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 69080-28180C0 |
NHP170,NSP170 BLACK,TRIM0#,2# |
1 | ||
| 69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69180-52040 |
NHP170,NSP170 |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-52130 |
NHP170,NSP170 |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-52160 |
NHP170,NSP170 |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69217-52040L5 |
NHP170,NSP170..N VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69217-52040B0 |
NHP170,NSP170..N SILVER ME.,1F7 |
1 | ||
| 69217-52040X0 |
NHP170,NSP170..N RED M.M.,3T8 |
1 | ||
| 69217-52040A1 |
NHP170,NSP170..N WHITE PEARL CS.,070 |
1 | ||
| 69217-52040F7 |
NHP170,NSP170..N AIR YELLOW,5B6 |
1 | ||
| 69217-52040C0 |
NHP170,NSP170..N BLACK MC.,209 |
1 | ||
| 69217-52040J7 |
NHP170,NSP170..N BLUE ME.,8T7 |
1 | ||
| 69227-28080B0 |
NHP170,NSP170..Q SILVER ME.,1F7 |
1 | ||
| 69227-28080D2 |
NHP170,NSP170..Q RED M.M.,3T8 |
1 | ||
| 69217-52040G4 |
NHP170,NSP170..N GREEN M.M.,6W8 |
1 | ||
| 69227-28080E3 |
NHP170,NSP170..Q VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69227-28080C3 |
NHP170,NSP170..Q BLACK MC.,209 |
1 | ||
| 69227-28080G1 |
NHP170,NSP170..Q GREEN M.M.,6W8 |
1 | ||
| 69227-28080F2 |
NHP170,NSP170..Q AIR YELLOW,5B6 |
1 | ||
| 69227-28080J0 |
NHP170,NSP170..Q BLUE ME.,8T7 |
1 | ||
| 69227-28080A0 |
NHP170,NSP170..Q WHITE PEARL CS.,070 |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69217-52040L5 |
NHP170,NSP170..N VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69217-52040B0 |
NHP170,NSP170..N SILVER ME.,1F7 |
1 | ||
| 69217-52040X0 |
NHP170,NSP170..N RED M.M.,3T8 |
1 | ||
| 69217-52040A1 |
NHP170,NSP170..N WHITE PEARL CS.,070 |
1 | ||
| 69217-52040F7 |
NHP170,NSP170..N AIR YELLOW,5B6 |
1 | ||
| 69217-52040C0 |
NHP170,NSP170..N BLACK MC.,209 |
1 | ||
| 69217-52040J7 |
NHP170,NSP170..N BLUE ME.,8T7 |
1 | ||
| 69227-28080B0 |
NHP170,NSP170..Q SILVER ME.,1F7 |
1 | ||
| 69227-28080D2 |
NHP170,NSP170..Q RED M.M.,3T8 |
1 | ||
| 69217-52040G4 |
NHP170,NSP170..N GREEN M.M.,6W8 |
1 | ||
| 69227-28080E3 |
NHP170,NSP170..Q VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69227-28080C3 |
NHP170,NSP170..Q BLACK MC.,209 |
1 | ||
| 69227-28080G1 |
NHP170,NSP170..Q GREEN M.M.,6W8 |
1 | ||
| 69227-28080F2 |
NHP170,NSP170..Q AIR YELLOW,5B6 |
1 | ||
| 69227-28080J0 |
NHP170,NSP170..Q BLUE ME.,8T7 |
1 | ||
| 69227-28080A0 |
NHP170,NSP170..Q WHITE PEARL CS.,070 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69227-28080D2 |
NHP170,NSP170 RED M.M.,3T8 |
1 | ||
| 69227-28080A0 |
NHP170,NSP170 WHITE PEARL CS.,070 |
1 | ||
| 69227-28080G1 |
NHP170,NSP170 GREEN M.M.,6W8 |
1 | ||
| 69227-28080F2 |
NHP170,NSP170 AIR YELLOW,5B6 |
1 | ||
| 69227-28080C3 |
NHP170,NSP170 BLACK MC.,209 |
1 | ||
| 69227-28080J0 |
NHP170,NSP170 BLUE ME.,8T7 |
1 | ||
| 69227-28080B0 |
NHP170,NSP170 SILVER ME.,1F7 |
1 | ||
| 69227-28080E3 |
NHP170,NSP170 VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69230G - HANDLE ASSY, SLIDE DOOR OUTSIDE, RH | ||||
| 69213-28030B0 |
NHP170,NSP170 SILVER ME.,1F7 |
1 | ||
| 69213-28030D2 |
NHP170,NSP170 RED M.M.,3T8 |
1 | ||
| 69213-28030J1 |
NHP170,NSP170 BLUE ME.,8T7 |
1 | ||
| 69213-28030F1 |
NHP170,NSP170 AIR YELLOW,5B6 |
1 | ||
| 69213-28030A0 |
NHP170,NSP170 WHITE PEARL CS.,070 |
1 | ||
| 69213-28030C4 |
NHP170,NSP170 BLACK MC.,209 |
1 | ||
| 69213-28030G1 |
NHP170,NSP170 GREEN M.M.,6W8 |
1 | ||
| 69213-28030E3 |
NHP170,NSP170 VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69240G - HANDLE ASSY, SLIDE DOOR, OUTSIDE LH | ||||
| 69213-28030A0 |
NHP170,NSP170 WHITE PEARL CS.,070 |
1 | ||
| 69213-28030C4 |
NHP170,NSP170 BLACK MC.,209 |
1 | ||
| 69213-28030B0 |
NHP170,NSP170 SILVER ME.,1F7 |
1 | ||
| 69213-28030F1 |
NHP170,NSP170 AIR YELLOW,5B6 |
1 | ||
| 69213-28030D2 |
NHP170,NSP170 RED M.M.,3T8 |
1 | ||
| 69213-28030J1 |
NHP170,NSP170 BLUE ME.,8T7 |
1 | ||
| 69213-28030G1 |
NHP170,NSP170 GREEN M.M.,6W8 |
1 | ||
| 69213-28030E3 |
NHP170,NSP170 VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69242-52030 |
NHP170,NSP170 |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69241-52020 |
NHP170,NSP170 |
2 | ||
| 69293J - SNAP, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69293-28040 |
NHP170,NSP170 |
1 | ||
| 69293K - SNAP, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69293-28030 |
NHP170,NSP170 |
1 | ||
| 69330E - LOCK ASSY, SLIDE DOOR, RH | ||||
| 69200-52030 |
NHP170,NSP170..Q |
1 | ||
| 69200-52041 |
NHP170,NSP170..N |
1 | ||
| 69200-52031 |
NHP170,NSP170..Q |
1 | ||
| 69200-52032 |
NHP170,NSP170..Q |
1 | ||
| 69200-52042 |
NHP170,NSP170..N |
1 | ||
| 69200-52040 |
NHP170,NSP170..N |
1 | ||
| 69340B - LOCK ASSY, SLIDE DOOR, LH | ||||
| 69300-52080 |
NHP170,NSP170 |
1 | ||
| 69300-52082 |
NHP170,NSP170 |
1 | ||
| 69300-52081 |
NHP170,NSP170 |
1 | ||
| 69370B - LOCK ASSY, SLIDE DOOR, FRONT RH | ||||
| 69370-52040 |
NHP170,NSP170 |
1 | ||
| 69380B - LOCK ASSY, SLIDE DOOR, FRONT LH | ||||
| 69380-52080 |
NHP170,NSP170 |
1 | ||
| 69409A - STOPPER SUB-ASSY, SLIDE DOOR HALF OPEN | ||||
| 69409-52030 |
NHP170,NSP170 |
1 | ||
| 69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-52010 |
NHP170,NSP170 |
2 | ||
| 69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER | ||||
| 69470-28120 |
NHP170,NSP170 |
2 | ||
| 69481 - LATCH, SLIDE DOOR OPEN | ||||
| 69481-52030 |
NHP170,NSP170 |
2 | ||
| 69485D - STRIKER, SLIDE DOOR OPEN, RH | ||||
| 69485-52040 |
NHP170,NSP170 |
1 | ||
| 69485-52030 |
NHP170,NSP170 |
1 | ||
| 69485-52041 |
NHP170,NSP170 |
1 | ||
| 69486B - COVER, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69486-46010 |
NHP170,NSP170 |
1 | ||
| 69486E - STRIKER, SLIDE DOOR OPEN, LH | ||||
| 69486-52050 |
NHP170,NSP170 |
1 | ||
| 69486-52060 |
NHP170,NSP170 |
1 | ||
| 69486-52061 |
NHP170,NSP170 |
1 | ||
| 69492 - STOPPER, SLIDE DOOR HALF OPEN | ||||
| 69492-52020 |
NHP170,NSP170 |
1 | ||
| 69736F - GUIDE, SLIDE DOOR LOCKING LINK | ||||
| 69736-52010 |
NHP170,NSP170 |
2 | ||
| 82711B - CLAMP, WIRING HARNESS | ||||
| 82711-16790 |
NHP170,NSP170 NO.1:REFER ILLUST. |
2 | ||
| 82711-1E300 |
NHP170,NSP170 NO.2:REFER ILLUST. |
2 | ||
| 82711B - CLAMP, WIRING HARNESS | ||||
| 82711-16790 |
NHP170,NSP170 NO.1:REFER ILLUST. |
2 | ||
| 82711-1E300 |
NHP170,NSP170 NO.2:REFER ILLUST. |
2 | ||
| Common parts | ||||
| 69237-30010 | ||||
| 69239-30010 | ||||
| 69296-30010 | ||||
| 85618-28010 | ||||
| 90148-50003 | ||||
| 90148-60082 | ||||
| 90148-80028 | ||||
| 90148-80040 | ||||
| 90148-80074 | ||||
| 90179-10186 | ||||
| 91553-80612 | ||||
| 91673-80616 | ||||
| 91673-A0820 | ||||

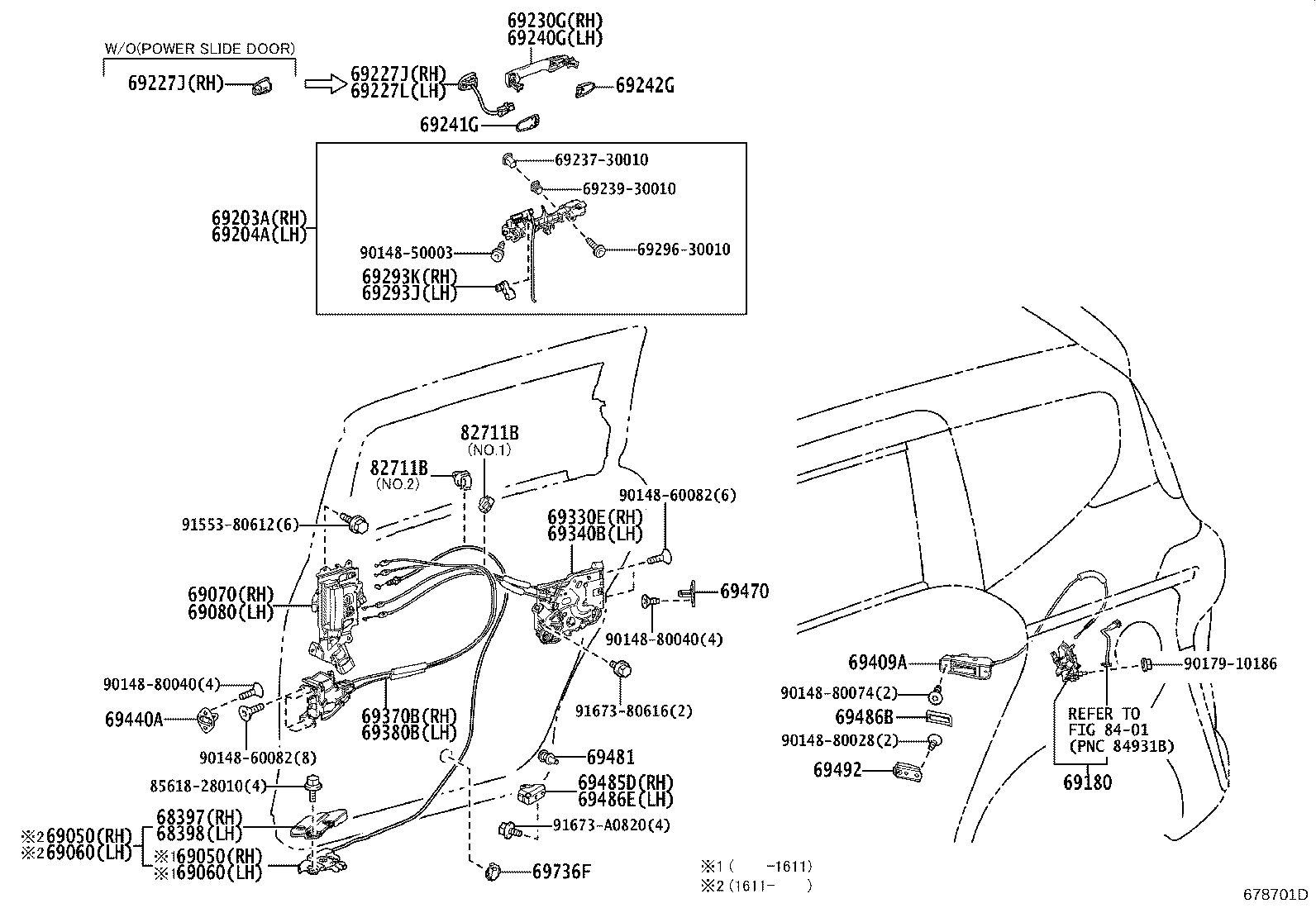

| Linked diagrams | ||||
| 8401 | ||||
