NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)
(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-30A70 |
NHP170,NSP170 |
1 | ||
| 69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH | ||||
| 69035-30010 |
NHP170,NSP170 |
1 | ||
| 69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH | ||||
| 69036-30010 |
NHP170,NSP170 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-30A80 |
NHP170,NSP170 |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-52130 |
NHP170,NSP170 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-52070 |
NHP170,NSP170 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-30210C0 |
NHP170,NSP170..Q BLACK,TRIM0#,2# |
1 | ||
| 69205-28170C0 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 69205-28170C3 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 69205-30210C1 |
NHP170,NSP170..Q BLACK,TRIM0#,2# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-30210C0 |
NHP170,NSP170..Q BLACK,TRIM0#,2# |
1 | ||
| 69206-28150C0 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 69206-28150C3 |
NHP170,NSP170..N BLACK,TRIM0#,2# |
1 | ||
| 69206-30210C1 |
NHP170,NSP170..Q BLACK,TRIM0#,2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-28090B0 |
NHP170,NSP170..Q SILVER ME.,1F7 |
1 | ||
| 69210-28090A0 |
NHP170,NSP170..Q WHITE PEARL CS.,070 |
1 | ||
| 69210-28090F1 |
NHP170,NSP170..Q AIR YELLOW,5B6 |
1 | ||
| 69210-28090J2 |
NHP170,NSP170..Q BLUE ME.,8T7 |
1 | ||
| 69210-28090D3 |
NHP170,NSP170..Q RED M.M.,3T8 |
1 | ||
| 69211-52100C0 |
NHP170,NSP170..N BLACK MC.,209 |
1 | ||
| 69210-28090G1 |
NHP170,NSP170..Q GREEN M.M.,6W8 |
1 | ||
| 69210-28090E6 |
NHP170,NSP170..Q VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69211-52100J5 |
NHP170,NSP170..N BLUE ME.,8T7 |
1 | ||
| 69211-52100A1 |
NHP170,NSP170..N WHITE PEARL CS.,070 |
1 | ||
| 69211-52100G4 |
NHP170,NSP170..N GREEN M.M.,6W8 |
1 | ||
| 69211-52100X0 |
NHP170,NSP170..N RED M.M.,3T8 |
1 | ||
| 69211-52100L4 |
NHP170,NSP170..N VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69210-28090C4 |
NHP170,NSP170..Q BLACK MC.,209 |
1 | ||
| 69211-52100B0 |
NHP170,NSP170..N SILVER ME.,1F7 |
1 | ||
| 69211-52100F7 |
NHP170,NSP170..N AIR YELLOW,5B6 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-52030A1 |
NHP170,NSP170 WHITE PEARL CS.,070 |
1 | ||
| 69217-52030C0 |
NHP170,NSP170 BLACK MC.,209 |
1 | ||
| 69217-52030B0 |
NHP170,NSP170 SILVER ME.,1F7 |
1 | ||
| 69217-52030F7 |
NHP170,NSP170 AIR YELLOW,5B6 |
1 | ||
| 69217-52030L5 |
NHP170,NSP170 VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69217-52030J7 |
NHP170,NSP170 BLUE ME.,8T7 |
1 | ||
| 69217-52030G4 |
NHP170,NSP170 GREEN M.M.,6W8 |
1 | ||
| 69217-52030X0 |
NHP170,NSP170 RED M.M.,3T8 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-52040A1 |
NHP170,NSP170 WHITE PEARL CS.,070 |
1 | ||
| 69217-52040B0 |
NHP170,NSP170 SILVER ME.,1F7 |
1 | ||
| 69217-52040G4 |
NHP170,NSP170 GREEN M.M.,6W8 |
1 | ||
| 69217-52040J7 |
NHP170,NSP170 BLUE ME.,8T7 |
1 | ||
| 69217-52040X0 |
NHP170,NSP170 RED M.M.,3T8 |
1 | ||
| 69217-52040F7 |
NHP170,NSP170 AIR YELLOW,5B6 |
1 | ||
| 69217-52040L5 |
NHP170,NSP170 VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69217-52040C0 |
NHP170,NSP170 BLACK MC.,209 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-28090A0 |
NHP170,NSP170..Q WHITE PEARL CS.,070 |
1 | ||
| 69210-28090C4 |
NHP170,NSP170..Q BLACK MC.,209 |
1 | ||
| 69210-28090B0 |
NHP170,NSP170..Q SILVER ME.,1F7 |
1 | ||
| 69211-52100A1 |
NHP170,NSP170..N WHITE PEARL CS.,070 |
1 | ||
| 69210-28090E6 |
NHP170,NSP170..Q VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69211-52100F7 |
NHP170,NSP170..N AIR YELLOW,5B6 |
1 | ||
| 69210-28090F1 |
NHP170,NSP170..Q AIR YELLOW,5B6 |
1 | ||
| 69211-52100C0 |
NHP170,NSP170..N BLACK MC.,209 |
1 | ||
| 69211-52100X0 |
NHP170,NSP170..N RED M.M.,3T8 |
1 | ||
| 69210-28090D3 |
NHP170,NSP170..Q RED M.M.,3T8 |
1 | ||
| 69210-28090J2 |
NHP170,NSP170..Q BLUE ME.,8T7 |
1 | ||
| 69211-52100B0 |
NHP170,NSP170..N SILVER ME.,1F7 |
1 | ||
| 69211-52100L4 |
NHP170,NSP170..N VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69210-28090G1 |
NHP170,NSP170..Q GREEN M.M.,6W8 |
1 | ||
| 69211-52100G4 |
NHP170,NSP170..N GREEN M.M.,6W8 |
1 | ||
| 69211-52100J5 |
NHP170,NSP170..N BLUE ME.,8T7 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-52020 |
NHP170,NSP170 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-52030 |
NHP170,NSP170 |
2 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
NHP170,NSP170 |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
NHP170,NSP170 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-52250 |
NHP170,NSP170 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-52220 |
NHP170,NSP170 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
NHP170,NSP170 |
2 | ||
| 69395 - BUSH(FOR DOOR OUTSIDE HANDLE) | ||||
| 69239-30010 |
NHP170,NSP170 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-47010 |
NHP170,NSP170 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-52240 |
NHP170,NSP170 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-52240 |
NHP170,NSP170 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-52160 |
NHP170,NSP170 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-52160 |
NHP170,NSP170 |
1 | ||
| Common parts | ||||
| 69237-30010 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
| 90189-05003 | ||||

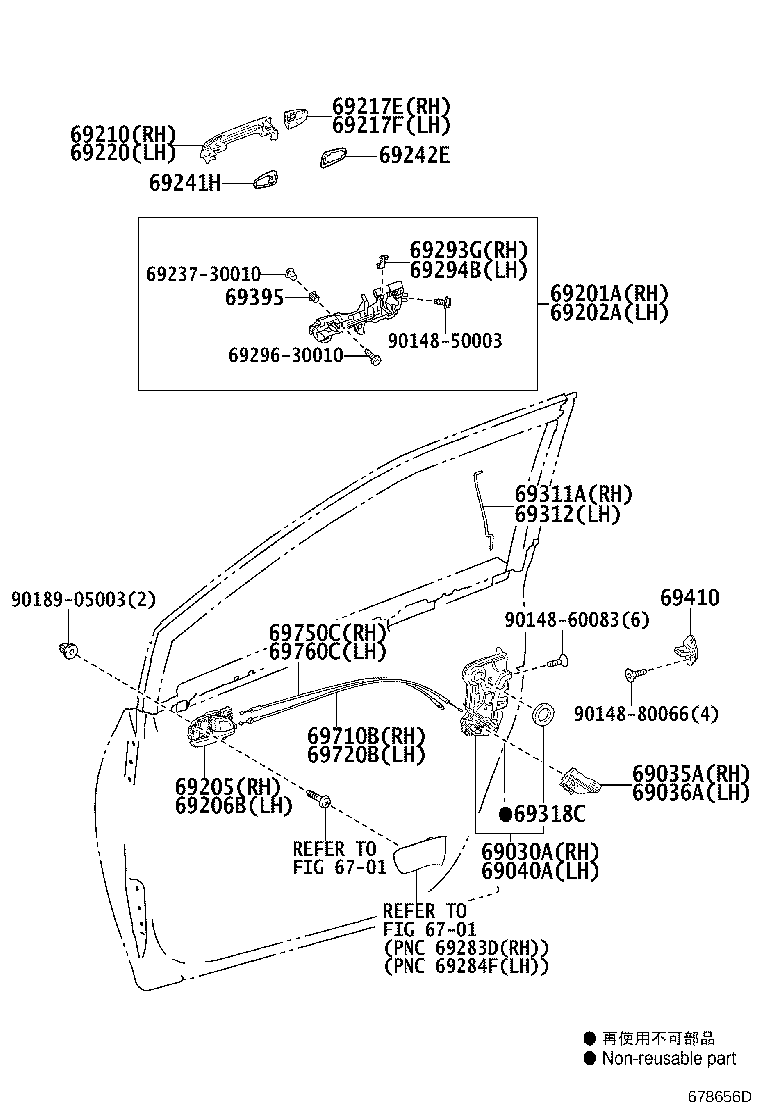

| Linked diagrams | ||||
| 6701 | ||||
