NSP170R-MWXQB (2015)
Toyota Sienta (Jpp)

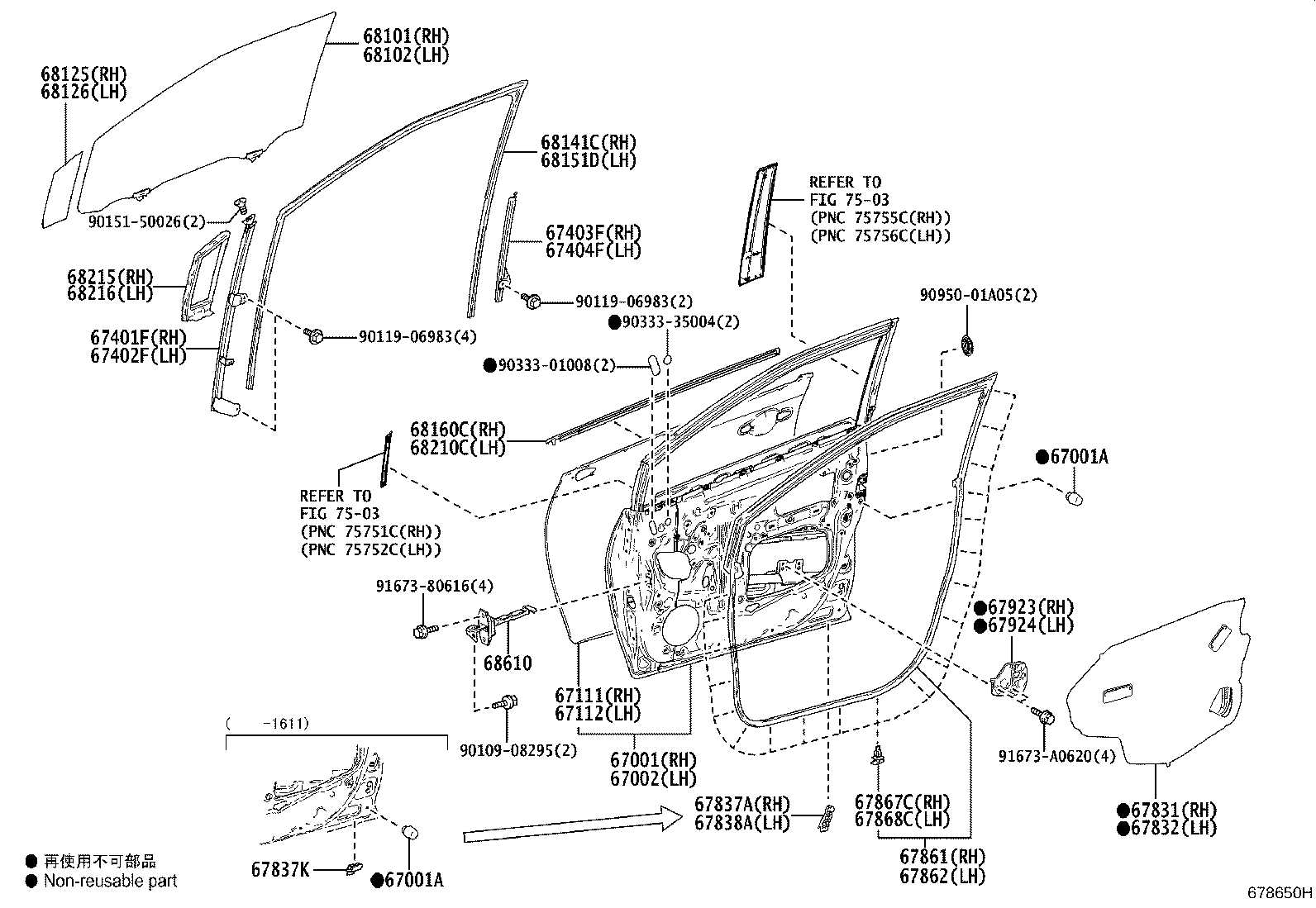

ILLUST NO. 1 OF 2(1506- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-52560 |
NHP170,NSP170 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
NHP170,NSP170 |
2 | ||
| 90541-09124 |
NHP170,NSP170 |
4 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
NHP170,NSP170 |
2 | ||
| 90541-09124 |
NHP170,NSP170 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-52610 |
NHP170,NSP170 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-52280 |
NHP170,NSP170 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-52250 |
NHP170,NSP170 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-52200 |
NHP170,NSP170 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-52190 |
NHP170,NSP170 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-52260 |
NHP170,NSP170 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-52190 |
NHP170,NSP170 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-52470 |
NHP170,NSP170 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-52340 |
NHP170,NSP170 |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-52080 |
NHP170,NSP170 |
1 | ||
| 67837K - SEAL, FRONT DOOR VENT | ||||
| 67837-52070 |
NHP170,NSP170 |
2 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-52010 |
NHP170,NSP170 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-52310 |
NHP170,NSP170 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-52280 |
NHP170,NSP170 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NHP170,NSP170 |
20 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NHP170,NSP170 |
20 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-52230 |
NHP170,NSP170 |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-52240 |
NHP170,NSP170 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-52450 |
NHP170,NSP170 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-52450 |
NHP170,NSP170 |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-52080 |
NHP170,NSP170 |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-52070 |
NHP170,NSP170 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-52290 |
NHP170,NSP170 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-52260 |
NHP170,NSP170 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-52230 |
NHP170,NSP170 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-52220 |
NHP170,NSP170 |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-52070 |
NHP170,NSP170 |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-52060 |
NHP170,NSP170 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-52150 |
NHP170,NSP170 |
2 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90333-01008 | ||||
| 90333-35004 | ||||
| 90950-01A05 | ||||
| 91673-80616 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 7503 | ||||

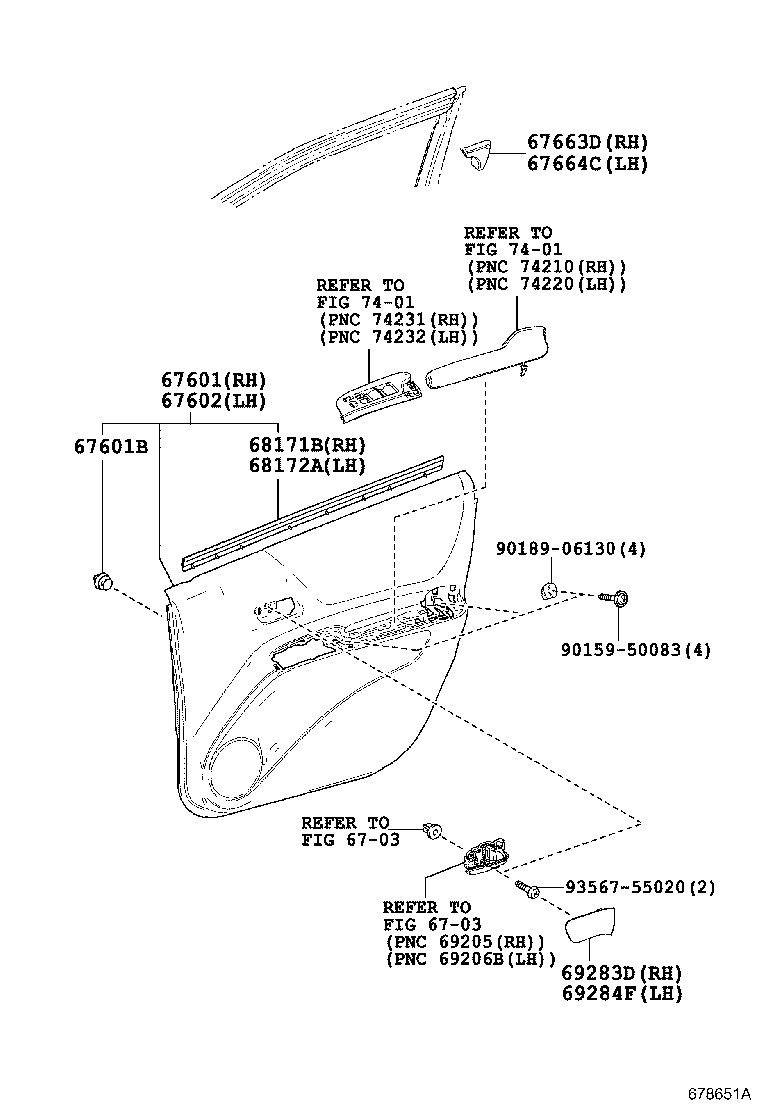

ILLUST NO. 2 OF 2(1506- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-5CE70C0 |
NHP170,NSP170 BLACK/FROMAGE,TRIM0# |
1 | ||
| 67610-5CE70C1 |
NHP170,NSP170 BLACK/BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
NHP170,NSP170 |
18 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-5CD90C0 |
NHP170,NSP170 BLACK/FROMAGE,TRIM0# |
1 | ||
| 67620-5CD90C1 |
NHP170,NSP170 BLACK/BLACK,TRIM2# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-52010 |
NHP170,NSP170 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-52040 |
NHP170,NSP170 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-52280 |
NHP170,NSP170 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-52230 |
NHP170,NSP170 |
1 | ||
| 69283D - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30060C2 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 69283-30060A2 |
NHP170,NSP170 FROMAGE,TRIM0# |
1 | ||
| 69283-30060C1 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 69284F - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30060C2 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 69284-30060C1 |
NHP170,NSP170 BLACK,TRIM2# |
1 | ||
| 69284-30060A2 |
NHP170,NSP170 FROMAGE,TRIM0# |
1 | ||
| Common parts | ||||
| 90159-50083 | ||||
| 90189-06130 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
