NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )NSP170..07S

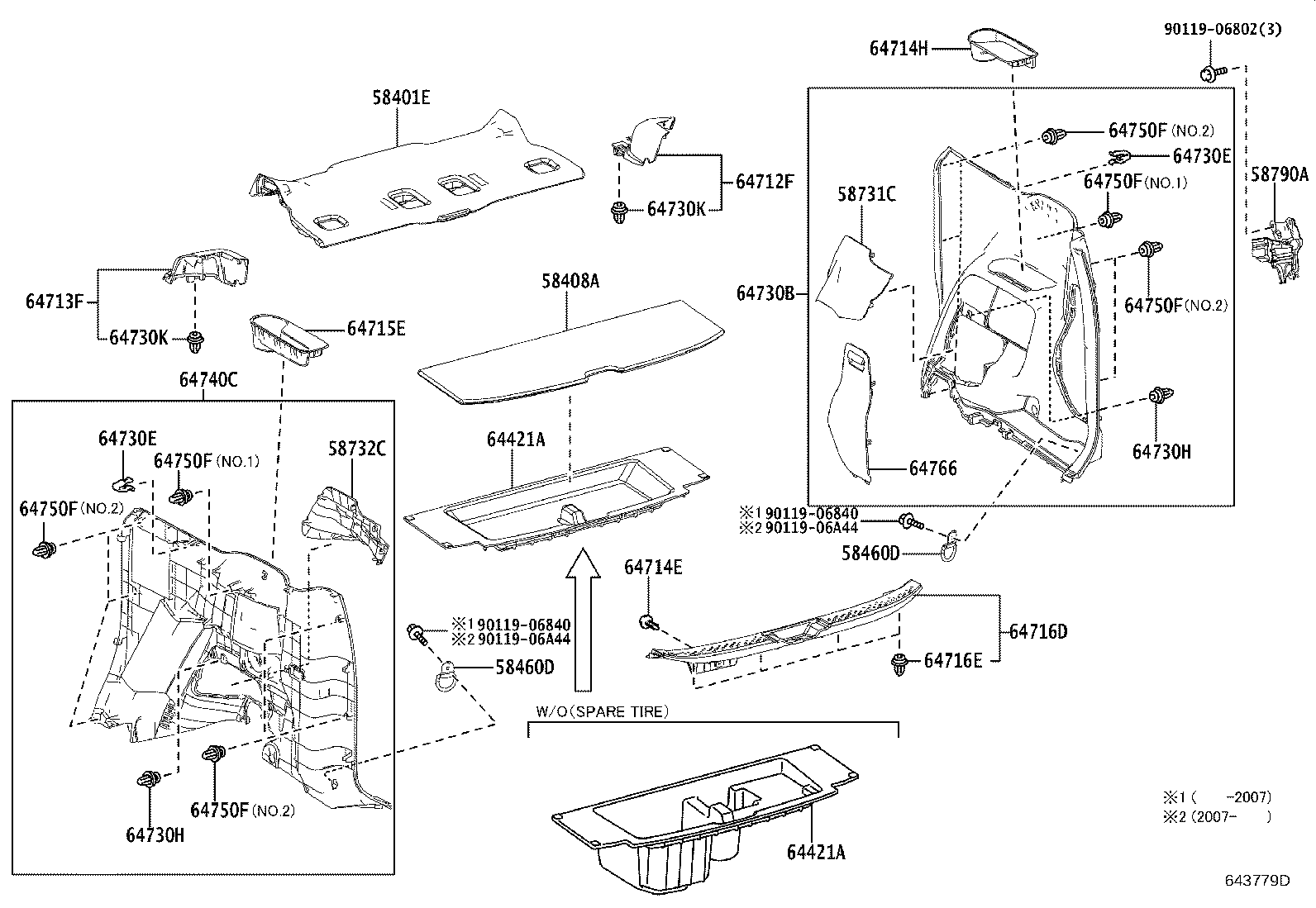

Click highlighted areas on diagram

diagram 58401E 58408A 58460D 58460D 58731C 58732C 58790A 64421A 64421A 64712F 64713F 64714E 64714H 64715E 64716D 64716E 64730B 64730E 64730E 64730H 64730H 64730K 64730K 64740C 64750F 64750F 64750F 64750F 64750F 64750F 64766 9011906802 9011906840 9011906840 9011906A44 9011906A44
Part # Description Qty Price
58401E - BOARD SUB-ASSY, DECK
58401-52081C1

NHP170,NSP170

BLACK,TRIM0#,2#

 1
58401-52080C1

NHP170,NSP170

BLACK,TRIM0#,2#

 1
58408A - BOARD SUB-ASSY, DECK, NO.2
58408-52060C1

NSP170

BLACK,TRIM0#,2#

 1
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

NHP170,NSP170

 2
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

NHP170,NSP170

 2
58731C - CAP, REAR ABSORBER
58731-52060C0

NHP170,NSP170

BLACK,TRIM2#

 1
58731-52060A0

NHP170,NSP170

FROMAGE,TRIM0#

 1
58732C - CAP, REAR ABSORBER
58732-52040A0

NHP170,NSP170

FROMAGE,TRIM0#

 1
58732-52040C0

NHP170,NSP170

BLACK,TRIM2#

 1
58790A - CARRIER ASSY, JACK
58790-52070

NHP170,NSP170

 1
64421A - TRAY, LUGGAGE COMPARTMENT
64421-52080

NSP170

 1
64421-52090

NSP170

SPARE TIRE-T105/70D16

 1
64421A - TRAY, LUGGAGE COMPARTMENT
64421-52080

NSP170

 1
64421-52090

NSP170

SPARE TIRE-T105/70D16

 1
64712F - COVER, DECK SIDE TRIM, FRONT RH
64712-52050C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
64713F - COVER, DECK SIDE TRIM, FRONT LH
64713-52110C0

NHP170,NSP170

BLACK,TRIM0#,2#

 1
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-05164C0

NHP170,NSP170

BLACK

 1
90467-05164C7

NHP170,NSP170

BLACK

 1
64714H - COVER, DECK SIDE TRIM, NO.1
64714-52270C0

NHP170,NSP170

BLACK,TRIM2#

 1
64714-52270A0

NHP170,NSP170

FROMAGE,TRIM0#

 1
64715E - COVER, DECK SIDE TRIM, NO.2
64715-52310C0

NHP170,NSP170

BLACK,TRIM2#

 1
64715-52310A0

NHP170,NSP170

FROMAGE,TRIM0#

 1
64716D - COVER, DECK TRIM, REAR
64716-52180C0

NHP170,NSP170

BLACK,TRIM2#

 1
64716-52180A0

NHP170,NSP170

FROMAGE,TRIM0#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-10161

NHP170,NSP170

 4
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-52520C0

NHP170,NSP170

BLACK,TRIM2#

 1
64730-52520A0

NHP170,NSP170

FROMAGE,TRIM0#

 1
64730E - CLIP(FOR DECK TRIM SIDE BOARD)
90467-08227

NHP170,NSP170

 2
64730E - CLIP(FOR DECK TRIM SIDE BOARD)
90467-08227

NHP170,NSP170

 2
64730H - CLIP(FOR DECK TRIM SIDE PANEL)
90467-09232

NHP170,NSP170

 2
64730H - CLIP(FOR DECK TRIM SIDE PANEL)
90467-09232

NHP170,NSP170

 2
64730K - CLIP(FOR DECK SIDE TRIM PANEL)
90467-09206

NHP170,NSP170

 2
64730K - CLIP(FOR DECK SIDE TRIM PANEL)
90467-09206

NHP170,NSP170

 2
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-52680C0

NHP170,NSP170

BLACK,TRIM2#

 1
64740-52680A0

NHP170,NSP170

FROMAGE,TRIM0#

 1
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10188

NHP170,NSP170

NO.1:REFER ILLUST.

 2
90467-10161

NHP170,NSP170

NO.2:REFER ILLUST.

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10188

NHP170,NSP170

NO.1:REFER ILLUST.

 2
90467-10161

NHP170,NSP170

NO.2:REFER ILLUST.

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10188

NHP170,NSP170

NO.1:REFER ILLUST.

 2
90467-10161

NHP170,NSP170

NO.2:REFER ILLUST.

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10188

NHP170,NSP170

NO.1:REFER ILLUST.

 2
90467-10161

NHP170,NSP170

NO.2:REFER ILLUST.

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10188

NHP170,NSP170

NO.1:REFER ILLUST.

 2
90467-10161

NHP170,NSP170

NO.2:REFER ILLUST.

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10188

NHP170,NSP170

NO.1:REFER ILLUST.

 2
90467-10161

NHP170,NSP170

NO.2:REFER ILLUST.

 10
64766 - COVER SUB-ASSY, QUARTER TRIM JACK
64766-52030C0

NHP170,NSP170

BLACK,TRIM2#

 1
64766-52030A0

NHP170,NSP170

FROMAGE,TRIM0#

 1
Common parts
90119-06802
90119-06840
90119-06A44
