NSP170R-MWXQB (2015)

Toyota Sienta (Jpp)

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

Click highlighted areas on diagram

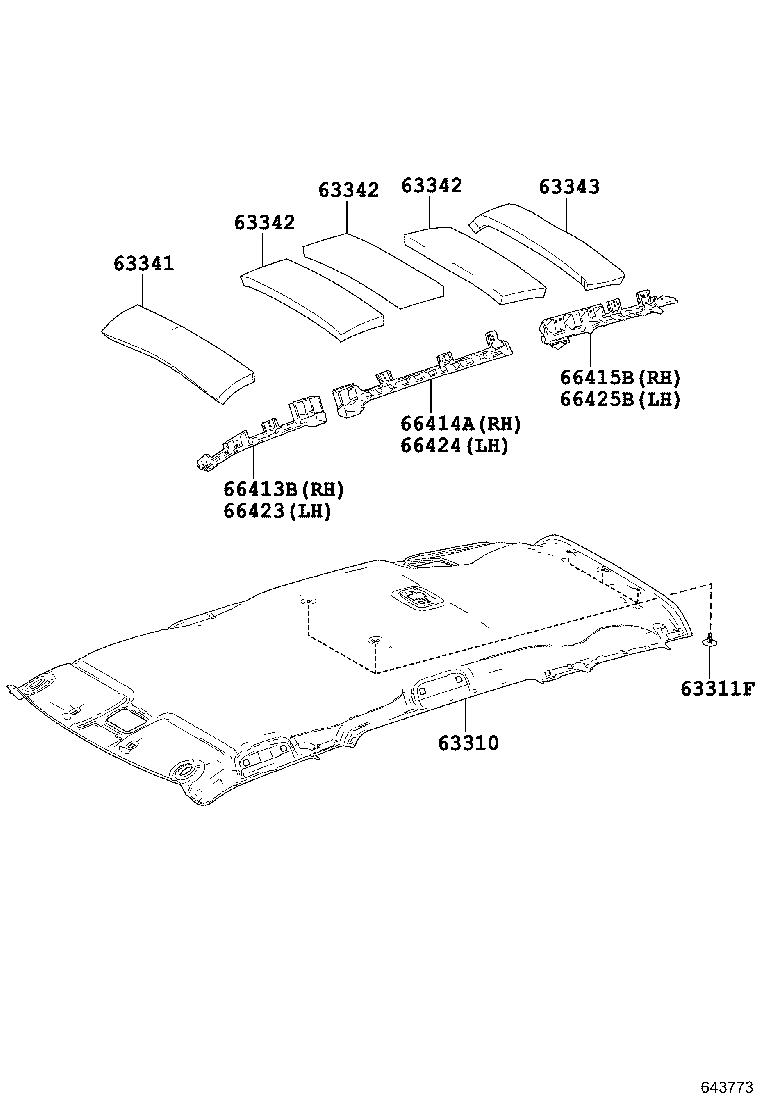

diagram 63310 63311F 63341 63342 63342 63342 63343 66413B 66414A 66415B 66423 66424 66425B
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-52M30B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 1
63311F - CLIP, ROOF HEADLINING, NO.1
90467-05164B0

NHP170,NSP170

LT.GRAY,TRIM0#,2#

 5
63341 - PAD, ROOF SILENCER, NO.1
63341-52370

NHP170,NSP170

 1
63342 - PAD, ROOF SILENCER, NO.2
63343-52120

NHP170,NSP170

 3
63342 - PAD, ROOF SILENCER, NO.2
63343-52120

NHP170,NSP170

 3
63342 - PAD, ROOF SILENCER, NO.2
63343-52120

NHP170,NSP170

 3
63343 - PAD, ROOF SILENCER, NO.3
63341-52370

NHP170,NSP170

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-52330

NHP170,NSP170

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52320

NHP170,NSP170

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-52130

NHP170,NSP170

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-52310

NHP170,NSP170

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52310

NHP170,NSP170

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-52130

NHP170,NSP170

 1
